Corrosive Oil and Highly Corrosive Solution Applications

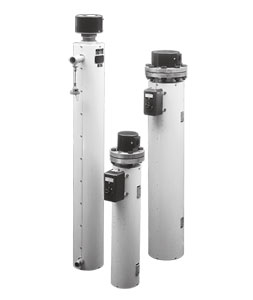

NWHOIS Series
Click for
larger image
.
kW
Volts
Ckt &
Phase
Dimensions (In.)
Model No.
Wt.
(Lbs.)
A
B
C
Series 03 — 3 inch, 150 lb 304 passivated stainless steel vessel, 3 INCOLOY elements
(15 W/In2) with side mounted thermostat (60 to 250°F) — 1" NPT pipe inlet and outlet
2
240
1-3
32 15/16
22 1/2
16 1/2
NWHOIS-03-002P-E1/240
70
2
480
1-3
32 15/16
22 1/2
16 1/2
NWHOIS-03-002P-E1/480
70
4
240
1-3
42 15/16
32 1/2
26 1/2
NWHOIS-03-004P-E1/240
80
4
480
1-3
42 15/16
32 1/2
26 1/2
NWHOIS-03-004P-E1/480
80
6
240
1-3
55 7/16
45
39
NWHOIS-03-006P-E1/240
98
6
480
1-3
55 7/16
45
39
NWHOIS-03-006P-E1/480
98
Series 06 — 5 inch, 150 lb 304 passivated stainless steel vessel, 6 INCOLOY elements
(15 W/In2) with side mounted thermostat (60 to 250°F) — 2" NPT pipe inlet and outlet
8
240
1-3
41 3/4
30
11 3/8
NWHOISR-06-008P-E1/240
140
8
480
1-3
41 3/4
30
11 3/8
NWHOISR-06-008P-E1/480
140
12
240
1-3
60 1/4
48 1/2
20 5/8
NWHOISR-06-012P-E1/240
176
12
480
1-3
60 1/4
48 1/2
20 5/8
NWHOISR-06-012P-E1/480
176
Series 06 — 5 inch, 150 lb 304 passivated stainless steel vessel, 6 INCOLOY elements
(23 W/In2) with side mounted thermostat (60 to 250°F) — 2" NPT pipe inlet and outlet
25
240
2-3
73 5/8
61 7/8
27 5/16
NWHOIS-06-025P-E1/240
176
25
480
1-3
73 5/8
61 7/8
27 5/16
NWHOIS-06-025P-E1/480
176
30
240
2-3
86 5/8
74 7/8
33 7/8
NWHOIS-06-030P-E1/240
240
30
480
1-3
86 5/8
74 7/8
33 7/8
NWHOIS-06-030P-E1/480
240
Please consult with Temperature Engineering if you need help selecting a heater
or to verify part number validity or availability!
To Order
(Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
Part Number
Availability
Price(RMB)
Description
Qty.
NWHOIS-03-002P-E4/240V/3P
8 Weeks
¥97,375.00
Heater, 2 kW, 240 V,3-phase
qty.
NWHOIS-03-006P-E1/240V/3P
8 Weeks
¥131,255.00
Heater, 6 kW, 240 V,3-phase
qty.
†
Price are shown in RMB.
Note:
Refer to the Controls section for side mounted controls or control panels.
