Linear Response Thermistor Probes with 10-foot Cable terminated in 3 stripped leads, Various Applications and Styles
OL-700 Series

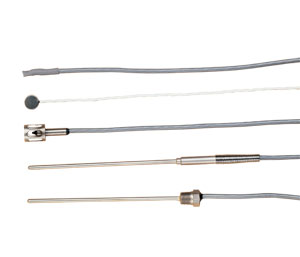

OL-700 Series :Linear Response Thermistor Probes with 10-foot Cable terminated in 3 stripped leads, Various Applications and Styles
Click for larger image.

¥ 725.00  OL-701
Click to scroll below to order See Specs PDF Manuals View a printer friendly page

Series 700 Temperature Probes with 3 stripped leads use the 44018 thermistor composite as the linear temperature sensor. On special order, probes can also be built with 44019 thermistor composite. The purpose of the Series 700 Probes is to provide a complete probe assembly for use with the circuits requiring the 44018 or 44019A linear thermistor composite.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 OL-702 2 Weeks   ¥2,125.00    Small Flexible. Vinyl sheath and tip. Cuvette temperatures. General purpose measurement.
 OL-708-PP    Consult sales   “Banjo” Surface Temperature. Water bath, air surfaces temperatures. Stainless steel. Phone plug.
 OL-709 6 Weeks   ¥875.00    Attachable Surface Temperature. Stainless steel cup, epoxy backed. Easy to tape on flat surfaces. Good for heat loss or compression efficiency study of piping.
 OL-729    Consult sales   Small Surface Temperature. Cuvette, water bath, leaf and other surfaces. 24'' PFA-covered flexible wire. Stainless steel disc with epoxy back.
 OL-705 2 Weeks   ¥1,020.00    Air Temperature. Stainless steel probe with steel housing around the sensing 3-lead sensing element. It is suitable for test rooms, incubators, remote air readings, monitoring of gas streams. etc.
 OL-706 2 Weeks   ¥975.00    Air Temperature. Stainless steel probe suitable for test rooms, incubators, remote air readings, monitoring of gas streams. etc. OL-706 has an economical plastic housing around sensing element.
 OL-703 2 Weeks   ¥950.00    Tubular. Stainless steel probe for rugged duty. Often used for liquid immersion. Probe is immersible only to tje end of the 114 mm (4 1/2'') sheath.
 OL-704 8 Weeks   ¥2,415.00    Tubular-Glass. Chemically inert for liquid immersion use. Suitable for thermometric titration and Freezing point determination. Made with Pyrex, 5'' long.
 OL-710 2 Weeks   ¥1,015.00    Tubular With Fitting. Rugged, stainless steel probe with1/8 NPT pipe fitting. Suitable for taking readings in pipes or inside closed vessels.
 ON-EXT-10    Consult sales   Optional 10 foot extension cable with phone plug connectors
† Price are shown in RMB.

 Note: To order probes with phone plug termination add “-PP” as a suffix to part number and add $7 to price.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
  Ordering Example: (1) OL-701 General Purpose. Vinyl tipped, most rugged probe. Used for short-term water and sub-soil readings. Waterproof construction now standard., ¥725.00
