Portable Temperature/Humidity Data Loggers with Display |
| OM-70 Series |
|
 |
|
|
|
|
|
¥
2,015.00
OM-71
|
| • |
Compact, Light Weight, Easy-to-Use
|
| • |
User Selectable Stop on Memory Full or Memory Rollover for Continuous Recording
|
| • |
PC Delayed Start or Pushbutton Recording Control
|
| • |
Read Recorded Data on Logger Display
|
| • |
Displays Alarm Icon for High/Low Alarm Conditions
|
| • |
Nonvolatile EEPROM Memory Retains Data Even if Battery Fails
|
| • |
USB Interface for Fast Data Transfer
|
| • |
Includes Free Software
|
View related products - Relative Humidity Measurement Instruments
|
| |
|
|
|
 |
Please check out Newest Released Temperature and Humidity Portable Data Logger with LCD Display OM-HL-SH Series for more advanced features with excellent user experience.

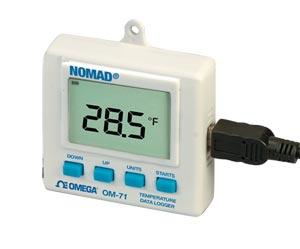

The OM-70 Series of portable temperature and temperature/humidity data loggers are easy-to use, versatile devices which can be
used for a wide range of logging applications including coolers,
freezers, greenhouses, museums, laboratories, shipping containers,
warehouses, environmental monitoring and food storage.
These data loggers are capable of sampling as fast as once per
second or as slow as every 18 hours. Models OM-71 and OM-72
can store a total of 43,344 temperature measurements in
memory. Model OM-73 can store a total of 43,344 measurement points
for temperature only or 21,672 points of temperature, humidity and
dew point. The model OM-74 thermocouple data logger can store
32,638 temperature samples. Easy-to-use Windows software is included with each data logger.
The software is a full-featured program that allows you to set
up all data logger functions including sampling rate, logging
duration, start mode, logging mode, and high and low temperature alarm
values. Once data has been logged, the program then allows you to
download data from the logger, plot the data and export the data to an
ASCII text or Excel file format for further analysis.
Software Features Include:
• Data summary to read statistics and alarm information in a
simplified report format.
• Data listing for tabular view of detailed dates, times and values
of recorded data.
• Graph function displays data in clear graphical format.
• Zoom magnifies data with powerful zoom and autoscale functions.
• Autoscale function fits data to the screen or allows user to manually
enter their own values.
• Graphical Cursor displays exact data of any point in the graphical
display.
• Export data in text or Excel format.
• Print graph or text data with print preview and setup options.
• Logger configuration allows easy set up and launch of data loggers
with immediate or delayed start, preferred sample rate, alarm
setup, and custom ID.
• Password protected calibration function automatically stores with
parameters in device or restores factory defaults. A calibration
Window is provided in the software to simplify the calibration
procedure.
• Status windows display unique ID of logger, battery voltage, memory
used, sample rate, duration, alarm condition and logging status.
• Menu Bar along the top of the screen provides one click access
to software functions.
Specifications
OM-71, OM-72, OM-73
Ambient Temperature Measurement Range
(Models OM-71, OM-73): -20 to 70°C (-4 to 160°F)
External Sensor Temperature Measurement Range
(Model OM-72): -40 to 70°C (-40 to 160°F)
Storage Temperature: -40 to 77°C (-40 to 170°F)
Temperature Accuracy: ±0.5°C (±1°F),
from -17 to 50°C (1 to 122°F)
Temperature Resolution: 0.1°C (0.05°F)
Relative Humidity Range
(Model OM-73): 0 to 99% RH
non-condensing
Relative Humidity Accuracy
(Model OM-73):
±2% RH from 10 to 90% RH @ 25°C (77°F)
Relative Humidity Resolution
(Model OM-73): 0.05% RH
OM-74
Display Temperature Resolution:
0.1°C (0.2°F) up to 199.9 °C or °F,
1°C (1°F) above 200 °C or °F
Logged Temperature Resolution: 0.1°C (0.2°F)
Thermocouple Impedance:
50 ? max for specified accuracy
Cold Junction Temperature Accuracy: ± 0.3°C (±0.5°F)
Operating Temperature: -18 to 55°C (0 to 131°F)
Storage Temperature:-30 to 80°C (-20 to 175°F)
GENERAL
Sample Rate: 1 second to 18 hours user selectable
Alarm Settings: Over/under alarm with visual indication
LCD Display: Displays temperature, date, time,
alarm
condition recording status and battery condition
Time Accuracy: ±100 ppm @ 24°C (75°F)
Measurement Capacity: OM-71, OM-72, OM-73:
Non-volatile memory; 43,344
samples
for temperature only, or 21,672 samples for temperature,
humidity and dew point (Model OM-73); OM-74; 32,638 temperature samples
Recording Control: Start on button press, immediate after setup,
or at a user specified date and time
Recording Mode: Stop on memory full,
or continuous recording with
memory rollover
Minimum System Requirements: 8MB of RAM, 2MB of disk
space,
800 x 600 resolution, 1 free USB port
Software Compatibility: Windows XP/Vista/7 and 8 (32-bit and 64-bit)
Interface: USB 2.0
Power: OM-71, OM-72, OM-73: 3 V CR2032 lithium battery (included);
OM-74; 3 AAA batteries (alkaline or lithium)
Battery Life: 3 years (average)
Dimensions:
OM-71, OM-72, OM-73:
6 H x 5.7 W x 1.3 cm D
(2.36 x 2.24 x 0.51")
OM-74:
5.7 H x 5.5 W x 3.0 cm D (2.25 x 2.15 x 1.2")
Weight:
OM-71, OM-72, OM-73: 91 g (3.2 oz)
OM-74: 62 g (2.2 oz)
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with Windows software, operator’s manual on CD, USB interface cable and battery.
Ordering Example: (1) OM-72 Temperature data logger with display and remote temperature sensor, ¥1,915.00
|
|
|
|
|
| |
|
