Push-to-Connect Pneumatic Airline Fittings - Discontinued

Pneumatic Air Line Fittings for Metric and Standard Tubing

Push-to-Connect Air Line Fitting | Omega Engineering

Pneumatic Air Line Fittings for Metric and Standard Tubing:Push-to-Connect Pneumatic Airline Fittings - Discontinued

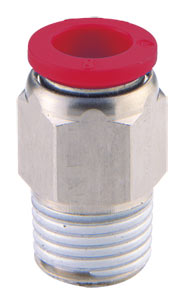

Click for larger image.

•	Ready to Use push to connect Air Line Fittings, Pre-Applied Sealant on Tapered Threads and O-rings on Parallel Threads
•	Releasable Stainless Steel Grab-Ring to Grip Nylon or Polyurethane Tubing
•	Nickel Plated Brass Components
•	Internal and External Hexagons on Straight Fittings
•	Quality Sealing Using Silicone Free U-Packing
•	Mounting Holes on all Union Fittings
•	Standard Fittings and Metric Sizes for Compressed Air Tubing
•	Temperature Operating Range 0 to 60°C (32 to 140°F)
•	Operating Pressure 1.6 mm Hg to 10 bar (29.5" Hg to 150 psi)

The OM-AIR series has been discontinued. Please contact our Flow Engineering department for a viable replacement.

OM-AIR Pneumatic push to connect Air Line Fittings are design with a releasable stainless steel grab-ring to grip nylon or polyurethane air line tubing (85 or 95 durometer). Release buttons allow for quick assembly and release, a true Push-to-Connect design.The brass components are nickel plated and pre-applied sealant is used on all tapered threads and recessed captive o-rings on all parallel threads. Internal and external hexagons are standard on all straight fittings. Union fittings come with mounting holes.

Air Line Fittings are available in multiple thread and tubing selections: Standard to Standard : Metric to Standard ; and Metric to Metric to help you connect all your pneumatic motion devices.

SPECIFICATIONS
MATERIALS
Body: PBT
Seals: NBR (silicone free) u=packing and o-rings
Threaded Bodies: Nickel plated brass
Release Sleeves and Backing Ring: POM
Grab-Ring: Stainless steel
Collar: Nickel plated brass
Thread Sealant: Threebond 2350B TUBE SIZES (OD)
Standard Sizes: 1/8, 5/32, 1/4 and 3/8"
Metric Sizes: 3, 4, 6 and 8 mm
THREAD SIZES
Standard Size Fittings: 10-32 UNF, 1/8, 1/4 and 3/8" NPT, M5, 1/8 and 1/4 ISO R
Miniature Size Fittings: 10-32 UNF, M3, and M5
TUBE TYPES
Nylon: 11 or 12
Polyurethane: 85 or 95 durometer

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Male Straight Adapter (Internal and External Hex)

OM-AIR-C24250210	2 Weeks	¥21.25	10-32 UNF Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C24250410		Consult sales	10-32 UNF Thread 1/4' Tube OD	qty.

OM-AIR-C24250218		Consult sales	1/8 NPT Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C24250418		Consult sales	1/8 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C24250618		Consult sales	1/8 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C24250228		Consult sales	1/4 NPT Thread 4mm or 5/32' Tubing OD	qty.

OM-AIR-C24250428	2 Weeks	¥17.25	1/4 NPT Thread 1/4' Tubing OD	qty.

OM-AIR-C24250628		Consult sales	1/4 NPT Thread 3/8' Tubing OD	qty.

OM-AIR-C24250648	2 Weeks	¥27.00	1/2 NPT Thread 3/8' Tubing OD	qty.

OM-AIR-C24250238	2 Weeks	¥29.00	3/8 NPT Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C24250438	2 Weeks	¥19.75	3/8 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C24250638	2 Weeks	¥23.25	3/8 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C02250405		Consult sales	M5 Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C02250605		Consult sales	M5 Thread 6 mm Tube OD	qty.

OM-AIR-C01250418		Consult sales	R 1/8' Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C21250418		Consult sales	R 1/8' Thread 1/4' Tube OD	qty.

OM-AIR-C01250618	2 Weeks	¥27.00	R 1/8' Thread 6 mm Tube OD	qty.

OM-AIR-C01250428		Consult sales	R 1/4' Thread 4 mm OR 5/32' Tube OD	qty.

OM-AIR-C21250428		Consult sales	R 1/4' Thread 1/4' Tube OD	qty.

OM-AIR-C21250628	2 Weeks	¥38.00	R 1/4' Thread 3/8' Tube OD	qty.

OM-AIR-C01250628	2 Weeks	¥24.75	R 1/4' Thread 6 mm Tube OD	qty.

OM-AIR-C01250828	2 Weeks	¥33.00	R 1/4' Thread 8 mm Tube OD	qty.

OM-AIR-C01250848	2 Weeks	¥68.00	R 1/2' Thread 8 mm Tube OD	qty.


Miniature Male Straight Adapter (Internal and External Hex)

OM-AIR-M22250103	2 Weeks	¥47.50	M3 Thread 1/8' Tube OD	qty.

OM-AIR-M02250403	2 Weeks	¥49.50	M3 Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-M02250303		Consult sales	M3 Thread 3 mm Tube OD	qty.

OM-AIR-M02250305		Consult sales	M5 Thread 3 mm Tube OD	qty.

OM-AIR-M02250306		Consult sales	M6 Thread 3 mm Tube OD	qty.

OM-AIR-M02250405	2 Weeks	¥36.00	M5 Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-M22250105		Consult sales	M5 Thread 1/8' Tube OD	qty.

OM-AIR-M24250110		Consult sales	10-32 UNF Thread 1/8' Tube OD	qty.

OM-AIR-M24250210	2 Weeks	¥36.00	10-32 UNF Thread 4 mm or 5/32' Tube OD	qty.


Male Straight Adapter (Internal Hex)

OM-AIR-C242A0210		Consult sales	10-32 UNF Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C242A0410	2 Weeks	¥27.00	10-32 UNF Thread 1/4' Tube OD	qty.

OM-AIR-C242A0218		Consult sales	1/8 NPT Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C242A0418		Consult sales	1/8 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C242A0618		Consult sales	1/8 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C022A0405	2 Weeks	¥44.50	M5 Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C022A0605	2 Weeks	¥32.00	M5 Thread 6 mm Tube OD	qty.

OM-AIR-C012A0418		Consult sales	R 1/8' Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C212A0418		Consult sales	R 1/8' Thread 1/4' Tube OD	qty.

OM-AIR-C012A0618		Consult sales	R 1/8' Thread 6 mm Tube OD	qty.


Miniature Male Straight Adapter (Internal Hex)

OM-AIR-M242A0110	2 Weeks	¥27.50	10-32 UNF Thread 1/8' tube OD	qty.

OM-AIR-M242A0210		Consult sales	10-32 UNF Thread 5/32' tube OD	qty.

OM-AIR-M222A0103	2 Weeks	¥37.00	M3 Thread 1/8' tube OD	qty.

OM-AIR-M022A0303		Consult sales	M3 Thread 3MM tube OD	qty.

OM-AIR-M022A0403	2 Weeks	¥58.00	M3 Thread 4MM tube OD	qty.

OM-AIR-M022A0305	2 Weeks	¥40.00	M5 Thread 3MM tube OD	qty.

OM-AIR-M222A0405	2 Weeks	¥48.50	M5 Thread 1/4' tube OD	qty.

OM-AIR-M012A0418		Consult sales	R1/8 Thread 4MM tube OD	qty.


Female Straight Adapter

OM-AIR-C24260218		Consult sales	1/8 NPT Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C24260418		Consult sales	1/8 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C24260228	2 Weeks	¥43.00	1/4 NPT thread 5/32' or 4mm Tube	qty.

OM-AIR-C24260428	101 Weeks	¥34.00	1/4 NPT thread 1/4' Tube	qty.

OM-AIR-C24260628	2 Weeks	¥71.00	1/4 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C24260438		Consult sales	3/8 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C24260638		Consult sales	3/8 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C24260648		Consult sales	1/2 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C21260428		Consult sales	1/4G Thread 1/4' Tube OD	qty.

OM-AIR-C02260428	2 Weeks	¥52.00	1/4G Thread 4mm Tube OD	qty.

OM-AIR-C02260628	2 Weeks	¥74.00	1/4G Thread 6mm Tube OD	qty.

OM-AIR-C02260828	2 Weeks	¥77.00	1/4G Thread 8mm Tube OD	qty.

OM-AIR-C02260848		Consult sales	1/2G Thread 8mm Tube OD	qty.


90° Swivel Elbow Adapter Extended

OM-AIR-C24540210		Consult sales	10-32 UNF Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C24540410		Consult sales	10-32 UNF Thread 1/4' Tube OD	qty.

OM-AIR-C24540218		Consult sales	1/8 NPT Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C24540418		Consult sales	1/8 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C24540228		Consult sales	1/4 NPT Thread 5/32' Tube OD	qty.

OM-AIR-C24540428		Consult sales	1/4 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C24540618		Consult sales	1/8 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C24540628		Consult sales	1/4 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C24540438		Consult sales	3/8 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C24540638	2 Weeks	¥76.00	3/8 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C24540648		Consult sales	1/2 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C22540405	2 Weeks	¥45.50	M5 Thread 1/4' Tube OD	qty.

OM-AIR-C22540205		Consult sales	M5 Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C02540605		Consult sales	M5 Thread 6 mm Tube OD	qty.

OM-AIR-C21540418		Consult sales	R 1/8' Thread 1/4' Tube OD	qty.

OM-AIR-C01540418		Consult sales	R 1/8' Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C01540618		Consult sales	R 1/8' Thread 6 mm Tube OD	qty.

OM-AIR-C01540428		Consult sales	R1/4 Thread 4mm Tubing OD	qty.

OM-AIR-C21540428		Consult sales	R1/4 Thread 1/4' Tubing OD	qty.

OM-AIR-C01540628		Consult sales	R1/4 Thread 6mm Tubing OD	qty.

OM-AIR-C01540828		Consult sales	R1/4 Thread 8mm Tubing OD	qty.

OM-AIR-C01540848		Consult sales	R1/2 Thread 8mm Tubing OD	qty.


90° Swivel Elbow Adapter

OM-AIR-C24470210		Consult sales	10-32 UNF Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C24470410		Consult sales	10-32 UNF Thread 1/4' Tube OD	qty.

OM-AIR-C24470218		Consult sales	1/8 NPT Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C24470418		Consult sales	1/8 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C24470228		Consult sales	1/4 NPT Thread 5/32' or 4mm Tubing OD	qty.

OM-AIR-C24470428	2 Weeks	¥21.00	1/4 NPT Thread 1/4' Tubing OD	qty.

OM-AIR-C24470618		Consult sales	1/8 NPT Thread 3/8' Tubing OD	qty.

OM-AIR-C24470628	2 Weeks	¥34.00	1/4 NPT Thread 3/8' Tubing OD	qty.

OM-AIR-C24470438	2 Weeks	¥28.50	3/8 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C24470638	2 Weeks	¥35.50	3/8 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C24470648	2 Weeks	¥43.50	1/2 NPT Thread 3/8' Tubing OD	qty.

OM-AIR-C02470405		Consult sales	M5 Thread 4MM or 5/32' Tubing OD	qty.

OM-AIR-C02470605		Consult sales	M5 Thread 6MM Tubing OD	qty.

OM-AIR-C21470418	2 Weeks	¥25.00	R1/8 Thread 1/4' Tubing OD	qty.

OM-AIR-C01470418		Consult sales	R1/8 Thread 4MM or 5/32' Tubing OD	qty.

OM-AIR-C01470618		Consult sales	R1/8 Thread 6MM Tubing OD	qty.

OM-AIR-C01470428		Consult sales	R1/4 Thread 4mm or 5/32' Tubing OD	qty.

OM-AIR-C21470428		Consult sales	R1/4 Thread 1/4' Tubing OD	qty.

OM-AIR-C01470628		Consult sales	R1/4 Thread 6mm Tubing OD	qty.

OM-AIR-C01470828		Consult sales	R1/4 Thread 8mm Tubing OD	qty.

OM-AIR-C21470628		Consult sales	R1/4 Thread 3/8' Tubing OD	qty.

OM-AIR-C01471048		Consult sales	R1/2 Thread 8mm Tubing OD	qty.


Miniature 90° Swivel Elbow Adapter

OM-AIR-M24470110		Consult sales	10-32 UNF Thread 1/8' Tube OD	qty.

OM-AIR-M24470210		Consult sales	10-32 UNF Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-M22470103		Consult sales	M3 Thread 1/8' Tube OD	qty.

OM-AIR-M02470303		Consult sales	M3 Thread 3mm Tube OD	qty.

OM-AIR-M02470403		Consult sales	M3 Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-M22470105	2 Weeks	¥56.00	M5 Thread 1/8' Tube OD	qty.

OM-AIR-M02470305		Consult sales	M5 Thread 3 mm Tube OD	qty.

OM-AIR-M02470405	2 Weeks	¥65.00	M5 Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-M22470405		Consult sales	M5 Thread 1/4' Tube OD	qty.

OM-AIR-M01470418		Consult sales	R 1/8' Thread 4 mm or 5/32' Tube OD	qty.


90° Swivel Elbow Female Adapter

OM-AIR-C24480210		Consult sales	10-32 UNF Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C24480410		Consult sales	10-32 UNF Thread 1/4' Tube OD	qty.

OM-AIR-C24480218		Consult sales	1/8 NPT Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C24480418	2 Weeks	¥65.00	1/8 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C24480228		Consult sales	1/4 NPT Thread 5/32' Tube OD	qty.

OM-AIR-C24480428		Consult sales	1/4 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C24480628		Consult sales	1/4 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C24480438		Consult sales	3/8 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C24480648		Consult sales	1/2 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C02480405		Consult sales	M5 Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C02480605		Consult sales	M5 Thread 6 mm Tube OD	qty.

OM-AIR-C01480418		Consult sales	R 1/8' Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C01480818		Consult sales	R 1/8' Thread 8 mm Tube OD	qty.

OM-AIR-C01480428		Consult sales	R 1/4' Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C01480628		Consult sales	R 1/4' Thread 6 mm Tube OD	qty.

OM-AIR-C01480828		Consult sales	R 1/4' Thread 8 mm Tube OD	qty.


Swivel Side Tee Adapter

OM-AIR-C24680210		Consult sales	10-32 UNF Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C24680410		Consult sales	10-32 UNF Thread 1/4' Tube OD	qty.

OM-AIR-C24680218	2 Weeks	¥38.50	1/8 NPT Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C24680618		Consult sales	1/8 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C24680228		Consult sales	1/4 NPT Thread 5/32' Tube OD	qty.

OM-AIR-C24680428	2 Weeks	¥41.00	1/4 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C24680628		Consult sales	1/4 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C24680648		Consult sales	1/2 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C02680405		Consult sales	M5 Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C02680605		Consult sales	M5 Thread 6 mm Tube OD	qty.

OM-AIR-C01680628		Consult sales	R 1/4' Thread 6 mm Tube OD	qty.

OM-AIR-C01680618		Consult sales	R 1/8' Thread 6 mm Tube OD	qty.

OM-AIR-C01680428		Consult sales	R 1/4' Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C21680428		Consult sales	R 1/4' Thread 1/4' Tube OD	qty.

OM-AIR-C01680628		Consult sales	R 1/4' Thread 6 mm Tube OD	qty.

OM-AIR-C01680828		Consult sales	R 1/4' Thread 8 mm Tube OD	qty.

OM-AIR-C01680848		Consult sales	R 1/2' Thread 8 mm Tube OD	qty.


Swivel Tee Adapter

OM-AIR-C24670218		Consult sales	1/8 NPT Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C24670210		Consult sales	10-32 UNF Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C24670228		Consult sales	1/4 NPT Thread 5/32' Tube OD	qty.

OM-AIR-C24670428		Consult sales	1/4 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C24670628		Consult sales	1/4 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C24670638	2 Weeks	¥59.00	3/8 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C24670648		Consult sales	1/2 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C02670605		Consult sales	M5 Thread 6 mm Tube OD	qty.

OM-AIR-C01670418		Consult sales	R 1/8' Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C01670618		Consult sales	R 1/8' Thread 6 mm Tube OD	qty.

OM-AIR-C21670428		Consult sales	R 1/4' Thread 1/4' Tube OD	qty.

OM-AIR-C01670428		Consult sales	R 1/4' Thread 4 mm Tube OD	qty.

OM-AIR-C01670628		Consult sales	R 1/4' Thread 6 mm Tube OD	qty.

OM-AIR-C01670828		Consult sales	R 1/4' Thread 8 mm Tube OD	qty.

OM-AIR-C01670848		Consult sales	R 1/2' Thread 8 mm Tube OD	qty.


Swivel Y Adapter

OM-AIR-C24880218		Consult sales	1/8 NPT Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C24880418		Consult sales	1/8 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C24880210		Consult sales	10-32 UNF Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C24880410		Consult sales	10-32 UNF Thread 1/4' Tube OD	qty.

OM-AIR-C24880228		Consult sales	1/4 NPT Thread 4mm or 5/32' Tubing OD	qty.

OM-AIR-C24880228		Consult sales	1/4 NPT Thread 4mm or 5/32' Tubing OD	qty.

OM-AIR-C24880628		Consult sales	1/4 NPT Thread 3/8' Tubing OD	qty.

OM-AIR-C24880438		Consult sales	3/8' NPT Thread 1/4' Tube OD	qty.

OM-AIR-C24880638		Consult sales	3/8' NPT Thread 3/8' Tube OD	qty.

OM-AIR-C24880648		Consult sales	1/2 NPT Thread 3/8' Tubing OD	qty.

OM-AIR-C02880405		Consult sales	M5 Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C02880605		Consult sales	M5 Thread 6 mm Tube OD	qty.

OM-AIR-C01880418		Consult sales	R 1/8' Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C01880618		Consult sales	R 1/8' Thread 6 mm Tube OD	qty.

OM-AIR-C21880415		Consult sales	R 1/8' Thread 1/4' Tube OD	qty.

OM-AIR-C01880428		Consult sales	R1/4 Thread 4mm or 5/32' Tubing OD	qty.

OM-AIR-C01880628		Consult sales	R1/4 Thread 6mm Tubing OD	qty.

OM-AIR-C01880828		Consult sales	R1/4 Thread 8mm Tubing OD	qty.

OM-AIR-C21880428		Consult sales	R1/4 Thread 1/4' Tubing OD	qty.

OM-AIR-C21880628		Consult sales	R1/4 Thread 3/8' Tubing OD	qty.

OM-AIR-C01880848		Consult sales	R1/2 Thread 8mm Tubing OD	qty.


Female Bulkhead

OM-AIR-C24320218		Consult sales	1/8 NPT Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C24320418		Consult sales	1/8 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C24320328		Consult sales	1/4 NPT Thread 3/16' Tube OD	qty.

OM-AIR-C24320428		Consult sales	1/4 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C24320628		Consult sales	1/4 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C24320638		Consult sales	3/8 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C02320428		Consult sales	1/4 G Thread 4MM OR 5/32' Tube OD	qty.

OM-AIR-C02320628		Consult sales	1/4 G Thread 6MM Tube OD	qty.

OM-AIR-C02320828		Consult sales	1/4 G Thread 8MM Tube OD	qty.


Banjo Flow Control (Regulating Out)

OM-AIR-C2VA00110		Consult sales	10-32 UNF Thread 1/8' Tube OD	qty.

OM-AIR-C2VA00210	2 Weeks	¥71.00	10-32 UNF Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C2VA00410		Consult sales	10-32 UNF Thread 1/4' Tube OD	qty.

OM-AIR-C2VA00218		Consult sales	1/8 NPT Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C2VA00418		Consult sales	1/8 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C2VA00228		Consult sales	1/4 NPT Thread 5/32' OR 4MM Tube OD	qty.

OM-AIR-C2VA00428		Consult sales	1/4 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C2VA00438		Consult sales	3/8 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C2VA00638		Consult sales	3/8 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C0K510405		Consult sales	M5 Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C0K510605		Consult sales	M5 Thread 6 mm Tube OD	qty.

OM-AIR-C2VA00405		Consult sales	M5 Thread 1/4' Tube OD	qty.

OM-AIR-C0TA00418		Consult sales	R 1/8' Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C0TA00618		Consult sales	R 1/8' Thread 6 mm Tube OD	qty.

OM-AIR-C2TA00418		Consult sales	R 1/8' Thread 1/4' Tube OD	qty.

OM-AIR-C0TA00628		Consult sales	R 1/4' Thread 6MM Tube OD	qty.

OM-AIR-C0TA00828		Consult sales	R 1/4' Thread 8MM Tube OD	qty.


Banjo Flow Control (Regulating In)

OM-AIR-C2WA00110		Consult sales	10-32 UNF Thread 1/8' Tube OD	qty.

OM-AIR-C2WA00210		Consult sales	10-32 UNF Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C2WA00410		Consult sales	10-32 UNF Thread 1/4' Tube OD	qty.

OM-AIR-C2WA00218		Consult sales	1/8 NPT Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C2WA00418	2 Weeks	¥107.00	1/8 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C2WA00228		Consult sales	1/4 NPT Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C2WA00428		Consult sales	1/4 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C2WA00628	2 Weeks	¥244.00	1/4 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C2WA00438		Consult sales	3/8 NPT Thread 1/4' Tube OD	qty.

OM-AIR-C2WA00638		Consult sales	3/8 NPT Thread 3/8' Tube OD	qty.

OM-AIR-C0L510405		Consult sales	M5 Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C0L510605		Consult sales	M5 Thread 6 mm Tube OD	qty.

OM-AIR-C2WA00405		Consult sales	M5 Thread 1/4' Tube OD	qty.

OM-AIR-C0SA00418		Consult sales	R 1/8' Thread 4 mm or 5/32' Tube OD	qty.

OM-AIR-C0SA00618		Consult sales	R 1/8' Thread 6 mm Tube OD	qty.

OM-AIR-C2TA00428		Consult sales	R 1/4' Thread 1/4' Tube OD	qty.

OM-AIR-C0SA00628		Consult sales	R 1/4' Thread 6 mm Tube OD	qty.

OM-AIR-C0SA00828		Consult sales	R 1/4' Thread 8 mm Tube OD	qty.


In-Line Flow Control

OM-AIR-C20GE0200		Consult sales	5/32' or 4 mm Tube OD	qty.

OM-AIR-C20GE0400	2 Weeks	¥122.00	1/4' Tube OD	qty.

OM-AIR-C20GE0600		Consult sales	3/8' Tube OD	qty.

OM-AIR-C00GE0600		Consult sales	6 mm Tube OD	qty.

OM-AIR-C00GE0800		Consult sales	8 mm Tube OD	qty.


Straight Union (Equal)

OM-AIR-M20200100		Consult sales	1/8' Tube OD	qty.

OM-AIR-C20200200		Consult sales	5/32' or 4MM Tube OD	qty.

OM-AIR-C20200400		Consult sales	1/4' Tube OD	qty.

OM-AIR-C20200600		Consult sales	3/8' Tube OD	qty.

OM-AIR-M00200300		Consult sales	3 MM Tube OD	qty.

OM-AIR-C00200600	2 Weeks	¥27.00	6 MM Tube OD	qty.


Straight Union (Unequal)

OM-AIR-M20200201	2 Weeks	¥51.00	1/8' Tube OD - 5/32' OR 4MM Tube OD	qty.

OM-AIR-C20200402	2 Weeks	¥40.00	5/32' Tube OD - 1/4' Tube OD	qty.

OM-AIR-C20200604		Consult sales	1/4' Tube OD - 3/8' Tube OD	qty.

OM-AIR-C00200604		Consult sales	4 MM Tube OD - 6 MM Tube OD	qty.

OM-AIR-C00200806		Consult sales	6 MM Tube OD - 8 MM Tube OD	qty.


Elbow Union

OM-AIR-C20400200		Consult sales	5/32' Tube OD	qty.

OM-AIR-C20400400		Consult sales	1/4' Tube OD	qty.

OM-AIR-C20400600	2 Weeks	¥28.00	3/8' Tube OD	qty.

OM-AIR-C00400400	2 Weeks	¥24.00	4 mm Tube OD	qty.

OM-AIR-C00400600		Consult sales	6 mm Tube OD	qty.

OM-AIR-C00400800	2 Weeks	¥43.00	8 mm Tube OD	qty.


Union Y

OM-AIR-C20820200		Consult sales	4 mm or 5/32' Tube	qty.

OM-AIR-C20820400	2 Weeks	¥28.00	1/4' Tube OD	qty.

OM-AIR-C20820600		Consult sales	3/8' Tube OD	qty.

OM-AIR-C00840600		Consult sales	6 mm Tube OD	qty.

OM-AIR-C00820800		Consult sales	8 mm Tube OD	qty.

OM-AIR-C20820402	2 Weeks	¥52.00	1/4' Tube OD to 5/32' Tube OD	qty.

OM-AIR-C20820604		Consult sales	3/8' Tube OD to 1/4' Tube OD	qty.

OM-AIR-C00820604		Consult sales	6 mm Tube OD to 4 mm Tube OD	qty.

OM-AIR-C00820806		Consult sales	8 mm Tube OD to 6 mm Tube OD	qty.


Union Tee

OM-AIR-C20600200	2 Weeks	¥32.00	5/32' or 4mm Tube OD	qty.

OM-AIR-C20600400		Consult sales	1/4' Tube OD	qty.

OM-AIR-C20600600	2 Weeks	¥31.00	3/8' Tube OD	qty.

OM-AIR-C00600600		Consult sales	6 mm Tube OD	qty.

OM-AIR-C00600800		Consult sales	8mm Tube OD	qty.

OM-AIR-C206A0402	2 Weeks	¥39.50	Unequal 1/4' to 4 mm ( 5/32') Tube OD	qty.

OM-AIR-C006A0604		Consult sales	Unequal 6mm to 4 mm Tube OD	qty.

OM-AIR-C206A0604		Consult sales	Unequal 3/8' to 1/4' Tube OD	qty.

OM-AIR-C006A0806		Consult sales	Unequal 6mm to 8 mm Tube OD	qty.


Bulkhead Union

OM-AIR-C20290200		Consult sales	4 mm or 5/32' Tube OD	qty.

OM-AIR-C20290400		Consult sales	1/4' Tube OD	qty.

OM-AIR-C20290600		Consult sales	3/8' Tube OD	qty.

OM-AIR-C20290300		Consult sales	6 mm Tube OD	qty.


Plug

OM-AIR-C00040400		Consult sales	4 mm or 5/32' Tube OD	qty.

OM-AIR-C20040400	2 Weeks	¥12.00	1/4' Tube OD	qty.

OM-AIR-C20040600	2 Weeks	¥20.00	3/8' Tube OD	qty.

OM-AIR-C00040800		Consult sales	8 mm Tube OD	qty.


Stem Reducer (Stem - Tube)

OM-AIR-C00230804		Consult sales	Stem 8mm - 4 mm Tube OD	qty.

OM-AIR-C20230201		Consult sales	Stem 5/32' - 1/8' Tube OD	qty.

OM-AIR-C20230402		Consult sales	Stem 1/4' - 4 mm or 5/32' Tube OD	qty.

OM-AIR-C20230604		Consult sales	Stem 3/8' - 1/4' Tube OD	qty.

OM-AIR-C00230604		Consult sales	Stem 6 mm - 4 mm Tube OD	qty.

OM-AIR-C00230806		Consult sales	Stem 8 mm - 6 mm Tube OD	qty.


Manifold Adapter

OM-AIR-C24D30218		Consult sales	1/8 NPT Thread 1/4 to 5/32' Tube OD	qty.

OM-AIR-C24D30438		Consult sales	3/8 NPT Thread 3/8 to 1/4' Tube OD	qty.

OM-AIR-C01D30418		Consult sales	1/8R Thread 6 to 4mm OD	qty.


Manifold Union

OM-AIR-C20D30402	2 Weeks	¥118.00	1/4' Tube OD 4 mm or 5/32' Tube OD	qty.

OM-AIR-C20D30604		Consult sales	3/8' Tube OD 1/4' Tube OD	qty.

OM-AIR-C00D30604		Consult sales	4 mm or 5/32' Tube OD 6 mm Tube OD	qty.

OM-AIR-C00D30804		Consult sales	4mm or 5/32' Tube OD 8 mm Tube OD	qty.

OM-AIR-C00D30806		Consult sales	8 mm to 6mm Tube OD	qty.


Inline Non-Return Valves

OM-AIR-T51P0004		Consult sales	4 mm or 5/32' Tube OD 4 mm or 5/32' Tube OD	qty.

OM-AIR-T51Y0004	2 Weeks	¥253.00	1/4' Tube OD 1/4' Tube OD	qty.

OM-AIR-T51P0006		Consult sales	6 mm Tube OD 6 mm Tube OD	qty.

OM-AIR-T51P0008		Consult sales	8 mm Tube OD 8 mm Tube OD	qty.

† Price are shown in RMB.

Keywords:, dcs control laboratory calibration pressure flow meters wireless temperature recorder

Americas

Europe

Asia/Pacific

Push-to-Connect Pneumatic Airline Fittings - Discontinued
