High Temperature Data Logger with 559 mm (22") Stainless Steel Flexible Probe with Optional Thermal Shield |
| OM-CP-HITEMP140-PT Series |
|
 |
|
|
|
|
|
|
|
| • |
559 mm (22") Flexible Probe
|
| • |
Operating Temperature Range:
-40 to 140°C (-40 to 284°F)
|
| • |
Optional Thermal Shield
for Operation up to 250°C (482°F)
|
| • |
Submersible NEMA 4X (IP68)
|
| • |
Programmable Start Time
|
| • |
User Calibration Through Software
|
| • |
Real-Time Operation
|
| • |
Autoclave Verification
|
| • |
Pharmaceutical
|
| • |
Implement HACCP Programs
|
| • |
Food Preparation and Processing
|
| • |
Ready to Use Right Out-of-the-Box
|
| • |
Free NIST Certification
|
View related products - Recorders
|
| |
|
|
|
 |

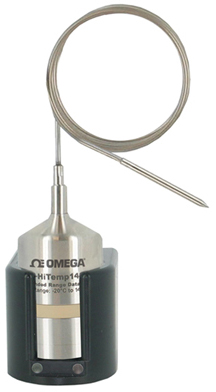

The OM-CP-HITEMP140-PT Series
are submersible, temperature data
loggers that can operate up to 140°C
(284°F) and have an accuracy of
±0.1°C (0.18°F). These devices
feature a 559 mm (22") flexible
stainless steel probe for measuring
extended temperatures up to 260°C
(500°F). The probe is durable and
can be spiraled, bent or angled in
any direction, making it easy to log
temperatures within bottles, vials or
other hard to reach places.
The OM-CP-HITEMP140-PT
records date and time stamped
readings, and has non-volatile
solid state memory that will retain
data even if the battery becomes
discharged. Data retrieval is simple.
Plug the device into an available
USB port and our easy-to-use
software does the rest. The software
converts a PC into a real-time strip
chart recorder.
Using the software, starting,
stopping and downloading the
OM-CP-HITEMP140-PT is simple
and easy. Graphical, tabular and
summary data is provided for
analysis and data can be viewed in
°C, °F, K or °R. The data can also be
automatically exported to Excel® for
further calculations.
The OM-CP-HITEMP140-TSK
is a kit that includes a
OM-CP-HITEMP140-PT data logger
housed in a thermal shield.
The combined features of
the ±0.1°C accuracy of the
OM-CP-HITEMP140-PT and the
properties of the durable thermal
shield allow the device to be used
for a wide range of validation
applications.
Using the software, the data
logger is fast and easy to setup.
Remove the thermal shield and
place the OM-CP-HITEMP140-PT
into the OM-CP-IFC400 docking
station (sold separately). Using the
software, an immediate or delay
start can be chosen, as well as the
reading rate. Select Start to program
the settings and start the data
logger.
Place the thermal shield around the
OM-CP-HITEMP140-PT and screw
it back together. The device is ready
to be deployed.
The OM-CP-HITEMP140-TSK can
be completely submerged and is
built for applications that require
extreme temperature monitoring.
These two devices can be started
and stopped directly from a
computer and their compact design
allows them to fit almost anywhere.
Specifications
OM-CP-HITEMP140-PT-TSK
(Thermal Shield)
Operating Environment:
-200 to 250ºC (-328 to 482ºF)
(time limited) 0 to 100% RH
Enclosure Material: PTFE
Dimensions: 110 H x 51 mm dia. (4.3 x 2.0")
Weight: 274 g (9.7 oz) not including data logger
OM-CP-HITEMP140-PT
(Without Thermal Shield)
Temperature Sensor: 100Ω Platinum RTD
Probe Measurement Range:
-200 to 260ºC (-328 to 500ºF)
Temperature Resolution:
0.01ºC (0.02ºF)
Calibrated Accuracy:
±0.1ºC (±0.18ºF); 20 to 140ºC (68 to 284ºF)
Start Modes: Software
programmable immediate start
or delay start
up to eighteen months in advance.
Stop Modes: Manual through
software timed (specific data and time)
Real Time Recording: May be
used with PC to monitor and record data in real time
Password Protection: An optional
password may be programmed
into the device
to restrict access to
configuration options, Data may be
read out with the password,
Memory: 32,700 readings
Wrap Around: Yes
Reading Rate: One second up to once every 24 hours
Battery Type: 3.6V hightemperature lithium battery
(included); user replaceable
Battery Life: 1 year typical
[1 minute reading rate at 25ºC (77ºF)]
Calibration: Digital calibration through software
Calibration Date: Automatically
recorded within device
Data Format: Date and time
stamped ºC, ºF, K, ºR
Time Accuracy: ±1 minute/month
at 20 to 30ºC (68 to 86ºF)
Computer Interface: OM-CP-IFC400 docking station
required; 125,000 baud
Software: Windows® XP SP3/Vista/7 and 8 (32- and 64-bit)
Operating Environment:
-40 to 140ºC (-40 to 284°F),
0 to 100% RH
Weight: 120 g (4.2 oz)
Material: 316 Stainless Steel
Dimensions:
Body: 48 x 25 mm dia. (1.9 x 0.97")
Probe Tip (OM-CP-HITEMP140-PT-1): 3.2 OD x 42 mm L (0.125 x 1.5")
Probe Tip (OM-CP-HITEMP140-PT-5): 3.2 OD x 121 mm L (0.125 x 4.8") with 4.8 OD x 25 mm L handle (0.188 x 1")
Flexible Probe Portion: 559 x 1.6 mm OD dia.(22 x 0.062")
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with 3.6V lithium battery. Operator’s manual and USB interface cable are included with the OM-CP-IFC400 software/cable package (required for data logger operation, sold separately).
This product page contains items that either have a Lithium Battery installed in the equipment or have a Lithium Battery packed with the equipment. These items as being regulated for air transportation. The following applies:
• No FX1D, FX2D or FX3D can be used as a ship method.
• Only UPS1, UPS2 or UPS3 is authorized.
• For International shipments UPS and DHL can be used. For DHL internationally – Omega only has permission to ship Lithium Batteries no other Hazardous Material.
Ordering Example: (1) OM-CP-IFC400 Docking station with software, ¥1,440.00
|
|
|
|
|
| |
|
