4 to 20 mA Current Data Loggers
Part of the NOMAD®Family |
| OM-CP-PROCESS101 and OM-CP-PROCESS110 |
|
 |
|
|
4 to 20 mA Current Data Loggers
Part of the NOMAD®Family
 |

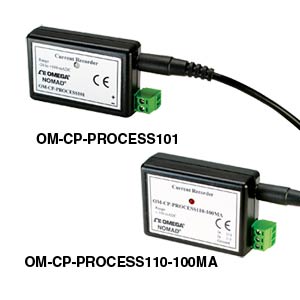

| Click for larger image. |
|
|
|
|
|
|
 |
This product is no longer available please see
OM-CP-PROCESS101A as a direct substitute
The OM-CP-PROCESS101 and
OM-CP-PROCESS110 are low cost, high
resolution, miniature battery powered,
stand-alone data loggers used for
automatically recording current. In
addition, these data loggers allow the
user to store user defined units such as
pressure into the device as well as scale
factors and offset values. This enables
the user to easily linearize and scale any
process meter that provides an analog
output to engineering units automatically.
This all-in-one compact, portable, easy-to-
use device will measure and record up
to 32,768 current measurements. These
dataloggers are a major leap forward in
both size and performance. Its real time
clock ensures that all data is time and
date stamped. The storage medium is
non-volatile solid state memory,
providing maximum data security even if
the battery becomes discharged. Its
small size allows it to fit almost
anywhere. Data retrieval is simple. Plug it
into an empty COM port and our easy to
use software does the rest. The software
converts your PC into a real time strip
chart recorder. Data can be printed in
graphical or tabular format and can be
exported to a text or Microsoft Excel file.
Specifications
Input Connection: Screw terminal
Current Calibration: Digital
calibration is available in software
Recording Interval: 1 second to
12 hours selectable in software
Real Time Recording: Device may
be used with PC
to monitor and
record data in real time
Red Visual Indicator: LED flashes
at selected reading rate
Power: 3.6 V lithium battery included
Battery Life:
OM-CP-PROCESS101:
1 year at 1 min reading rate
OM-CP-PROCESS110:
10 years at 15 min reading rate
Time Accuracy:
±1 minute per month at 20°C
Data Format: Date and time
stamped, volts,
other engineering
units programmable through software
ADC Resolution: 16-bits
Weight:
OM-CP-PROCESS101: 30 g (1 oz)
OM-CP-PROCESS110: 60 g (2 oz)
Computer Interface:
PC serial, RS-232C COM or USB
(interface cable required)
Software: XP SP3/Vista and 7
(32-bit and 64-bit)
Communications:
OM-CP-PROCESS101: 2400 baud
OM-CP-PROCESS110: 57600 baud
Operating Environment:
-40 to 80°C (-40 to 176°F)
0 to 95% RH non-condensing
Dimensions:
OM-CP-PROCESS101:
35 H x 64 W x 15 mm D
(1.4 x 2.5 x 0.6")
OM-CP-PROCESS110:
41 H x 58 W x 20 mm D
(1.6 x 2.3 x 0.8")
|
|
|
|
|
|
† Price are shown in RMB.
Note: Operator's manual is included with the OM-CP-IFC200 Windows software and USB interface cable (software is required to operate the datalogger and is sold separately).
Only the OM-CP-PROCESS101 is CE approved.
Ordering Example: (1) OM-CP-IFC200 Windows software and 3.7 m (12') USB interface cable, ¥1,535.00,
|
|
|
|
|
| |
|
