Tri-Axial Transient Shock Data Logger |
| OM-CP-TSR101-50 |
|
 |
|
|

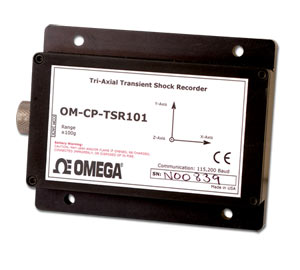

Tri-Axial Transient Shock Data Logger
 |
| Click for larger image. |
|
|
|
|
| • |
3-Axis Shock Recorder
|
| • |
Built-In Accelerometers
|
| • |
Measures Dynamic and Static Acceleration
|
| • |
Programmable Start Time
|
| • |
Compact and Reusable
|
| • |
Optional Password Protection
|
| • |
High Speed Download (115,200 baud)
|
| • |
Ready to Use Right Out-of-the-Box
|
| • |
Free NIST Certification
|
View related products - Dynamic Measurement
|
| |
|
|
|
 |
The OM-CP-TSR101 is a battery powered, stand alone 3-axis shock
data logger. The OM-CP-TSR101 measures and records
instantaneous shock levels when the user-selectable shock levels
have been exceeded. There are 15 rates to chose from ranging
from 1024 to 1 Hz.
The OM-CP-TSR101 is valuable in characterizing environments
such as packaging and fragility assessment (drop testing), break
and crash testing, and shipping validation. This is an all-in-one
compact, portable, easy to use device that will measure and
record approximately 349,000 measurements per axis.
The storage medium is non-volatile solid state memory, providing
maximum data security even if the battery becomes discharged.
The device can be started and stopped directly from your computer
and its small size allows it to fit almost anywhere.
The OM-CP-TSR101 makes data retrieval quick and easy. Simply
plug it into an empty COM or USB port and our user-friendly software
does the rest.
SPECIFICATIONS
Channels: Shock (3-axis)
Accelerometer Type: MEMS semiconductor
Sampling Rate: 15 options, from 0.967 ms/1024 Hz to 1 sec, software selectable
Frequency Response: 0 to approx. 400 Hz (50 g, 100 g and 250 g units); 0 to approx 512 Hz (5 g unit)
Memory: 349,525 readings per axis (1,398,100 total readings)
Trigger: User selectable trigger levels on X, Y and/or Z axes, and specifies number of samples after trigger(s)
Pre-Trigger: Records a pre-trigger of up to 50 readings prior to trigger point
Real Time Recording: May be used with PC to monitor and record instantaneous acceleration in real time (1 sec or slower reading rate, not possible during logging)
Start Modes: Software programmable immediate start or delay start up to 180 days in advance
Password Protection: An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password
Calibration: Digital calibration through software
Calibration Date: Automatically recorded within device
Power: 9 V lithium or alkaline battery (included), user replaceable
Battery Life: 7 days typical with lithium battery
Data Format: Date and time stamped gravities (3-axis)
Time Accuracy: ±1 minute per month at 20 to 30°C
Computer Interface: USB or serial interface (cable required); 115,200 baud
Software: XP SP3/Vista/7 and 8
(32-bit and 64-bit)
Operating Environment: -20 to 60°C (-4 to 140°F), 0 to 95% RH, non-condensing
Dimensions: 89 H x 112 W x 26 mm D (3.5 x 4.4 x 1.0")
Weight: 340 g (12 oz)
Material: Anodized aluminum
|
|
|
|
|
|
† Price are shown in RMB.
Note: Operator’s manual and interface cable included with OM-CP-IFC200 software/cable package (required for data logger operation; sold separately).
This product page contains items (OM-CP-SHOCK-MAG-KIT) that either have a Lithium Battery installed in the equipment or have a Lithium Battery packed with the equipment. These items as being regulated for air transportation. The following applies:
• No FX1D, FX2D or FX3D can be used as a ship method.
• Only UPS1, UPS2 or UPS3 is authorized.
• For International shipments UPS and DHL can be used. For DHL internationally – Omega only has permission to ship Lithium Batteries no other Hazardous Material.
Ordering Example: (1) OM-CP-IFC200 Windows software and 3.7 m (12') USB interface cable, ¥1,470.00,
|
|
|
|
|
| |
|
