Ultra Low Freezer Temperature Validation System with 21 CFR Part 11 Secure Software |
| OM-CP-ULT90-9 and OM-CP-ULT90-15 |
|
 |
|
|
|
|
|
|
|
| • |
FDA 21 CFR Part 11 Compliant
|
| • |
IQ/OQ/PQ Validation Protocols
|
| • |
Splash Proof OM-CP-CRYO-TEMP Logger
|
| • |
-86 to 35°C (-122 to 95°F) Temperature Range
|
| • |
0.1°C Resolution and ±1.0°C Accuracy
|
| • |
1 Year Battery Life at -80°C (-112°F)
|
| • |
User-Programmable Temperature Alarms with LED’s (OK, Warn, and Alarm)
|
| • |
Hardware and Software Password Protection
|
| • |
Simultaneous Starts, Memory Wrap
|
| • |
User-Programmable Start Times, Sample Intervals, Logger Descriptions, Unique IDs
|
| • |
Ready to Use Right Out-of-the-Box
|
| • |
Free NIST Certification
|
View related products - Recorders
|
| |
|
|
|
 |
The OM-CP-ULT90 ultra low
temperature freezer validation
system can measure and log data
as low as
-86°C (-122°F). It can be
placed in small and large freezers of
varying configurations.
The system provides a complete
stand-alone temperature mapping
and validation solution for freezers
to ensure uniform storage and
testing conditions.

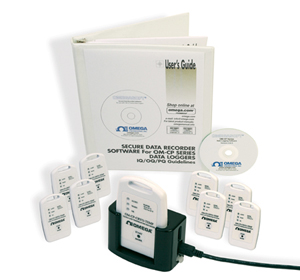

The OM-CP-ULT90 includes
a USB docking station with
1.8 m (6') of cable (OM-CP-IFC300),
the OM-CP-CRYO-TEMP data
logger, and FDA 21 CFR Part
11 Secure Software and IQ/OQ/PQ
validation protocols. For larger
freezers, loggers can be plotted in
one graph to show variances in
different parts of the freezer.
Finally, as failure to monitor external
freezer temperatures may invalidate
internal freezer temperatures, an
additional OM-CP-CRYO-TEMP can
be included for placement outside of
the freezer.
Specifications
TEMPERATURE
Sensor: NTC thermistor
Measurement Range:
-86 to 35°C (-112 to 95°F)
recommended, may be used
up to 55°C (131°F)
Resolution: 0.1°C
Calibrated Accuracy: ±1.0°C
Specified Accuracy Range:
-80 to 0°C (-62 to 32°F)
Memory: 32,767 readings; software
configurable memory wrap
Reading Rate: 5 seconds to
30 minutes, selectable in software
Start Modes: Software
programmable immediate start,
delay start up to 30 days in
advance or manual start with
magnetic switch
Temperature Alarm: Software
programmable high and low alarm
limits and high and low warn limits,
each setpoint may be individually
Alarm Delay: Software
programmable time delay for
warn/alarm limits; logger will not
indicate out of range status until the
temperature has been out of range
for a set period of time
Status Indicators:
Green: (OK) indicates safe
conditions during logging
Yellow: (Warn) indicates warn
limits have been exceeded
Red: (Alarm) indicates alarm
criteria (limits/delay) have
been exceeded
Password Protection: An optional
password may be programmed into
the device to restrict access to
configuration options; data may be
read out without the password
Calibration: Digital calibration is
available to the user through software
Calibration Date: Automatically
recorded within device
Battery Type: 3.6V lithium battery,
factory replaceable only (included)
Battery Life: 2 years typical
@ 25°C, 1 min. reading intervals;
1 year typical @-80°C, 1 min reading
intervals
Time Accuracy: ±2 minutes/month
max at 20 to 30°C ±5 minutes/month
max at -80°C (-112°F)
Data Format: Date and time stamped
°C, °F, K, °R
Computer Interface: USB docking
station to PC (OM-CP-IFC300) 38,400 baud
Software: XP SP3/Vista/7 and 8 (32-bit and 64-bit)
Operating Environment: -86 to 35°C (-123 to 95°F)
(may be used up to 55°C); 0 to 100% RH
Dimensions: 83 H x 54 W x 11 mm D
(3.3 x 2.1 x 0.4")
Ingress Protection/IP Rating:
IP64 (splash resistant, not submersible)
Enclosure: ABS plastic, white, polycarbonate labeling
Weight: 40 g (1.4 oz) each
Total Weight for Packages:
OM-CP-ULT90-9:
1443 g (50.9 oz)
OM-CP-ULT90-15:
1681 g (59.3 oz)
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with data loggers, NIST calibration certificates, USB docking station, batteries and Secure Software. For more information on the OM-CP-CRYO-TEMP, please visit omega.com.
|
|
|
|
|
| |
|
