Rechargeable Temperature Data Logger with USB Interface |
| OM-EL-USB-1-RCG |
|
 |
|
|

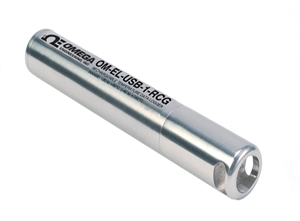

Rechargeable Temperature Data Logger with USB Interface
 |
| Click for larger image. |
|
|
¥
1,600.00
OM-EL-USB-1-RCG
|
| • |
316 SS NEMA 4X (IP67) Rated Case
|
| • |
USB Interface for Easy Setup and Data Download
|
| • |
Rechargeable Lithium-Ion Battery
|
| • |
Status LEDs Behind Protective Plastic Window
|
| • |
User-Programmable Alarm Thresholds
|
| • |
Immediate or Delayed Start Logging
|
| • |
Includes Windows® Control Software
|
View related products - Recorders
|
| |
|
|
|
 |
The OM-EL-USB-1-RCG data
logger measures and stores up
to 32,510 temperature readings
over a
-20 to 60°C (-4 to 140°F)
temperature range. The 316 SS
case with polycarbonate window
assembly is corrosion, impact and
water resistant to NEMA 4X (IP67)
standards. The unit is powered by
a lithium-ion rechargeable battery
which allows logging for up to
1 month.
The user can easily set-up the data
logger and download the stored
data by plugging the module straight
into a PC’s USB port and running
the easy-to-use Windows software.
Software selectable set-up
parameters include logging rate
(1 sec,
10 sec, 1 min, 5 min, 30 min,
1 hr, 6 hr, 12 hr), start-date/time,
and desired temperature units
(ºC or ºF). Data can then be
graphed, printed and exported to
other applications such as Excel.
Correct functioning of the unit is
indicated by flashing red and
green LEDs.
Specifications
Temperature Measurement Range: -20 to 60ºC (-4 to 140ºF)
Resolution: 0.1ºC (0.2ºF)
Accuracy: ±1.0ºC (±2.0ºF) typical
Temperature Units: ºC (ºF) selectable in software
Memory: 32,510 readings
Logging Interval: 1 sec, 10 sec,
1 min, 5 min, 30 min, 1 hr, 6 hr,
12 hr
(selectable in software)
Start Date/Time: Selectable in software
Alarm Thresholds: High/low
temperature alarm thresholds
selectable in software
Status Indicators (LEDs): Red and green
Operating Temperature Range: -20 to 60ºC (-4 to 140ºF)
Charging Temperature Range: 10 to 30ºC (50 to 86ºF)
Recharging Time: 5 hours max (the data logger must be
connected to an active USB port
to recharge
the battery)
Battery Life (Rechargeable Lithium-Ion): 1 week min
(at -20ºC, 1 sec logging interval);
4 weeks max (at 20ºC, 1 min
logging interval)
Software: Windows 2000/XP/Vista/7 and 8 (32-bit and 64-bit)
Power: Rechargeable lithium-ion battery (280 mAh)
Weight: 40 g (1.4 oz)
Dimensions: 92.7 L x 19.8 mm D (3.65 x 0.78")
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with rechargeable lithium-ion battery, Windows software on CD-ROM and USB cable.
Ordering Example: (1) OM-EL-USB-1-RCG Rechargeable temperature data logger with USB interface, ¥1,600.00
|
|
|
|
|
| |
|
