Thermocouple Data Logger with LCD Display and USB Interface |
| OM-EL-USB-TC-LCD |
|
 |
|
|

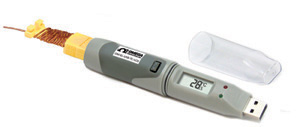

Thermocouple Data Logger with LCD Display and USB Interface
 |
| Click for larger image. |
|
|
¥
1,265.00
OM-EL-USB-TC-LCD
|
|
| |
|
|
|
 |
The OM-EL-USB-TC-LCD data logger measures and
stores up to 32,510 temperature readings from either a
Type J, K or T thermocouple which plugs into a
miniature female thermocouple receptacle at the base
of the unit. The data logger plugs directly into a PC’s USB port, no
USB cable is required. Three different functions are
available on the display, most recent logged
temperature, maximum logged temperature and
minimum logged temperature.
The push button on the data logger is used to cycle
through these functions. Data logger logging and alarm
status is indicated by flashing red and green LEDs.
Using the included Windows software, the user can
easily set up the initial data logging parameters
including thermocouple type, logging rate, start-time,
high/low alarm settings, logging mode and desired
temperature units (°C or °F), select the display mode
which includes display off, on for 30 seconds after
button press, or permanently on, data rollover (allows
unlimited logging periods by overwriting the oldest
data when the memory is full) and also download the
stored data. The downloaded data can then be
graphed, printed and exported to other applications
such as Excel.
Specifications
Temperature Measurement Range:
Type J: -200 to 1190°C (-328 to 2174°F)
Type K: -200 to 1350°C (-328 to 2462°F)
Type T: -200 to 390°C (-328 to 734°F)
Resolution (Internal and Displayed): 0.5°C (1°F)
Accuracy: ±1.0°C (±2.0°F)
Thermocouple Connection:
Female subminiature
thermocouple connector
Temperature Units: °C or °F selectable in software
Memory: 32,510 readings
Logging Interval: 1 sec, 10 sec, 1 min, 5 min, 30 min,
1 hr, 6 hr, 12 hr (selectable in software)
High/Low Alarms: Selectable in software
Start Date/Time: Selectable in software
Operating Temperature Range:
-10 to 40°C (14 to 104°F)
Visual Indicators (2 LEDs): The first LED flashes red
to indicate
that the data logger is in an alarm condition
(when temperature has
exceeded a high or low level
alarm limit); the second LED flashes green
to indicate
the data logger is not in an alarm condition
Software: Windows® 2000/XP/VISTA/7 (32-bit and 64-bit)
Power: 1/2 AA 3.6V lithium battery (included)
Battery Life: 6 months (at 25°C, dependent
on sample rate and use of LCD)
Weight: 114 g (4 oz)
Dimensions: See drawing on PDF
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with Windows software, operator’s manual on CD-ROM, protective cap, 3.6V lithium battery and Type K thermocouple.
This product page contains items that either have a Lithium Battery installed in the equipment or have a Lithium Battery packed with the equipment. These items as being regulated for air transportation. The following applies:
• No FX1D, FX2D or FX3D can be used as a ship method.
• Only UPS1, UPS2 or UPS3 is authorized.
• For International shipments UPS and DHL can be used. For DHL internationally – Omega only has permission to ship Lithium Batteries no other Hazardous Material.
Ordering Example: (1) OM-EL-USB-TC-LCD Thermocouple data logger with LCD display and USB interface, ¥1,265.00
|
|
|
|
|
| |
|
