Compact, Modular Analog I/O Card/Signal Conditioners

OM5:Compact, Low Cost, Modular Analog I/O Card/Signal Conditioners

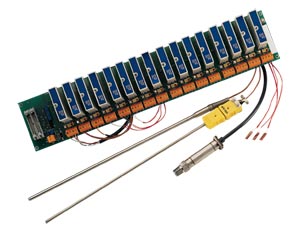

Click for larger image.

•	Rugged, Compact Economical Signal Conditioning & Data Acquisition
•	Replacement Model for 5B Device
•	1500 Vrms Transformation Isolation & 240 Vrms Field-Side Protection
•	Modular Design for Mix and Match Capability
•	Analog Input Modules for Direct Interface to Sensors and Analog Voltage and Current
•	Convenient Connection to User Equipment
View related products - Data Acquisition Plug-in Cards

As one of the best replacement/Upgrade model for famous 5B devices, the OM5 series modular signal conditioners provide a low cost, high performance method of inter-connecting real-world analog signals with data acquisition, monitoring or control systems. They are designed to interface directly to analog inputs such as thermocouples, RTDs, strain gages and voltage or process current signals. Individual OM5 modules convert these inputs to standardized analog outputs compatible with high-level analog I/O systems. The OM5 is designed to provide easy and convenient solutions to signal conditioning problems of both designers and end users in measurement and control applications. Typical uses include mini- and microcomputer-based measurement systems, standard data acquisition systems, recorders, and dedicated control systems. The OM5 is ideally suited to applications where monitoring and control of temperature, pressure, flow and other analog signals is required.

Specifications
Input Ranges: See ordering table
Common Mode Voltage, Input to Output:1500 Vrms max
Bandwidth:
OM5-II, OM5-IMV, OM5-ITC, OM5-IV, OM5-IP/IC/IN, OM5-LTC, OM5-PT: 4 Hz
OM5-WBS, OM5-WMV, OM5-WV: 10 KHz
Input (field) Protection: 240 Vrms max
Output Range: See ordering table
Output Current limit (input modules): ±14 mA max
Operating Temperature Range: -40 to 85°C
Module Dimensions: 2.28" x 2.26" x 0.60"(58 x 57 x15 mm)

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Frequency Input, 0 to 5 Vdc Output

OM5-IFI-500-C		Consult sales	Frequency input 0-500 Hz input range, 300 mS response	qty.

OM5-IFI-1K-C		Consult sales	Frequency input 0-1K Hz input range, 300 mS response	qty.

OM5-IFI-3K-C		Consult sales	Frequency input 0-3K Hz input range, 170 mS response	qty.

OM5-IFI-5K-C		Consult sales	Frequency input 0-5K Hz input range, 90 mS response	qty.

OM5-IFI-10K-C		Consult sales	Frequency input 0-10K Hz input range, 90 mS response	qty.

OM5-IFI-25K-C		Consult sales	Frequency input 0-25K Hz input range, 25 mS response	qty.

OM5-IFI-50K-C		Consult sales	Frequency input 0-50K Hz input range, 20 mS response	qty.

OM5-IFI-100K-C		Consult sales	Frequency input 0-100K Hz input range, 20 mS response	qty.


Linearized Thermocouple, 0-5V Output

OM5-LTC-J1-C		Consult sales	J T/C, 0 to 760°C input range	qty.

OM5-LTC-J2-C		Consult sales	J T/C, -100 to 300°C input range	qty.

OM5-LTC-J3-C		Consult sales	J T/C, 0 to 500°C input range	qty.

OM5-LTC-K1-C		Consult sales	K T/C, 0 to 1000°C input range	qty.

OM5-LTC-K2-C	2 Weeks	¥2,190.00	K T/C, 0 to 500°C input range	qty.

OM5-LTC-T1-C		Consult sales	T T/C ,-100 to 400°C input range	qty.

OM5-LTC-T2-C	2 Weeks	¥2,190.00	T T/C, 0 to 200°C input range	qty.

OM5-LTC-E-C		Consult sales	E T/C, 0 to 1000°C input range	qty.

OM5-LTC-R-C		Consult sales	R T/C, 500 to 1750°C input range	qty.

OM5-LTC-S-C		Consult sales	S T/C, 500 to 1750°C input range	qty.

OM5-LTC-B-C		Consult sales	B T/C, 500 to 1800°C input range	qty.


Voltage Input

OM5-IV-1A-C		Consult sales	±1 V input range, ±5 Vdc output range	qty.

OM5-IV-5A-C	2 Weeks	¥1,610.00	±5 V input range, ±5 Vdc output range	qty.

OM5-IV-10A-C		Consult sales	±10 V input range, ±5 Vdc output range	qty.

OM5-IV-1B-C		Consult sales	±1 V input range, 0-5 Vdc output range	qty.

OM5-IV-5B-C		Consult sales	±5 V input range, 0-5 Vdc output range	qty.

OM5-IV-10B-C		Consult sales	±10 V input range,0-5 Vdc output range	qty.

OM5-IV-20A-C		Consult sales	±20 Vdc input range, ±5 V output range	qty.

OM5-IV-40A-C		Consult sales	±40 Vdc input range, ±5 V output range	qty.

OM5-IV-20B-C		Consult sales	±20 Vdc input range, 0-5 V output range	qty.


Wideband Voltage, 10KHz Bandwidth

OM5-WV-1A-C		Consult sales	Wideband Voltage, ±1 V input range, ±5 Vdc output range	qty.

OM5-WV-5A-C	2 Weeks	¥1,610.00	Wideband Voltage,±5 V input range, ±5 Vdc output range	qty.

OM5-WV-10A-C		Consult sales	Wideband Voltage,±10 V input range, ±5 Vdc output range	qty.

OM5-WV-1B-C		Consult sales	Wideband Voltage, ±1 V input range, 0-5 Vdc output range	qty.

OM5-WV-5B-C		Consult sales	Wideband Voltage, ±5 V input range, 0-5 Vdc output range	qty.

OM5-WV-10B-C		Consult sales	Wideband Voltage, ±10 V input range, 0-5 Vdc output range	qty.

OM5-WV-20A-C		Consult sales	Wideband Voltage,±20 Vdc input range, ±5 Vdc output range	qty.

OM5-WV-40A-C		Consult sales	Wideband Voltage,±40 Vdc input range, ±5 Vdc output range	qty.


Millivolt Input

OM5-IMV-10A-C	2 Weeks	¥1,610.00	±10 mV input range, ±5 Vdc output range	qty.

OM5-IMV-50A-C	2 Weeks	¥1,610.00	±50 mV input range, ±5 Vdc output range	qty.

OM5-IMV-100A-C	2 Weeks	¥1,610.00	±100 mV input range, ±5 Vdc output range	qty.

OM5-IMV-10B-C		Consult sales	±10 mV input range, 0-5 Vdc output range	qty.

OM5-IMV-50B-C		Consult sales	±50 mV input range, 0-5 Vdc output range	qty.

OM5-IMV-100B-C		Consult sales	±100 mV input range, 0-5 Vdc output range	qty.


Wideband Millivolt Input, 10 kHz Bandwidth

OM5-WMV-10A-C		Consult sales	Wideband Millivolt, ±10 mV input range, ±5 Vdc output range	qty.

OM5-WMV-50A-C		Consult sales	Wideband Millivolt, ±50 mV input range, ±5 Vdc output range	qty.

OM5-WMV-100A-C		Consult sales	Wideband Millivolt, ±100 mV input range, ±5 Vdc output range	qty.

OM5-WMV-10B-C		Consult sales	Wideband Millivolt, ±10 mV input range, 0-5 Vdc output range	qty.

OM5-WMV-50B-C		Consult sales	Wideband Millivolt, ±50 mV input range, 0-5 Vdc output range	qty.

OM5-WMV-100B-C		Consult sales	Wideband Millivolt, ±100 mV input range, 0-5 Vdc output range	qty.


Current Input

OM5-II-4/20-C		Consult sales	4-20 mA input range, 0-5 Vdc output range	qty.

OM5-II-0/20-C	8 Weeks	¥1,610.00	0-20 mA input range, 0-5 Vdc output range	qty.


Wide Band Strain Gage Input, Isolated, ±5 Vdc Output

OM5-WBS-1-C	2 Weeks	¥1,920.00	Full Bridge Input ±30 mV @ 10V Exc., 300-10 kOhm, 10 kHz bandwidth	qty.

OM5-WBS-2-C	2 Weeks	¥1,920.00	Full Bridge Input ±20 mV @ 10V Exc., 300-10 kOhm, 10 kHz bandwidth	qty.


RTD Input, Output Range 0 to 5 V

OM5-IP-N100-C		Consult sales	RTD input, -100 to 100°C input range, 2 or 3 wire, alpha = 0.00385	qty.

OM5-IP-100-C		Consult sales	RTD input, 0 to 100°C input range, 2 or 3 wire, alpha = 0.00385	qty.

OM5-IP-200-C		Consult sales	RTD input, 0 to 200°C input range, 2 or 3 wire, alpha = 0.00385	qty.

OM5-IP-600-C		Consult sales	RTD input, 0 to 600°C input range, 2 or 3 wire, alpha = 0.00385	qty.

OM5-IP4-N100-C		Consult sales	RTD input, -100 to 100°C input range, 4 wire, alpha = 0.00385	qty.

OM5-IP4-100-C	8 Weeks	¥2,190.00	RTD input, 0 to 100°C input range, 4 wire, alpha = 0.00385	qty.

OM5-IP4-200-C		Consult sales	RTD input, 0 to 200°C input range, 4 wire, alpha = 0.00385	qty.

OM5-IP4-600-C		Consult sales	RTD input, 0 to 600°C input range, 4 wire, alpha = 0.00385	qty.


Backplanes

OM5-BP-16-C	2 Weeks	¥3,555.00	16-Channel OM5 backplane	qty.

OM5-BP-2-C	2 Weeks	¥765.00	2-Channel OM5 backplane	qty.

OM5-BP-SKT-C	2 Weeks	¥1,005.00	1-Channel OM5 backplane	qty.


Power Supplies

OM5-PRT-003	2 Weeks	¥4,325.00	3A, 5Vdc, 120Vac power supply	qty.


Accessories

OM7-IF	2 Weeks	¥920.00	Universal terminal board, requires OM5-CA-04-01 cable	qty.

OM5-CA-04-01	2 Weeks	¥425.00	1 meter 26-pin cable with two connectors to connect OM5-BP-16-C to OM7-IF	qty.

OMX-1363-C	8 Weeks	¥970.00	19" rack mount adapter	qty.

† Price are shown in RMB.

Note: Contact Engineering for custom configurations.

Part Number Builder

Option Descriptions

(1)

Input and Output Type

Select
DT for DC Displacement Transducer Input
LTC for Linearized Thermocouple Input
ITC for Non-Linearized Thermocouple Input
IP for RTD Input (Pt100 Ohm 2 or 3 Wire)
IC for RTD Input (Copper 2 or 3 Wire)
IN for RTD Input (Nickel 2 or 3 Wire)
IP4 for RTD Input (Pt100 Ohm 4 Wire)
IV for Voltage Input
IFI for Frequency Input
IMV for Millivolt Input
TC for 2-Wire Transmitter
PT for Potentiometer Input
WMV for Wideband Millivolt Input
WBS for Strain Gage Input
II for Current Input
WV for Wideband Voltage Input
IVI for Current Output

(2)

Input and Output Range

Select
1 for Input ±1 Vdc (DT Only)
2 for Input ±2 Vdc (DT Only)
3 for Input ±3 Vdc (DT Only)
4 for Input ±4 Vdc (DT Only)
5 for Input ±5 Vdc (DT Only)
6 for Input ±6 Vdc (DT Only)
7 for Input ±7 Vdc (DT Only)
8 for Input ±8 Vdc (DT Only)
9 for Input ±9 Vdc (DT Only)
10 for Input ±10 Vdc (DT Only)
J1 for Thermocouple Type J 0 to 760°C (LTC Only)
J2 for Thermocouple Type J 100 to 300°C (LTC Only)
J3 for Thermocouple Type J 0 to 500°C (LTC Only)
K1 for Thermocouple Type K 0 to 1000°C (LTC Only)
K2 for Thermocouple Type K 0 to 500°C (LTC Only)
T1 for Thermocouple Type T -100 to 400°C (LTC Only)
T2 for Thermocouple Type T 0 to 200°C (LTC Only)
E for Thermocouple Type E 0 to 1000°C (LTC Only)
R for Thermocouple Type R 500 to 1750°C (LTC Only)
S for Thermocouple Type S 500 to 1750°C (LTC Only)
B for Thermocouple Type B 500 to 1800°C (LTC Only)
J for Thermocouple Type J -100 to 760°C (ITC Only)
K for Thermocouple Type K -100 to 1350°C (ITC Only)
T for Thermocouple Type T -100 to 400°C (ITC Only)
E for Thermocouple Type E 0 to 900°C (ITC Only)
R for Thermocouple Type R 0 to 1750°C (ITC Only)
S for Thermocouple Type S 0 to 1750°C (ITC Only)
B for Thermocouple Type B 0 to 1800°C (ITC Only)
C1 for Thermocouple Type C 350 to 1300°C (ITC Only)
N1 for Thermocouple Type N -100 to 1300°C (ITC Only)
N100 for Input -100 to 100°C (IP and IP4 Only)
100 for Input 0 to 100°C (IP and IP4 Only)
200 for Input 0 to 200°C (IP and IP4 Only)
600 for Input 0 to 600°C (IP and IP4 Only)
120 for Input 0 to 120°C (IC Only)
300 for Input 0 to 300°C (IN Only)
1A for Input ±1 V (IV and WV Only)
5A for Input ±5 V (IV and WV Only)
10A for Input ±10 V (IV and WV Only)
1B for Input ±1 V (IV and WV Only)
5B for Input ±5 V (IV and WV Only)
10B for Input ±10 V (IV and WV Only)
20A for Input ±20 Vdc (IV and WV Only)
40A for Input ±40 Vdc (IV and WV Only)
20B for Input ±20 Vdc (IV and WV Only)
40B for Input ±40 Vdc (IV and WV Only)
500 for Input 0 to 500 Hz (IFI Only)
1K for Input 0 to 1 KHz (IFI Only)
3K for Input 0 to 3 KHz (IFI Only)
5K for Input 0 to 5 KHz (IFI Only)
10K for Input 0 to 10 KHz (IFI Only)
25K for Input 0 to 25 KHz (IFI Only)
50K for Input 0 to 50 KHz (IFI Only)
100K for Input 0 to 100 KHz (IFI Only)
10A for Input ±10 mV Output ±5 Vdc (IMV and WMV Only)
50A for Input ±50 mV Output ±5 Vdc (IMV and WMV Only)
100A for Input ±100 mV Output ±5 Vdc (IMV and WMV Only)
10B for Input ±10 mV Output ±0-5 Vdc (IMV and WMV Only)
50B for Input ±50 mV Output ±0-5 Vdc (IMV and WMV Only)
100B for Input ±100 mV Output ±0-5 Vdc (IMV and WMV Only)
100 for Input 100 Ohm (PT Only)
1000 for Input 500 Ohm (PT Only)
1K for Input 1K Ohm (PT Only)
10K for Input 10K Ohm (PT Only)
1 for Input 4 to 20 mA Output 1 to 5 Vdc (TC Only)
2 for Input 4 to 20 mA Output 2 to 10 Vdc (TC Only)
1 for Full Bridge Input ±30 mV @ 10 V Exc (WBS Only)
2 for Full Bridge Input ±20 mV @ 10V Exc (WBS Only)
3 for Half Bridge Input ±20 mV @ 10V Exc (WBS Only)
4/20 for Input 4 to 20 mA (II Only)
0/20 for Input 0 to 20 mA (II Only)
B0 for Input 0 to 5 Vdc Output 0-20 mA (IVI Only)
A0 for Input ±5 Vdc (IVI Only)
B4 for Input 0 to 5 Vdc Ouput 4-20 mA (IVI Only)
A4 for Input ±5 Vdc Ouput 4-20 mA (IVI Only)

(3)

Additional Option (IC Only)

Select
Nothing(leave field blank) for None
-01 for 10 Ohm @ 0°C
-02 for 10 Ohm @ 25°C

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
