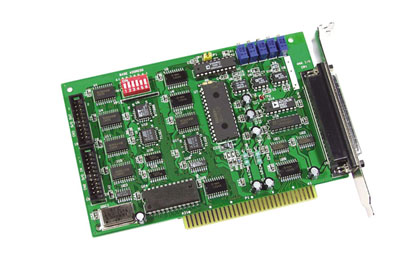

30 KS/s 12-Bit Analog and Digital I/O Board for the ISA Bus
 |
| Click for larger image. |
|
|
|
|
| • |
12-Bit A/D Converter
|
| • |
8 Single-Ended Input Channels
|
| • |
30 KS/s Sampling Rate
|
| • |
One 12-Bit Analog Output Channel
|
| • |
Software Programmable Gain: 1, 2, 4, 8, 16
|
| • |
A/D Trigger Modes: Software Trigger, Pacer Trigger
|
| • |
A/D Data Transfer Modes: Polling, Interrupt
|
| • |
16 Digital Inputs and 16 Digital Outputs
|
View related products - Data Acquisition Plug-in Cards
|
| |
|
|
|
 |
The OME-A-8111 is a 12-bit multifunction analog and digital I/O board
for PC/AT compatible computers.
The OME-A-8111 offers 8 analog
input channels, plus one channel of
analog output with 12-bit resolution.
In addition, the OME-A-8111 has
16 digital inputs and 16 digital
outputs. The OME-A-8111 provides
gains of 1, 2, 4, 8, 16. It has a
maximum sampling rate of 30 KS/s.
Software Development Kit
All boards are supplied with a
standard software development kit
for Windows 98/NT/2000/XP. The
software development kit includes
dll files for programming in C, C++
or other high level languages and
OCX files for Visual Basic or Active
X programming. LabView drivers
are also included.
Specifications
Analog Input Channels:
8 single-ended channels
Input Range: ±5 V, ±2.5 V,
±1.25 V, ±0.625 V, ±0.3125 V
Resolution: 12-bits
Conversion Rate: 30 KS/s
Input Impedance: 10 M .//6 pf
Overvoltage Protection: ±35 V
Linearity: ±1 bit
Sample & Hold: on chip
Zero Drift: ±25 ppm/°C of full scale
D/A OUTPUTS
Channels: 1 independent
Type: 12-bit double buffers
Linearity: 0.006% FS
Output Range: 0 to 5 V or 0 to 10 V
Internal Reference: +10 V or -10 V
Output Driving: ±5 mA
DIGITAL I/O
Input: 16 (LSTTL)
Input Low: VIL =0.8 V max
IIL =-0.4 mA max
Input High: VIH =2.0 V min
IIH =20 µA max
Outputs: 16 channel TTL levels
Outputs Low: VOL =0.5 V max
IOL =8 mA max
Outputs High: VOH =2.7 V min
IOH =-400 µa max
General Environmental
Power Requirements:
+5V @ 200 mA (max)
Operating Temperature: 0 to 50°C (32 to 122°F)
Storage Temperature: -20 to 70°C (-4 to 176°F)
Humidity :0 to 90% RH non-condensing
Dimensions: 157 H x 106 mm W
(6.18 x 4.17")
|
|
|
|
|
|
† Price are shown in RMB.
Note: All boards include utility software and a complete user’s manual on CD-ROM.
