125 KS/s 16-Channel 12-Bit Analog Input Board with Analog Output and Digital I/O for the ISA Bus |
| OME-A-822PGL and OME-A-822PGH |
|
 |
|
|
|
|
|
|
|
| • |
12-Bit A/D Converter
|
| • |
16 Single-Ended or 8 Differential Input Channels
|
| • |
125 KS/s Sampling Rate
|
| • |
Two 12-Bit Analog Output Channels
|
| • |
Analog Output Range: 0-5 V, 0-10 V
|
| • |
Software Programmable Gain
|
| • |
A/D Trigger Modes: Software Trigger, Pacer Trigger, External Trigger, Event Trigger
|
| • |
A/D Data Transfer Modes: Poling, Interrupt, DMA
|
| • |
16 Digital Inputs and 16 Digital Outputs
|
View related products - Data Acquisition Plug-in Cards
|
| |
|
|
|
 |

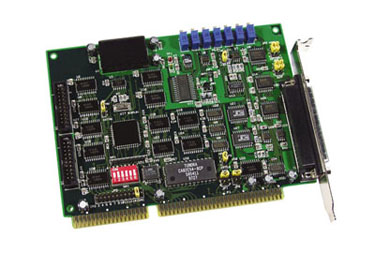

The OME-A-822PGH/L are 12-bit
multifunction analog and digital I/O
boards for PC/AT compatible
computers. The OME-A-822PGH/L offers
16 single-ended or 8 differential
analog inputs, plus two channels
of analog output with 12-bit
resolution. In addition,the
OME-A-822PGH/PGL has 16
digital inputs, 16 digital outputs
and one counter/timer channel.
The OME-A-822PGH provides
gains of 0.5, 1, 5, 10, 50, 100,
500 and 1000 while the
OME-A-822PGL provides gains
of 0.5, 1 ,2, 4 and 8. It has a
maximum sampling rate of
125 KS/s, DMA operation is
jumper selectable for levels 1 or 3.
Interrupts are jumper selectable
between 3 and 15.
Software Development Kit
All data acquisition boards are
supplied with a standard software
development kit for Windows
98/NT/2000/XP. The software
development kit includes DLL files
for programming in C, C++ or other
high level languages and OCX files
for Visual Basic or Active X
programming. LabView drivers are
also included.
Specifications
Analog Input Channels:
16-channel single-ended
or 8-channel differential
Resolution: 12-bits
Conversion Rate: 125 KS/s
Input Impedance: 10,000 M Ω//6pf
Overvoltage Protection: +35 V
Linearity: ±1-bit
Sample & Hold: on chip
Zero Drift: ±25 ppm /°C of full scale
D/A OUTPUTS
Channels: 2 independent
Type: 12-bit double buffers
Linearity: 0.006% FS
Output Range: 0 to 5 V or 0 to 10 V
Internal Reference: +10 V or -10 V
Output Driving: ±5 mA
DIGITAL I/O
Input: 16 (LSTTL)
Input Low: VIL =0.8 V max
IIL =-0.4 mA max
Input High: VIH =2.0 V min
IIH =20 µA max
Outputs: 16 channel TTL levels
Outputs Low: VOL =0.5 V max
@IOL =8 mA max
Outputs High: VOH =2.7 V min
IOH =-400 µA max
COUNTER/TIMER
Programmable Internal Timer:
0.0045 Hz to 0.5 MHz
Type: 82C54
A/D Pacer: 32-bit counter
General
Environmental
Power Requirements:
±5 V @350 mA (max)
Operating Temperature:
0 to 50°C (32 to 122°F)
Storage Temperature:
-20 to 70°C (-4 to 158°F)
Humidity: 0 to 90% RH
non-condensing
Dimensions:
122 H x 170 mm W (4.8 x 6.7")
Connector: analog I/O,
37-pin D-Sub; digital I/O,
two 20-pin headers,
(the
20-pin digital I/O headers
can be extended to the PC
slot window
by using the
OME-ADP-20/PCI adaptor)
|
|
|
|
|
|
† Price are shown in RMB.
Note: Includes utility software and complete operator’s manual on CD ROM.
