100 S/s 16-Channel 16-Bit Analog Input Board for the ISA Bus |
| OME-A-826PG |
|
 |
|
|
|
|
|
|
|
| • |
16-Bit A/D Converter
|
| • |
12-Bit D/A Converter
|
| • |
16 Single-Ended or 8 Differential Inputs
|
| • |
100 KS/s Sampling Rate
|
| • |
Two 12-Bit Analog Output Channels
|
| • |
A/D Data Transfer Modes: Polling, Interrupt, DMA
|
| • |
16 Digital Input & 16 Digital Outputs
|
View related products - Data Acquisition Plug-in Cards
|
| |
|
|
|
 |

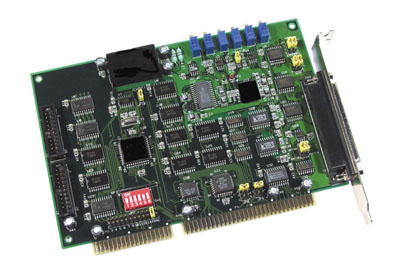

The OME-A-826PG is a 16-bit
multifunction analog and digital I/O
board for PC/AT compatible
computers. The OME-A-826PG
offers 16 single-ended or 8
differential analog inputs, plus two
channels of analog output with
12-bits resolution. In addition,
the OME-A-826PG has 16 digital
inputs, 16 digital outputs and one
counter/timer channel. The
OME-A-826PG provides gains
of 1, 2, 4 and 8. It has a maximum
sampling rate of 100 KS/s. DMA
operation is jumper selectable for
levels 1 or 3. Interrupts are jumper
selectable between 3 and 15.
Software Development Kit
All data acquisition boards are
supplied with a standard software
development kit for Windows
98/NT/2000/XP. The software
development kit includes DLL files
for programming in C, C++ or other
high level languages and OCX files
for Visual Basic or Active X
programming. LabView drivers are
also included.
Specifications
ANALOG INPUT
Channels: 16-channel single-ended or 8-channel differential
Input Ranges: +10 V, +5 V, +2.5 V, +1.25 V
Resolution: 16-bits
Conversion Rate: 100 KS/s
Input Impedance: 10,000 Ω//6pf
Overvoltage Protection: +35 V
Linearity: +1-bit
Sample & Hold: on chip
Zero Drift: 19 ppm/°C of full scale
D/A OUTPUTS
Channels: 2 independent
Type: 12-bit double buffers
Linearity: 0.006% FS
Output Driving: 5 mA
Output Range:
0 to 5 V or 0 to 10 V
External Reference: Max +10 V
Output Current: +5 mA
DIGITAL I/O
Inputs: 16 (LSTTL)
Input Low: VIL = 0.8 V max
IIL = -0.4 mA max
Input High: VIH = 2.0 V min
IIH = 20 µA max
Outputs: 16 channel TTL levels
Outputs Low: VOL = 0.5 V max
@ IOL = 8 mA max
Outputs High: VOH = 2.7 V min
IOH = -400 µA max
COUNTER/TIMER
Programmable Internal Timer:
(0.0045 Hz 0.5 MHz)
Type: 82C54
A/D Pacer: 16-bit counter
Interrupt Channel:
3-15 jumper selectable
General Environmental
Power Requirements: +5 V @650 mA (max)
Operating Temperature:
0 to 50°C (32 to 172°F)
Storage Temperature:
-20 to 70°C (-4 to158°F)
Software: Windows 95/98/NT
Humidity: 0 to 90% RH non-condensing
Dimensions: 122 H x 170 mm W (4.8 x 6.7")
Connector: analog I/O, 37-pin D-Sub;
digital I/O, two 20-pin headers
|
|
|
|
|
|
† Price are shown in RMB.
Note: Each OME-A-826PG includes complete operator’s manual and software development kit on CD ROM.
