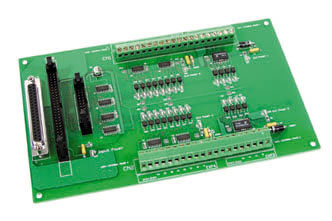

The OME-DB-24C has 24 channels
of optically isolated digital outputs,
arranged into four isolated banks.
Each digital output offers a
darlington transistor and integral
suppression diode for inductive
load. The board interfaces to field
logic signals, eliminating ground-loop
problems and isolating the host
computer from damaging voltages.
The OME-DB-24C has one 37-pin
D-sub connector, one 50-pin male
and one 20-pin male connector.
The transistor is energized by
applying a 5 V signal to the
appropriate input channel on the
50-pin connector, 20-pin flat cable
connector or 37-pin D-sub
connector. Twenty-four enunciator
LED’s, one for each transistor
is activated.
Specifications
Voltage Load: 5-24 Vdc (external) Channel 1-4 and 13-16: 600 mA
per channel (max. load current) Channel 6-12 and 17-24: 100 mA
per channel (max. load current) Power Consumption:
+5 V @0.4 A max, PC powered Dimensions:
130 H x 220 mm W (5.1 x 8.7") Operating Temperature:
0 to 60°C (32 to 140°F) Storage Temperature:
-20 to 70°C (-4 to 158°F) Humidity: 5 to 90%
RH non-condensing
† Price are shown in RMB.
Note: Each board includes complete operator’s manual on CD ROM. OMEGACARESM extended warranty program is available for models shown on this page. Ask your sales representative for full details when placing an order. OMEGACARESM covers parts, labor and equivalent loaners Ordering Example: (1) OME-DB-24C 24-channel open-collector output board, includes 1.5 m (5') 50-pin flat cable, ¥3,565.00
