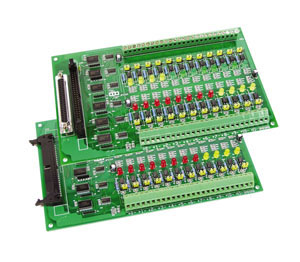

The OME-DB-24P is a 24 channel
isolated digital input daughter board
for OME-PIO-D144 digital input
board. The optically isolated inputs
of the OME-DB-24P consist of a bi-directional opto-couples with a
resistor for current sensing. You can
use the OME-DB-24P to sense DC
signals from TTL levels up to 24 V.
You can also use OME-DB-24P to
sense a wide range of AC signals.
The OME-DB-24P registers a
constant logic high if the frequency
of the input AC signal is greater or
equal to 1 kHz, and if the voltage of
the AC signal is at least 4 Vrms. If
you are using an AC input signal,
you must short the AC filter jumper.
You can use the board to isolate the
computer from large common-mode
voltages, ground loops and voltage
spikes that often occur in industrial
environments.
Specifications
I/O CONNECTOR ELECTRICAL
SPECIFICATIONS
Configuration: 24 optically isolated
digital input channels Compatibility: TTL compatible Connector: OME-DB-24P, one
50-pin header; OME-DB-24PD, one 50-pin header and one 37-pin
D-sub connector
DIGITAL INPUT
Number of channels: 24, each with
its own ground reference isolated
from other channels Maximum Input Voltage:
24 Vdc or 24 Vac Input Impedance: 1.2 K Ω
SOURCE CURRENT
5 V inputs: 4 mA per
channel (min) 24 V inputs: 20 mA per
channel (min) Response Time: 20 µs
without filter/2.2 ms with filter Power Supplies:
+5 V @336 mA max Dimensions:
132 H x 220 mm W
(5.2 x 8.7") Operating Temperature: 0 to 60°C
(32 to 140°F) Storage Temperature: -20 to 70°C
(-4 to 175°F) Humidity: 5 to 90%
RH non-condensing
† Price are shown in RMB.
Note: Each board is supplied with complete operator’s manual on CD ROM. OMEGACARE extended warranty program is available for models shown on this page. Ask your sales representative for full details when placing an order. OMEGACARE covers parts, labor and equivalent loaners Ordering Example: (1) OME-DB-24P 24-channel OPTO-22 compatible opto-isolated input board, includes 1.5 m (5') 50-pin flat cable, ¥4,470.00,
