24-Channel Relay Output Board
OME-DB-24R and OME-DB-24RD
1 year warranty OmegaCare

24-Channel Relay Output Board
OME-DB-24R and OME-DB-24RD:24-Channel Relay Output Board

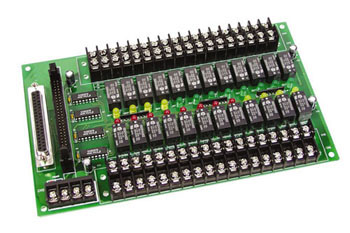

Click for larger image.

¥ 3,910.00  OME-DB-24R/12
• 24 Form C SPDT Relays
• OPTO-22 Compatible Connector
• Connects Directly to OME-DIO-24, OME-DIO-48, OME-DIO-144 or Other OPTO-22 Compatible Digital Output Board
• Switch up to 0.5A at 120 Vac; Switch up to 1A at 24 Vdc
• On Board Relay Driver Circuits
• LED ’s Indicate Relay Status
• Screw Terminals for easy Field Wiring

View related products - Signal Conditioners

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

The OME-DB-24R consists of 24 form C, electromechanical relays for efficient switching of load by programmed control. The contact of each relay can control a 0.5 A /110 V load or 1 A/24 Vdc. The relay is energized by applying a 5 V signal to the appropriate relay channel on the 50-pin OPTO-22 compatible connector or 37-pin D-Sub connector. Twenty-four enunciator LED’s, one for each relay, light when their associated relay is activated. To avoid overloading your PC ’s power supply, this board needs a +12 Vdc or +24 Vdc external power supply.

Specifications
Relay Type: 24 form C SPDT
Nominal Load: 0.5 A @120 Vac,1A @24 Vdc
Maximum Switching Power: 60 VA,24 W
Maximum Switching Voltage: 120 Vac,60 Vdc
Maximum Switching Current: 1A
Life Expectancy: mechanical (2 x 107), electrical (2 x 105)
Time Value: operate (6 ms)
Control Logic: input TTL high (+5 V)current, relay on
Power Consumption: +12 V @528 mA max; +5 V @150 mA max
Dimensions: 132 H x 225 mm W (8.1 x 4.5")
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Humidity: 5 to 90% RH non-condensing
Connector: OME-DB-24, one 50-pin header; OME-DB-24RD,
one 50-pin header and one 37-pin D-sub connector
