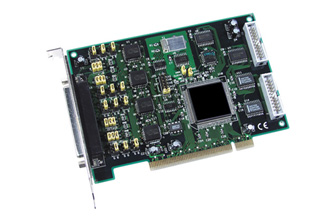

The OME-PCI-TMC12 is a
PCI-Bus general purpose counter/
timer and digital I/O board. It
provides twelve 16-bit counter/
timer channels. Two internal clock
sources (8M /1.6M and 0.8M /
80K) are selected by jumper.
Four 8254 chips provide a variety
of powerful counter/timer function
modes to match your industrial
and laboratory applications.
Software Development Kit
All boards are supplied with a
standard software development kit
for Windows XP/Vista/7. The
software development kit includes
dll files for programming in C, C++
or other high level languages and
OCX files for Visual Basic or
Active X programming. LabView
drivers are also included.
Specifications Input/Output Level: TTL Input Logic High Voltage:
2.0 V (min)/5.0 V (max) Input Logic Low Voltage:
-5.0 V (min)/0.8 V (max) Input Load Current:
-0.45 mA (min)+70 µa Output Sink Current:
+64 mA (max) Input Source Current: -15 mA Power Consumption:
+5 V @500 mA max Operating Temperature:
0 to 60°C (32 to 140°F) Storage Temperature:
-20 to 80°C (-4 to 176°F) Humidity: 0 to 90%
RH non-condensing Dimensions:
105 H x 150 mm L (4.1 x 5.9") Connector: Counter/timers,
37-pin D-sub; digital I/O, two
20-pin headers
† Price are shown in RMB.
Note: OMEGACARE extended warranty program is available for models shown on this page. Ask your sales representative for full details when placing an order. OMEGACARE covers parts, labor and equivalent loaners. Each OME-PCI-TMC12 data acquisition board includes complete operator ’s manual and software development kit on CD ROM.
