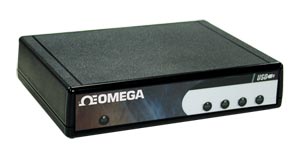

The OMG-USB-232 USB to serial
I/O adaptors provide two, four or
eight RS-232 serial ports for USB
connectivity to legacy or non-USB compliant devices. OMB-USB-232
adaptors support standard PC data rates up to 460K bps.
Simply install the included software and connect the OMB-USB-232
adaptor to your USB port. The device is immediately recognized
by the system. At that point, simply connect the adaptor to your target
device (i.e. modem, serial printer, scale, bar code/mag stripe
reader, etc.).
Now your non-USB peripherals can have the same connection
simplicity and ease of use as USB aware peripherals. We include our
Windows 98/ME/2000/XP and Linux drivers to simplify installation.
Specifications
Number of Ports: 2, 4 or 8 Max. Data Rate: 460K Max. Data Distance: Up to 15 m (50') Operating Temperature:
0 to 50°C (32 to 122°F) Storage Temperature:
-50 to 105°C (-58 to 221°F) Humidity Range: 10 to 90% RH non-condensing Power: USB cable Connector(s): 2, 4 or 8 DB9P (male) Dimensions: OMB-USB-232-2, -4;
17.78 L x 13.34 W x 3.81 cm H (7.0 x 5.25 x 1.5") OMB-USB-232-8;
22.1 L x 15.5 W x 5.1 cm H (8.7 x 6.1 x 2.0")
† Price are shown in RMB.
Note: All OMG-USB-232 converters include utility software and a complete user’s manual on CD-ROM, and an OMG-CA179 USB cable
