Handheld Design Infrared Thermocouples with Roller, Swivel, and Right-Angle Styles |
| OS-88000 and OS-98000 Series |
|
 |
|
|

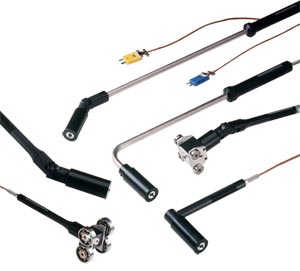

Handheld Design Infrared Thermocouples
 |
| Click for larger image. |
|
|
|
|
| • |
Thermocouple Output for Compatibility with Thermocouple Meters and Controllers
|
| • |
Well Suited for Non-contact Measurement Applications
|
| • |
Right Angle and Swivel Head Probes for Hard-To-Reach Locations
|
| • |
Roller Probes Available for Moving Surfaces
|
| • |
Probes Include 5 Ft. PFA Shielded Cable
|
| • |
GMP Low Noise Miniature Connector Standard
|
| • |
TAS Adapter Sold Separately!
|
View related products - Infrared Temperature Measurement Instruments
|
| |
|
|
|
 |
Model OS-88202-(*)-(#) (Shown)
Model OS-98202-(*)-(#) With Swivel Head
A roller-surface probe, ideal for
measuring outside wall temperatures.
Can be used on moving or rotating
surfaces of 560 to 1500 mm (22 to 60")
dia., with 90 m (300 ft) per min. max
surface velocity. Max. 200°C (400°F)
surface temperature.
|
|
|
Model OS-88010-(*)-(#)
Model OS-98010-(*)-(#) With Swivel Head (Shown)
Long, 300 mm (12") reach probe. For
use on ovens and furnaces. 160°C
(325°F) max. surface temperature
|
|
|
Model OS-88107-(*)-(#)
Right angle, long reach probe
with 200 mm (8") sheath
length. 160°C (325°F) max.
surface temperature
|
|
|
Model OS-88201-(*)-(#)
Model OS-98201-(*)-(#) With Swivel Head(Shown)
A roller-surface
probe, for use on
moving or rotating, smooth surfaces
with velocity up to 60 m (200')
per minute. 200°C (400°F)
max. surface
temperature.
|
|
|
Model OS-88101-(*)-(#)
Right angle design for
hard-to-reach inside
surfaces. For
measuring
stationary surface
temperatures.
160°C (325°F) max.
surface temperature.
|
|
|
Model OS-88001-(*)-(#)
Model OS-98001-(*)-(#) With Swivel Head (Shown)
Standard probe for stationary
surface measurements.
Suited to molds, plates,
walls, glassware, etc.
160°C (325°F) max.
surface temperature.
|
|
|
Range Chart
Range
Code
|
Temperature
Range
|
| -50F
|
-18 to 27°C (0 to 80°F)
|
| - 80F
|
10 to 49°C (50 to 120°F)
|
| -98.6F
|
16 to 39°C (60 to 102°F)
|
| -140F
|
25 to 80°C (80 to 180°F)
|
| -180F
|
70 to 104°C (160 to 220°F)
|
| -240F
|
95 to 130°C (200 to 270°F)
|
| -280F
|
125 to 155°C (260 to 310°F)
|
| -340F
|
145 to 175°C (290 to 350°F)
|
| -440F
|
170 to 250°C (340 to 480°F)
|
* Specify Calibration: J, K, T or E.
# Specify Range code from Range Chart above
Caution: This product and all in the series are not for use in medical evaluations.
These products cannot be used to measure body temperature. They are meant for industrial and scientific purposes.
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) OS-88001-K-140F Handheld infrared thermocouple for stationary surface measurements. Type K thermocouple, 25 to 80°C (80 to 180°F ) range, ¥3,575.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Probe Style
|
| |
Select
OS-88202 for Roller-surface probe
OS-98202 for Roller-surface probe with swivel head
OS-88010 for Long reach probe
OS-98010 for Long reach probe with swivel head
OS-88201 for Roller-surface probe for smooth surfaces
OS-98201 for Roller-surface probe for smooth surfaces with swivel head
OS-88107 for Right angle long reach probe
OS-88101 for Right angle probe
OS-88001 for Standard probe
OS-98001 for Standard probe with swivel head
|
(2)
|
Output
|
| |
Select
J for J Thermocouple
K for K Thermocouple
T for T Thermocouple
E for E Thermocouple
|
(3)
|
Temperature Range
|
| |
Select
50F for -18 to 27°C(0 to 80°F)
80F for 10 to 49°C (50 to 120°F)
98.6F for 16 to 39°C (60 to 102°F)
140F for 25 to 80°C (80 to 180°F)
180F for 70 to 104°C (160 to 220°F)
240F for 95 to 130°C (200 to 270°F)
280F for 125 to 155°C (260 to 310°F)
340F for 145 to 175°C (290 to 350°F)
440F for 170 to 250°C (340 to 480°F)
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
