Infrared Temperature Sensor and Transmitters
 |

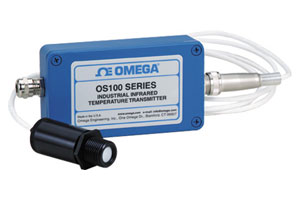

| Click for larger image. |
|
|
|
|
| • |
Temporarily unavailable - please contact customer service for a suggested replacement
|
| • |
-18 to 538°C (0 to 1000°F) Temperature Range
|
| • |
Adjustable Emissivity from 0.10 to 1.0
|
| • |
Fast, Accurate, Repeatable Readings
|
| • |
Type K Thermocouple, 0 to 5 Vdc, 0 to 10 Vdc, 4 to 20 mA, or 1 mV/Deg Analog Output Models
|
| • |
Built-In °C/°F-Switchable
|
| • |
LED Display Model Available
|
| • |
Rugged, Miniature Industrial Enclosure with Remote Sensor Head
|
| • |
User-Adjustable High or Low Alarm Output
|
| • |
PC Interface Standard on All Models
|
| • |
OS100-SOFT Data Acquisition and Real- Time Temperature Display Software
|
| • |
NEMA 4 (IP65) Rated Aluminum Housing
|
| • |
Models with High- Temperature Sensor Head Available
|
View related products - Infrared Temperature Measurement Instruments
|
| |
|
|
|
 |
OMEGA’s new OS100E Series
miniature infrared transmitters measure
a temperature range of -18 to 538°C
(0 to 1000°F). They consist of a
remotely mounted infrared sensor
head connected to a high-performance,
microprocessor-based signal
conditioner. The miniature sensor
head is ideal for measuring
temperature in confined, hard-to-reach
places and harsh environments.
The sensor head is connected to
the main electronics housing via a
1.8 m (6') shielded cable. The signal
conditioner’s main electronics are
mounted in a rugged NEMA 4 (IP65)
rated die-cast aluminum housing.
Model OS102E includes a built-in
LED display that is switchable
between °C and °F. Standard
features include adjustable emissivity,
field-adjustable alarm output, and
RS232 PC interface. The unit has
analog outputs such as 4 to 20 mA,
0/5 Vdc, 0/10 Vdc, 1 mV/degree, and
Type K thermocouple.
SPECIFICATIONS
Temperature Range: -18 to 538°C (0 to 1000°F)
Accuracy: ±2% rdg or 2.2°C (4°F), whichever is greater; ( @ 22°C (72°F) Ambient Temperature and Emissivity ≥0.95
Optical Field of View: 6:1 (distance/spot size)
Sensor Head Cable Extension: Up to 15 m (50') total
Repeatability: ±1% rdg
Spectral Response: 5 to 14 microns
Response Time: 100 ms (0 to 63% of final value)
Emissivity Range: 0.1 to 1.00, adjustable
Display Option (102E): 4-digit LED, °C/°F switchable
Operating Ambient:
Main Transmitter: 0 to 50°C (32 to 122°F)
Sensor Head: 0 to 70°C (32 to 158°F)
Sensor Head (-HT Model): 0 to 85°C (32 to 185°F)
Sensor Head with OS100-WC (Water Cooling Jacket): 0 to 200°C (32 to 392°F)
Relative Humidity: Less than 95% RH, non-condensing
Water Flow Rate for OS100-WC: 0.25 GPM, room temperature
Thermal Shock: About 30 minutes for 25°C (77°F) abrupt ambient temperature change
Warm-Up Period: 3 minutes
Air Flow Rate for OS100-AP: 1 CFM (0.5 L/s)
Power: 12 to 24 Vdc @ 150 mA
PC Communications: Serial RS232, 2-way
Analog Outputs:
MV: 1 mV/degree
K: K Type thermocouple
MA: 4 to 20 mA
V1: 0 to 5 Vdc
V2: 0 to 10 Vdc
Output Load Requirements:
Min Load: 1 kΩ (0 to 5 Vdc), 2 kΩ (0 to 10 Vdc)
Max Load (4 to 20 mA): (supply power - 4)/20 mA
Transmitter Housing: NEMA 4 (IP65), die-cast aluminum
Sensor Head Housing: NEMA 4 (IP65), aluminum
Alarm Output: Open drain, 100 mA
Alarm Setpoint: 0 to 100%, adjustable
Alarm Deadband: 5.5°C (10°F)
Dimensions:
Sensor Head: 25.4 OD x 63.5 mm L (1 x 2.5")
Main Housing: 65.5 W x 30.5 H x 115.3 mm L (2.58 x 1.2 x 4.54")
Weight: 272 g (0.6 lb)
LASER SIGHT ACCESSORY (OS100-LS)
Wavelength (Color): 630 to 670 nm (red)
Operating Distance (Laser Dot): Up to 9.1 m (30')
Max Output Optical Power: Less than 1 mW @ -6°C (22°F) ambient temperature
European Classification: Class 2, EN60825-1/11.2001
Max Operating Current: 45 mA @ 3 Vdc
FDA Classification: Complies with 21 CFR 1040.10, Class II Laser Product
Beam Diameter: 5 mm
Beam Divergence: <2 mrad
Operating Ambient: 0 to 50°C (32 to 122°F); <95% RH, non-condensing
Power Switch: On/off slide switch on the battery pack
Power Indicator: Red LED
Power: Battery pack, 3 Vdc (consists of two 1.5 Vdc "AA")
Software (included): Requires Windows 98 or newer operating system
|
|
|
|
|
|
† Price are shown in RMB.
Note: Each model comes with sensor head and 1.8 m (6') cable, sensor head mounting nut, main electronics housing, user software and operator’s manual.
Ordering Example: (1) OS100-CA15FT 4.6 m (15') sensor head extension cable, ¥495.00, plus (1) OS100-LS laser sighting accessory, ¥2,485.00, plus (1) OS101E-MA transmitter with 4 to 20 mA output,, ¥3,890.00, ¥495.00 + 2,485.00 + 3,890.00 = $6,870.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
IR Temperature Sensor/Transmitters
|
| |
Select
101 for IR Transmitters
102 for IR Transmitters with built-in LED display
|
(2)
|
Output
|
| |
Select
MV for 1 mV/°C or °F
V1 for 0 to 5 Vdc
V2 for 0 to 10 Vdc
MA for 4 to 20 mA
K for Type K thermocouple
|
(3)
|
Additional Option
|
| |
Select
Nothing(leave field blank) for None
-HT for High-temperature sensing head
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
