Fixed Infrared Temperature Sensor With RS485 MODBUS® RTU Interface and a broad selection of Field of Views |
| OS210-C4 Series |
|
 |
|
|
|
|
|
|
|
| • |
Wide Temperature Range from -20 to 500°C (-4 to 932ºF)
|
| • |
Built-In RS485 MODBUS RTU Interface
|
| • |
Configurable Emissivity Setting and Signal Processing
|
| • |
Max, Min Average and Instantaneous Readings; Peak or Valley Hold; Reflected Energy Compensation
|
| • |
2:1, 15:1, 30:1 or Close Focus Optics
|
| • |
Fast Response with High Stability
|
| • |
Stainless Steel Housing, Sealed to IP65
|
| • |
Quick and Easy Installation
|
| • |
Optional Air/Water Cooled Housing, Air Purge Collar, Laser Sighting Tool and Mounting Brackets
|
| • |
Optional DP240 Touch-Screen Terminal for Configuring and Displaying Data from Up to 8 IR Sensors
|
View related products - Infrared Temperature Measurement Instruments
|
| |
|
|
|
 |
The OS211 Series is a range of high quality, low cost,
compact sensors which measure the temperature of
inaccessible or moving objects and materials. They
measure temperatures from -20 to 500°C (-4 to 935ºF),
accurately and consistently, with an outstanding
response time of 240 ms. Two-way digital
communications via a built-in RS485 MODBUS RTU
interface enables the user to adjust the emissivity
setting; compensate for reflected energy; apply
filtering; select maximum and minimum, average or instantaneous readings; and peak or valley hold
processing. Up to 32 sensors can be installed on a
single multidrop network. All the IR sensors are fitted
with precision germanium lenses for accurate optics.
These compact sensors are small enough to fit almost
anywhere and their rugged stainless steel housings
make them ideal for applications where cleanliness
and hygiene are paramount.

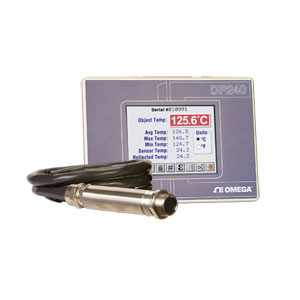

The optional DP240 is a 320 x 240 pixel touch screen
terminal with a 89 mm (3.5") color TFT display. It
allows the user to display data from up to eight
infrared sensors and configure each sensor
individually. The configuration parameters include
emissivity setting, signal averaging, peak or valley
hold processing and reflected energy compensation.
There are two versions available. Each one provides
all of the features above, however, the enhanced
DP240-AR also provides analogue transmission for
up to 4 sensors, plus two adjustable alarm outputs
per sensor for all 8 sensors.
SPECIFICATIONS(OS211)
Temperature Range: -20 to 500°C (-4 to 932°F)
Interface: RS485 MODBUSR RTU
Accuracy: ±1% of reading or ±1°C whichever is greater
Repeatability: ±0.5% of reading or ±0.5°C whichever is greater
Emissivity: 0.2 to 1.0
Response Time, t90: 240 ms (90% response)
Spectral Range: 8 to 14 µm
Supply Voltage: 12 Vdc nominal (6 to 13 Vdc)
Supply Current: 50 mA max
Baud Rate: 9600 baud*
Format: 8 data bits, no parity, 1 stop bit* Mechanical
Construction: Stainless steel
Dimensions: 18 D x 103 mm L (0.70 x 4.05")
Thread Mounting: m16 x 1 mm pitch
Cable Length: 1 m (3.3') (longer lengths available to order)
Weight with Cable: 95 g (3.35 oz) Environmental
Rating: NEMA (IP65)
Ambient Temperature: 0 to 70°C (32 to 158°F)
Relative Humidity: 95% max non-condensing
*Other configurations available upon request
SPECIFICATIONS(DP240)
Display: LCD type TFT 320 x 240, 3.5" touch screen resistive
Supply Voltage: 12 to 24 Vdc
Power Consumption: 8 W
Ambient Temperature Range: 0 to 45°C (32 to 113°F)
Relative Humidity: 35 to 95%, non-condensing
Environmental Rating: (IP54) front, (IP30) housing
Dimensions:
DP240: 140 W x 100 T x 44 mm D
DP240-AR: 140 W x 100 T x 65 mm D
Outputs: (DP240-AR only) 4 analogue outputs, 0 to 10 Vdc, 16 programmable alarm outputs, 12/24 Vdc, 700 mA, (3 a max per block of 8 outputs)
Hardware and Software Data Serial Port EXP1: RS485 MODBUS RTU interface for infrared sensors
Serial Port COM2: RS485/RS232 interface for second display (read only)
|
|
|
|
|
|
† Price are shown in RMB.
Note: Add -WC for air/water cooled jacket, add suffix to model number (includes air purge collar), must be ordered with sensor; cannot be retrofitted
Add -CE(*) 4 Cable extended, for uncooled IR USB series, 30 m (98') max total cable length
Add -CEHT(*) 13 Cable extended, high temperature, for cooled IR USB series, 30 m (98') max total cable length
* 1 m (3.3') cable is included as standard on every sensor. Extended cable is added to that length, add suffix to model number. Insert cable length in meters
Comes complete with sensor head, 1 m (3.3') cable, USB cable, software, and operator's manual.
|
|
|
|
|
| |
|
