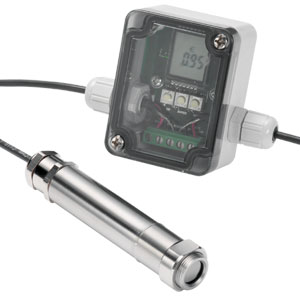

Fixed Infrared Non-Contact Temperature Sensor with adjustable emissivity and optional display |
| OS212 Series |
|
 |
|
|
|
|
|
|
|
| • |
Temperature Range -20 to 500°C (-4 to 932ºF)
|
| • |
2-Wire 4 to 20 mA Output Proportional to Target Temperature
|
| • |
4 to 20 mA Input to Control Emissivity Setting
|
| • |
Optional Manual Emissivity Adjuster (Model No. OS210-PT)
|
| • |
Field of View: 2:1, 15:1, 30:1 or Close Focus
|
| • |
Fast Response with High Stability
|
| • |
Stainless Steel Housing, Sealed to IP65
|
| • |
Quick and Easy Installation
|
| • |
Optional Air/Water Cooled Housing, Air Purge Collar, Laser Sighting Tool and Mounting Brackets
|
View related products - Infrared Temperature Measurement Instruments
|
| |
|
|
|
 |
The OMEGA™ Infrared Series is a range of high
quality, low cost, compact sensors which measure the
temperature of inaccessible or moving objects and
materials. They measure temperatures from -20 to
500°C (-4 to 932ºF), accurately and consistently, with
an outstanding response time of 240 mS. OMEGA
sensors transmit the target temperature as a
4 to 20 mA output and offer a simple solution for most
non-contact temperature measurement applications.
The sensor’s emissivity setting can be adjusted from
0.2 to 1.0 to cope with different target materials and is
controlled by a 4 to 20 mA input. This gives the
opportunity to adjust the emissivity setting
automatically from a programmable logic controller
(PLC). Alternatively the emissivity setting can be
adjusted manually using the OS210-PT. If the
4 to 20 mA input is left open or short-circuit the
emissivity setting defaults to 0.95.
† Refer to accessory chart on J-3 for NIST calibration
ordering information.
Specification
Infrared Sensor Output: 4 to 20 mA
Accuracy: ±1% of reading or ±1°C whichever is greater
Repeatability: ±0.5% of reading or ±0.5°C whichever is greater
Emissivity: 0.2 to 1.0 via 4 to 20 mA input
Response Time t90: 240 mS (90% response)
Spectral Range: 8 to 14 µm
Supply Voltage: 24 Vdc (28 Vdc max)
Min Sensor Voltage: 6 Vdc
Max Loop Impedance: 900 Ω (4 to 20 mA output)
Input Impedance: 50 Ω Mechanical
Construction: Stainless Steel
Dimensions: 103 L x 18 mm D (4.05 x 0.71")
Thread Mounting: M16 x 1 mm pitch
Cable Length: 1 m (3.3') longer lengths available to order
Weight: 95 g (3.4 oz) with cable
Environmental Rating: IP65
Ambient Temperature Range: 0 to 70°C (32 to 158°F)
Relative Humidity: 95% max non-condensing
Tune Emissivity Adjuster Specifications (OS210-PT)
Output: 4 to 20 mA
Supply Voltage: 24 Vdc (13V to 28 Vdc)
Display Format: 3.5 digit LCD
Display Units:
Emissivity: 0.2 to 1.0
Current: 4 to 20 mA
Adjustment: Pushbuttons (raise/lower/set) Mechanical
Construction: Polycarbonate with gasket, transparent lid (PC) and quick release screws
Mounting: Surface
Dimensions: 65 H x 50 W x 35 mm D (2.56 x 1.97 x 1.38")
Weight: 72 g (2.5 oz) Environmental
Rating: IP65
Ambient Temperature Range: 0 to 70°C (312 to 158°F)
Relative Humidity: 95% max non-condensing
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with sensor head, 1 m (3.3') cable and operator’s manual.
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Optics
|
| |
Select
OS212 for 2 to 1
OS152 for 15 to 1
OS302 for 30 to 1
OS802 for Close-focus
|
(2)
|
Temperature Range and Output with Adjustable Emissivity
|
| |
Select
LT for -20 to 100ºC (-4 to 212ºF) 4 to 20 mA
MT for 0 to 250ºC (32 to 482ºF) 4 to 20 mA
HT for 0 to 500ºC (32 to 932ºF) 4 to 20 mA
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
