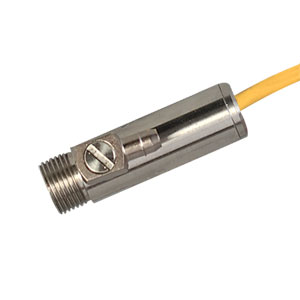

The OS36-3 Series is ideal for use in paint or ink
environments which require the sensor to be mounted
remotely from the target. In addition to the ruggedness
and ease-of-use of the original OS36 Series, the new
OS36-3 Series is hermetically sealed and is equipped
with an internal air cool/purge system. As do all
infrared thermocouples, this new series exceeds all
applicable NEMA standards and is intrinsically safe
when used with appropriate intrinsic safety barriers.
SPECIFICATIONS
Range Code
Temperature Range (2% accuracy)
50F
-18 to 27°C (0 to 80°F)
80F
10 to 49°C (50 to 120°F)
98.6F
16 to 39°C (60 to 102°F)
140F
25 to 80°C (80 to 180°F)
180F
70 to 104°C (160 to 220°F)
240F
95 to 130°C (200 to 270°F)
280F
125 to 155°C (260 to 310°F)
340F
145 to 175°C (290 to 350°F)
440F
170 to 250°C (340 to 480°F)
Accuracy: ±2% of nominal range; blackbody source Repeatability: ±1% rdg Temperature Coefficient: ±0.02% nominal range per °F Temperature Compensation Range: Complies with ASTM standards over 27 to 93°C (80 to 200°F) range Operating Ambient Temperature Range: -18 to 85°C (0 to 185°F) with internal cold junction compensation Air Purge: Built-in Ambient Temperature Compensation: With air flow of 1.1 SCFM (20 psig), max is 120°C (248°F) Storage Temperature Range: -45 to 121°C (-50 to 250°F) Response Time: 80 ms Spectral Response: 6.5 to 14 microns Range: -45 to 650°C (-50 to 1200°F)† Field of View: 17° (3:1) Minimum Spot Size: 6 mm (0.35") Output Impedance: 4 to 8kΩ (varies by model) Dimensions: 45 L x 13 mm Dia. (1.76 x 0.50"); 0.9 m (36") PFA coated lead wires Weight: 40 g (1.4 oz) with cable †See chart for linear ranges. Measurement is practical beyond thermocouple table values by use of radiation laws. Polynomials available upon request.
Use the "Part Number Builder" and Spec Sheet to
configure available versions
† Price are shown in RMB.
Part Number Builder
Qty:
Option Descriptions
(1)
Thermocouple Type
Select J for Type J K for Type K T for Type T E for Type E
(2)
Temperature Range
Select 50F for –18 to 27°C/0 to 80°F 80F for 10 to 49°C/50 to 120°F 98.6F for 16 to 39°C/60 to 102°F 140F for 25 to 80°C/80 to 180°F 180F for 70 to 104°C/160 to 220° 240F for 95 to 130°C/200 to 270°F 280F for 125 to 155°C/260 to 310°F 340F for 145 to 175°C/290 to 350°F 440F for 170 to 250°C/340 to 480°F
(3)
Connector Type
Select Nothing(leave field blank) for Standard Unit -GMP for Subminiture low-noise T/C connector pair -GST for Standard size low-noise T/C connector pair
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
