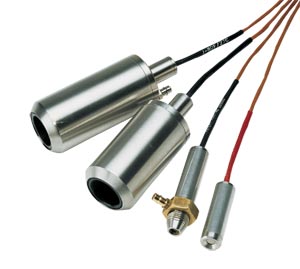

Infrared Thermocouples |
| OS36 Series |
|
 |
|
|
|
|
|
¥
3,345.00
OS36-J-50F
|
| • |
Measures Surface Temperature Without Direct Contact
|
| • |
"(*)" Selects Temperature Range for 2% Accuracy
|
| • |
60° Field of View
|
| • |
No Thermal Mass Errors
|
| • |
No Moving Parts
|
| • |
Self-Powered with No Internal or External Power Requirements
|
| • |
No Frictional Heat Errors for Moving Surfaces
|
| • |
Temperature Compensated
|
| • |
Use with Standard Thermocouple Indicators and Controllers
|
View related products - Thermocouples
|
| |
|
|
|
 |
The unique OS36 IR t/cTM brings together the economical thermocouple with the advantages of non-contact temperature measurement. The OS36 produces a thermocouple output signal that can be used with any standard J, K, T or E thermocouple instrumentation. The thermocouple’s accuracy is specified for target emissivity between 0.8 and 1.0. For other emissivity values, readings can be corrected to provide accurate measurements. Even without correction, the readings are extremely repeatable, for use in process and quality control applications.
SPECIFICATIONS
Accuracy: ±2% of nominal range; blackbody source
Repeatability: ±1% rdg
Temperature Coefficient: ±0.02% nominal range per °F
Temperature Compensation Range: Complies with ASTM standards over 27 to 93°C (80 to 200°F) range
Operating Ambient Temperature Range: -18 to 85°C(0 to 185°F) with internal cold junction compensation
Ambient Temperature Compensation: Internal temperature cold junction compensation up to 538°C (1000°F) watercooled, 400°C (750°F) air-cooled, with cooling jacket option model OS36-APC
Storage Temperature Range: -45 to 121°C (-50 to 250°F)
Output Impedance: 3 kΩ
Response Time: 80ms
Spectral Response: 6.5 to 14 microns
Field of View: 60°; specified accuracy for target distances up to 12.7mm (0.5")
Dimensions: 4.45 L x 1.27cm Dia. (1.75 x 0.5"); 2.4m (8') PFA coated lead wires
Housing: Stainless steel with silicon window, hermetically encapsulated
Weight: 15g (0.5 oz) head only
Example of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
|
|
|
|
|
|
† Price are shown in RMB.
Note: standard unit configuration is stripped leads. To order with GMP subminiature low-noise thermocouple connector pair, add sufffix “-GMP” to model no., and add $12 to price. To order with GST standard size low-noise thermocouple connector pair, add sufffix “-GST” to model no., and add $12 to price.GST Low Noise
To order with right angle viewer (unit comes with 3 ft lead wires), for difficult to view applications change model no. from “OS36” to “OS36-RA”, and add $26 to price.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Thermocouple Type Simulated
|
| |
Select
J for J Type
K for K Type
T for T Type
E for E Type
|
(2)
|
Temperature Range for 2% Accuracy
|
| |
Select
50F for -18 to 27°C/0 to 80°F
80F for 10 to 49°C/50 to 120°F
98.6F for 16 to 39°C/60 to 102°F
140F for 25 to 80°C/80 to 180°F
180F for 70 to 104°C/160 to 220°F
240F for 95 to 130°C/200 to 270°F
280F for 125 to 155°C/260 to 310°F
340F for 145 to 175°C/290 to 350°F
440F for 170 to 250°C/340 to 480°F
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
