Fixed Mount Industrial Infrared Sensors. OEM Style and NEMA Systems. Voltage, Current and Thermocouple Outputs - Discontinued |
| OS65 Series |
|
 |
|
|
|
|
|
|
|
| • |
J or K Thermocouple, Milliamp, Millivolt, or Voltage Output
|
| • |
Choice of Optics, 3:1, 7:1, 15:1 or 24:1
|
| • |
Fast 300 msec Response Time
|
| • |
Safe and Easy to Install
|
| • |
Standard Sensor Withstands Ambient Temperatures up to 85°C (185°F)
|
| • |
±1% Accuracy
|
| • |
Laser Sighting Available
|
| • |
Economical
|
| • |
Available as OEM Style Unit or Complete NEMA-4 System
|
View related products - Infrared Temperature Measurement Instruments
|
| |
|
|
|
 |
The OS65 series has been discontinued. Please see the OS550A Series as a possible alternative or contact our Temperature Engineering department.
Non-contact temperature measurement has never been simpler or less expensive. OMEGA’s new OS65 Series of fixed mount infrared radiation thermometers rapidly and accurately measure the temperature of moving, inaccessible or fragile targets.

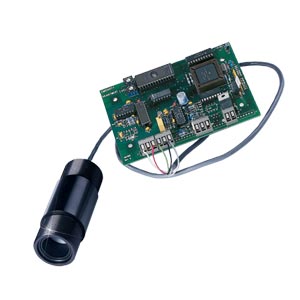

Ideal for OEM applications, OS65-BB Series units include only the infrared sensing head, 15' interconnecting cable and electronics card (no electronics enclosure is supplied).
For those applications requiring a complete system, the OS65 Series is also supplied as a complete NEMA-4 system, which includes the infrared sensing head, OS65-RAB mounting bracket, OS65-MN mounting nut, 15 foot interconnecting cable and electronics card housed in a NEMA-4 (IEC529, IP66) enclosure.
|
|
|
|
|
|
† Price are shown in RMB.
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Output Type
|
| |
Select
J for Type J
K for Type K
MV for 1 mV/deg. output
MA1 for 4-20 mA output
MA2 for 0-20 mA output
V for 0-5 Vdc output
|
(2)
|
Temperature Range Code
|
| |
Select
-R1 for -70 to 250°F
-R2 for -57 to 125°C
-R3 for 0 to 250°F
-R4 for 0 to 125°C
-R5 for -70 to 500°F
-R6 for -57 to 250°C
-R7 for 0 to 500°F
-R8 for 0 to 500°F
-R9 for -70 to 1000°F
-R10 for -57 to 500°C
-R11 for 0 to 1000°F
-R12 for 0 to 500°C
|
(3)
|
Optics Code
|
| |
Select
-1 for 3 to 1 ratio
-2 for 7 to 1 ratio
-3 for 15 to 1 ratio
-4 for 24 to 1 ratio
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
