Fixed Mount Thermal Imager |
| OSXL-101 |
|
 |
|
|
|
|
 |

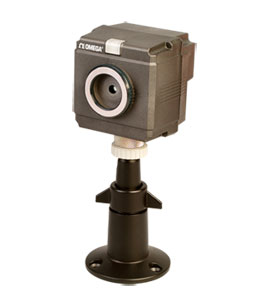

The OSXL-101 is a compact infrared
thermal imaging sensor utilizing a
thermopile array detector. The
OSXL-101 Series can now measures realtime
temperature and a thermal
image up to 800°C (1472°F). Ethernet
connectivity allows the sensor to
communicate with the PC running
the application software or
customers LAN.
FUNCTIONS
Monitoring Mode: The temperature data is outputted continuously by a
command from the PC
Capturing Mode: The temperature data is outputted row-by-row horizontally
by a command from PLC, etc.
Connectivity: Up to 4 sensors can be connected to a PC via LAN and
viewer software allows you to monitor thermal images,
measuring temperature and alarms.
SPECIFICATIONS
Temp Range: -20 to 300°C (-4 to 572°F) standard, 100 to 800°C (212 to 1472 °F) high temperature version.
Working Temp: -10 to 50°C (14 to 122°F)
Working RH: 10 to 80% RH (no dew condensation)
Temperature Resolution: 0.5°C
Accuracy: ±2% of reading or ±3°C whichever larger (at ambient temp of 25°C ±2°C)
Detector: Thermopile array, 48 x 47 pixels
Wavelength: Center wavelength 10ìm
Viewable Angle: 60°x 60° (OSXL-101) or 25°x 25° (OSXL-101-25);
Radius Resolution: 21.8 mrad
Frame Speed: 3 fps (1 fps for alarm output)
Focus: Fixed focus
Emissivity: 0.10 to 1.00
Ethernet: 10BASE-T/100BASE-TX
Alarm: 2 SPST (non-voltage contact output)
Power Supply: 9 to 30 Vdc
Power Consumption: Max 2VA @ 12 Vdc
Inrush Current: Max 1.3A @ 12 Vdc (The inrush current should be considered for the selection of power)
Casing: Polycarbonate (color: black)
Weight: Approx. 150 g (5.2 oz) (sensor only)
Protection: NEMA 4 (IP65) (with provided exclusive cable and tripod screw)
Standards: CE (EN61326 Annex A)
APPLICATION SOFTWARE Requirements
OS: Windows® 2000 (SP4 or later)/ XP/Vista (Windows XP or later recommended) NET Framework 2.0 or later (required)
Memory
Windows 2000/XP: 1 GB recommended (512 MB or more)
Windows Vista: 2 GB or more recommended
CPU
Windows 2000/XP: 1.5 GHz or faster recommended
Windows Vista: 2 GHz or faster recommended
Basic Function When the LAN settings are completed correctly between a PC and the thermal image sensor and the LAN communication is established, thermal image screen will appear. The thermal images up to 4 sensors can be displayed with this application software, and the simultaneous display for 4 images and the individual display for each sensor can be switched.
Various Settings of SensorLAN settings/alarm settings of the sensors/emissivity setting
Data Storage Image temperature data storage (temperature data/csv for 2256 pixels)/ Thermal image screen storage (JPEG)
Image Processing Screen averaging/spatial smoothing/ median filter/rotation/maximum and minimum values indications
Trend Graph By specifying a graph area, data can be displayed by the trend graph and the graph data can be stored by setting. (max 8 areas)
Alarm Settings by the Application Software- By specifying a zone, alarms can be set (max 8 areas)
- The zone alarm as set in the application software are separate and in addition to alarms set in the sensor
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with operator’s manual, software CD, mounting stand, power supply, LAN cable, power/alarm cable, mounting screws and plugs, lens and connector caps.
Ordering Example: (1) OSXL-101 Fixed mount thermal imager, ¥22,165.00
|
|
|
|
|
| |
|
