OT SERIES STRIP HEATER

OT Series

STRIP HEATER

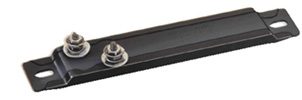

Click for larger image.

^¥ 920.00 OT-715/120V

OMEGALUX™ strip heaters are used principally for convection-type air heating and clamp-on installations. When selecting strip heaters for either, two important factors must be considered:
1. The proper sheath material for resisting any rusting and oxidizing inherent in the process or environment and for withstanding the sheath temperature required.
2. The watt density of the element, or watts per square inch of heated area. This should be low for heating asphalt, molasses and other thick substances with low heat transferability; it can be higher for heating air, metals and other heat-conducting materials.

SPECIFICATIONS
Max. Sheath Temperature: Iron, 750°F; Chrome Steel, 1200°F.
Sheath Material: Iron or chrome steel
Wattage Power: Iron sheath, 150 to 1250 watts; Chrome steel sheath, 200 to 2250 watts
Power Voltage: 120 or 240 Vac

Dimensions--Inches (cm) Rust-Resisting Iron Sheath						Chrome Steel Sheath
Model No.	A	B	D	Watts	W/In2	Model No.	Watts	W/In2 †	Wt. lb (kg)
OT-715/*	7 1/2 (19)	6 1/2 (17)	6 (15)	150	11	OT-702/*	200	15	.5 (.2)
OT-815/*	8 (20)	7 (18)	6 1/2 (17)	150	10	OT-802/*	250	17	.56 (.25)
OT-817/*	8 (20)	7 (18)	6 1/2 (17)	175	12	OT-804/*	400	27	.56 (.25)
OT-1025/*	10 1/2 (27)	9 1/2 (24)	9(23)	250	10	OT-1003/*	350	15	.75 (.34)
—	10 1/2 (27)	9 1/2 (24)	9(23)	—	—	OT-1004/*	400	17	.88 (.40)
OT-1225/*	12 (30)	11 (28)	10 1/2 (27)	250	8	OT-1202/*	250	8	.88 (.40)
—	12 (30)	11 (28)	10 1/2 (27)		—	OT-1203/*	—350	14	.88 (.40)
—	12 (30)	11 (28)	10 1/2 (27)		—	OT-1205/*	—500	17	.88 (.40)
OT-1430/*	14 (36)	13 (33)	12 1/2 (32)	300	8	OT-1405/*	500	14	1.0 (.45)
OT-1532/*	15 1/4 (39)	14 1/4 (36)	13 3/4 (35)	325	8	OT-1505/*	500	12	1.13 (.51)
OT-1835/*	17 7/8 (45)	16 7/8 (43)	16 3/8 (42)	350	6.5	OT-1805/*	500	10	1.38 (.63)
OT-1837/*	17 7/8 (45)	16 7/8 (43)	16 3/8 (42)	375	7	OT-1807/*	750	15	1.38 (.63)
OT-1850/*	17 7/8 (45)	16 7/8 (43)	16 3/8 (42)	500	10	OT-1801/*	1000	19	1.38 (.63)
OT-1935/*	19 1/2 (50)	18 1/2 (47)	18(46)	350	6	OT-1905/*	500	9	1.5 (.68)
OT-1950/*	19 1/2 (50)	18 1/2 (47)	18(46)	500	8	OT-1907/*	750	13.5	1.5 (.68)
—	19 1/2 (50)	18 1/2 (47)	18(46)	—	—	OT-1901/*	1000	18	1.5 (.68)
OT-2150/*	21(53)	20(51)	19 1/2 (50)	500	8	OT-2107/*	750	12	1.63 (.74)
OT-2450/*	23 3/4 (60)	22 3/4 (58)	22 1/4 (57)	500	7	OT-2405/*	500	7	1.81 (.82)
OT-2475/*	23 3/4 (60)	22 3/4 (58)	22 1/4 (57)	750	10	OT-2407/*	750	10	1.81 (.82)
—	23 3/4 (60)	22 3/4 (58)	22 1/4 (57)	—	—	OT-2401/*	1000	14	1.81 (.82)
—	23 3/4 (60)	22 3/4 (58)	22 1/4 (57)	—	—	OT-2415/*	1500	19	1.81 (.82)
OT-2550/*	25 1/2 (65)	24 1/2 (62)	24(61)	500	6	OT-2507/*	750	9	2.06 (.93)
OT-2575/*	25 1/2 (65)	24 1/2 (62)	24(61)	750	9	OT-2501/*	1000	13	2.0 (.91)
OT-2670/*	26 3/4 (68)	25 3/4 (65)	25 1/4 (64)	700	8	OT-2601/*	1000	12	2.19 (.99)
OT-2675/*	26 3/4 (68)	25 3/4 (65)	25 1/4 (64)	750	9	—	—	—
OT-3075/*	30 1/2 (77)	29 3/8 (75)	28(71)	750	8	OT-3007/*	750	8	2.38 (1.1)
—	30 1/2 (77)	29 3/8 (75)	28(71)	—	—	OT-3001/*	1000	11	2.38 (1.1)
—	30 1/2 (77)	29 3/8 (75)	28(71)	—	—	OT-30012/240	1250	13	2.38 (1.1)
OT-3375/*	33 1/2 (85)	32 3/8 (82)	31(79)	750	7	OT-3307/*	750	7	2.69 (1.2)
OT-3610/*	35 7/8 (91)	34 3/4 (88)	33 1/2 (85)	1000	9	OT-3601/*	1500	13	2.88 (1.3)
OT-3880/*	38 1/2 (98)	37 1/2 (95)	36(92)	800	6	OT-3801/*	1000	8	3.19 (1.4)
OT-3810/*	38 1/2 (98)	37 1/2 (95)	36(92)	1000	8	OT-3815/*	1500	12	3.19 (1.4)
OT-4312/*	42 1/2 (108)	41 3/8 (105)	40 (102)	1250	9	OT-4315/*	1500	11	3.38 (1.5)
—	47 7/8 (122)	46 3/4 (119)	45 3/8 (115)	—	—	OT-4813/240	1350	9	3.75 (1.7)
—	47 7/8 (122)	46 3/4 (119)	45 3/8 (115)	—	—	OT-4822/240	2250	14	3.75 (1.7)

* Designate voltage, i.e., 120 or 240 VAC. Insert 120V for 120 VAC, 240V for 240 VAC.
Catalog numbers containing /240 are only available in that voltage.
Additional strip heater models available with other widths and bolt configurations.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Example partnumbers are shown below. Use the Part Number Builder below this table for your exact configuration.

OT-702/120V	6 Weeks	¥1,320.00	strip heater chrome steel sheath, 200 W	qty.

OT-702/240V	6 Weeks	¥1,170.00	strip heater with chrome steel sheath, 200 W	qty.

OT-715/120V	6 Weeks	¥920.00	strip heater with rust resisting iron sheath, 150 W	qty.

OT-815/240V	6 Weeks	¥840.00	strip heater with rust resisting iron sheath,150 W	qty.

OT-817/120V	6 Weeks	¥745.00	strip heater with rust resisting iron sheath,175 W	qty.

OT-817/240V	6 Weeks	¥780.00	strip heater with rust resisting iron sheath,175 W	qty.

OT-1025/240V	2 Weeks	¥900.00	strip heater with rust resisting iron sheath, 250 W	qty.

OT-2107/120V	6 Weeks	¥1,305.00	strip heater with chrome steel sheath, 750 W	qty.

OT-1205/120V	6 Weeks	¥1,465.00	strip heatr with chrome steel sheath, 500 W	qty.

OT-1205/240V	7 Weeks	¥1,495.00	strip heater with chrome steel sheath, 500 W	qty.

OT-1225/120V	6 Weeks	¥840.00	strip heater rust resisting iron sheath, 250 W	qty.

OT-1405/120V	6 Weeks	¥1,200.00	strip heater with chrome steel sheath, 500 W	qty.

OT-1807/120V	6 Weeks	¥1,305.00	strip heater with chrome steel sheath, 750W	qty.

OT-1837/120V	6 Weeks	¥855.00	strip heater rust resisting iron sheath, 350 W	qty.

OT-1950/120V	6 Weeks	¥920.00	strip heater rust resisting iron sheath, 500 W	qty.

OT-1950/240V	2 Weeks	¥935.00	strip heater rust resisting iron sheath, 350 W	qty.

OT-2475/120V	6 Weeks	¥1,045.00	strip heater rust resisting iron sheath, 750 W	qty.

OT-2475/240V	6 Weeks	¥1,045.00	strip heater rush resisting iron sheath, 750 W	qty.

OT-2501/240V	2 Weeks	¥1,675.00	strip heater chrome steel sheath, 1000 W	qty.

OT-3801/120V	6 Weeks	¥1,845.00	strip heater chrome steel sheath, 1000 W	qty.

OT-3815/240V	7 Weeks	¥1,880.00	strip heater chrome steel sheath, 1500 W	qty.

OT-4315/240V	6 Weeks	¥2,290.00	strip heater chrome steel sheath, 1350 W	qty.

† Price are shown in RMB.

Ordering Example: (1) OT-815/120V Strip heater with rust resisting iron sheath, 150 W, ¥990.00

Part Number Builder

	(1)		(2)
O O T T - -		/ /
Qty:

Option Descriptions

(1)

Model Code(see part number tables above)

Select
715 for Iron Sheath model 715
815 for Iron Sheath model 815
817 for Iron Sheath model 817
1025 for Iron Sheath model 1025
1225 for Iron Sheath model 1225
1430 for Iron Sheath model 1430
1532 for Iron Sheath model 1532
1835 for Iron Sheath model 1835
1837 for Iron Sheath model 1837
1850 for Iron Sheath model 1850
1935 for Iron Sheath model 1935
1950 for Iron Sheath model 1950
2150 for Iron Sheath model 2150
2450 for Iron Sheath model 2450
2475 for Iron Sheath model 2475
2550 for Iron Sheath model 2550
2575 for Iron Sheath model 2575
2670 for Iron Sheath model 2670
2675 for Iron Sheath model 2675
3075 for Iron Sheath model 3075
3375 for Iron Sheath model 3375
3610 for Iron Sheath model 3610
3880 for Iron Sheath model 3880
3810 for Iron Sheath model 3810
4312 for Iron Sheath model 4312
702 for Chrome Steel Sheath model 702
802 for Chrome Steel Sheath model 802
804 for Chrome Steel Sheath model 804
1003 for Chrome Steel Sheath model 1003
1004 for Chrome Steel Sheath model 1004
1202 for Chrome Steel Sheath model 1202
1203 for Chrome Steel Sheath model 1203
1205 for Chrome Steel Sheath model 1205
1405 for Chrome Steel Sheath model 1405
1505 for Chrome Steel Sheath model 1505
1805 for Chrome Steel Sheath model 1805
1807 for Chrome Steel Sheath model 1807
1801 for Chrome Steel Sheath model 1801
1905 for Chrome Steel Sheath model 1905
1907 for Chrome Steel Sheath model 1907
1901 for Chrome Steel Sheath model 1901
2107 for Chrome Steel Sheath model 2107
2405 for Chrome Steel Sheath model 2405
2407 for Chrome Steel Sheath model 2407
2401 for Chrome Steel Sheath model 2401
2415 for Chrome Steel Sheath model 2415
2507 for Chrome Steel Sheath model 2507
2501 for Chrome Steel Sheath model 2501
2601 for Chrome Steel Sheath model 2601
3007 for Chrome Steel Sheath model 3007
3001 for Chrome Steel Sheath model 3001
30012 for Chrome Steel Sheath model 30012
3307 for Chrome Steel Sheath model 3307
3601 for Chrome Steel Sheath model 3601
3801 for Chrome Steel Sheath model 3801
3815 for Chrome Steel Sheath model 3815
4315 for Chrome Steel Sheath model 4315
4813 for Chrome Steel Sheath model 4813
4822 for Chrome Steel Sheath model 4822

(2)

Voltage

Select
120V for 120 Vac
240V for 240 Vac

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
