High Accuracy Pressure Standards, Microprocessor-Based Dual Display, Digital and Analog |
| PCL-3000 |
|
 |
|
|
|
|
 |

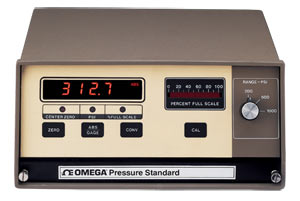

PCL-3000 Series digital pressure standards are specifically designed for use in the manufacture, testing, or calibration of pressure-sensitive devices. Using a patented, bonded foil strain-gage sensor and advanced microcircuitry, these rugged, compact instruments provide simultaneous digital and analog readouts of the pressures applied. Standard front panel switches permit desired pressure range selection, automatic zeroing of the display and actuation of a unique internal self-calibration feature. Each instrument has two displays, digital and analog. The digital display provides precise pressure information and the analog display gives a quick reference to direction and level of pressure.
SPECIFICATIONS
Accuracy: ±0.05% FS max., each range. (Accuracy statement includes linearity, hysteresis and repeatability.)
Operating Temperature: 10 to 43°C (50 to 110°F)
Pressure Media: Any media compatible with 17-4 PH Stainless Steel
Overpressure Capability: 750% FS on lowest range; 300% FS on mid. range; 150% FS on highest range
Display Resolution: Nominally 0.02% FS for each pressure range
Reading Rate: 10/sec
Input Voltage: 117 or 220 Vac ±10%, 50/60 Hz Voltage selected via transformer taps
Pressure Connection: 7/16-20 UNFM
Power Consumption: 8 watts, typical
Nominal Size: 27 W x 12 Hx 25 cm D (10.8 W x 4.9 H x 9.9" D)
Panel Cutout: 26.9 x 12 cm (10.62 x 4.75")
Weight: 2.3 kg (5 lb)
|
|
|
|
|
|
† Price are shown in RMB.
Note: All models come with an NIST traceable calibration certificate.
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Ranges
|
| |
Select
A for 5000/2500/1000 psig and psia
B for 1000/500/200 psig and psia
C for 500/250/100 psig and psia
D for 100/50/20 psig with conversion to InH2O
E for 50/25/10 psig with conversion to inH2O
G for 10000/5000/2000 psig and psia
|
(2)
|
Options
|
| |
Select
for no options leave blank
-1 for Isolated analog output (0-10vdc or 4-20 ma)
-4 for RS232 simplex output
-5 for Peak hold
-7 for Battery option (excludes bargraph display)
-9 for Panel mounting kit
-10 for Freeze mode for testing pressure switches
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
