Portable, High Accuracy Multifunction Calibrator |
| PCL1200 |
|
 |
|
|
Multifunction Calibrator Portable, High Accuracy
 |
| Click for larger image. |
|
|
|
|
| • |
Measures and Sources T/C (13 Types), RTDs (13 Types), Ohms, Current, Voltage, Frequency
|
| • |
Sources Pulse Trains
|
| • |
Isolated mA/V Readback Circuit for Complete Transmitter Calibration
|
| • |
Pressure Module Communication Port Compatible with OMEGA
PCL-PM Series Pressure Modules
|
| • |
Built-In 24 V Supply Can Drive 4 to 20 mA Loops Up to 1000 Ohms
|
| • |
Direct Entry of Custom RTD Coefficients (R0, A, B, C)
|
| • |
All Source Modes Can be Programmed with Dedicated Setpoints to Speed Calibration and Linearity Tests
|
| • |
Highest Accuracy in Class—to 0.015% of Reading
|
| • |
Meets CE Requirements and is Designed to IEC 1010 Safety Standards
|
| • |
Supplied with Full Rubber Boot
|
View related products - Instrumentation for Pressure and Strain Measurements
|
| |
|
|
|
 |

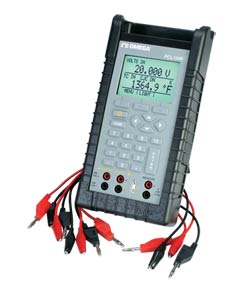

The PCL1200 multifunction
calibrator has a feature set
unmatched by other high-accuracy
handheld calibrators in its price
range. It is portable, provides the
functions and accuracy of a
laboratory-grade instrument, and
has everything needed for virtually
any calibration task. It can also
measure and source thermocouples,
RTDs, current, voltage, and
frequency, and it can source pulse
trains. It has a communications port
for pressure modules and an
isolated mA/V readback circuit.
Arrow keys, direct numeric keypad entry, and 3 software-driven
function buttons combine with a
large, backlit, menu-driven graphics
display to provide a highly intuitive
yet powerful interface. A built-in
250 Ohm resistor for HartTM
compatibility, compatibility with
smart transmitters and PLCs, full
fuseless protection, and a serial
communications port for control
using ASCII commands are
additional features that make the
PCL1200 indispensable for
calibration tasks. A protective rubber boot is included with each unit.
Measuring Pressure
with the PCL1200
With a PCL-PMA pressure module
adaptor, the PCL1200 will work with
all OMEGA PCL-PM pressure
modules. See Specs and
"To Order" chart.
SPECIFICATIONS (23 ±5°C Unless Otherwise Noted)
Voltage Read and Source:
Source: 0 to 20 Vdc
Read:
Isolated: 0 to 30 Vdc
Non-Isolated: 0 to 20 Vdc
Thermocouple mV:
Read/Source: -10 to 75 mV
Current (mA):
Source: 0 to 24 mA
Read:
Isolated: 0 to 24 mA
Non-Isolated: 0 to 24 mA
Frequency (1 to 20 V Selectable
Amplitude):
cpm Source/Read: 2 to 600 cpm
Hz Source/Read: 1 to 1000 Hz
kHz Source/Read: 1 to 10 kHz
Pulse (Source Only; 1 to 20 V
Selectable Amplitude): 1 to 30,000
pulses; 2 cpm to 10 kHz
Ohms:
Source: 5 to 4000 O
Read: 0 to 4000 O
Thermocouple Read and Source:
Type J: -200 to 1200°C
(-328 to 2192ºF)
Type K: -200 to 1370°C
(-328 to 2498ºF)
Type T: -200 to 400°C
(-328 to 752ºF)
Type E: -200 to 950°C
(-328 to 1742ºF)
Type R: -20 to 1750°C
(-4 to 3182ºF)
Type S: -20 to 1750°C
(-4 to 3182ºF)
Type B: 600 to 1800°C
(1112 to 3272ºF)
Type C: 0 to 2316°C
(32 to 4201ºF)
Type XK: -200 to 800°C
(-328 to 1472ºF)
Type BP: 0 to 2500°C
(32 to 4532ºF)
Type L: -200 to 900°C
(-328 to 1652ºF)
Type U: -200 to 400°C
(-328 to 752ºF)
Type N: -200 to 1300°C
(-328 to 2372ºF)
RTD Read and Source:
Ni120 (672): -80 to 260°C
(-112 to 500ºF)
Pt100 (385): -200 to 800°C
(-328 to 1472ºF)
Pt100 (3926): -200 to 630°C
(-328 to 1166ºF)
Pt100 (3916): -200 to 630°C
(-328 to 1166ºF)
Pt200 (385): -200 to 630°C
(-328 to 1166ºF)
Pt500 (385): -200 to 630°C
(-328 to 1166ºF)
Pt1000 (385): -200 to 630°C
(-328 to 1166ºF)
Cu10: -100 to 260°C
(-148 to 500ºF)
YSI400: 15 to 50°C
(59 to 122ºF)
Cu50: -180 to 200°C
(-292 to 392ºF)
Cu100: -180 to 200°C
(-292 to 392ºF)
Pt385-10: -200 to 800°C
(-328 to 1472ºF)
Pt385-50: -200 to 800°C
(-328 to 1472ºF)
Environmental
Operating Temperature: -10 to 50°C
(14 to 122ºF)
Storage Temperature: -20 to 70°C
(-4 to 158ºF)
Stability: ±0.005% of reading/°C
(±5°C outside of 23°C)
Power Requirement: 6 Vdc
Batteries: 4 "AA" alkaline (included)
or optional rechargeable
Mechanical
Dimensions:
220.9 H x 106.6 W x 58.4 mm D
(8.7 x 4.2 x 2.3")
Weight: 863 g (30.5 oz)
Optional Accessory: Carrying case
(Model No. CC572)
Accuracy
Voltage: ±0.015% of reading, ±2 mV
Thermocouple: mV ±0.02% of reading,
±10 µV
Thermocouple Errors (In °C; Add 0.2
for Cold-Junction Compensation
Error)
RTD Read/Source:
Type J: 0.2°C Ni120 (672) 0.2°C
Type K: 0.3°C Pt100 (385) 0.2°C
Type T: 0.2°C Pt100 (3926) 0.2°C
Type E: 0.2°C Pt100 (3916) 0.2°C
Type R: 1.2°C Pt200 (385) 0.8°C
Type S: 1.2°C Pt500 (385) 0.4°C
Type B: 1.2°C Pt1000 (385) 0.2°C
Type C: 0.6°C Cu10 1.4°C
Type XK: 0.2°C YSI400 0.1°C
Type BP: 0.9°C Cu50 0.4°C
Type L: 0.2°C Cu100 0.3°C
Type U: 0.25°C Pt385-10 1.4°C
Type N: 0.4°C Pt385-50 0.4°C
Read Source:
Current (mA): ±0.015% of reading,
±2 µA ±0.015% of reading, ±2 µA
cpm: ±0.05% of reading, ±1 LSD
±0.05% of reading
Hz: ±0.05% of reading, ±1 LSD
±0.05% of reading
kHz: ±0.05% of reading, ±1 LSD
±0.125% of reading
Ohms (Works with All Pulsed
Transmitters Down to 5 ms):
400 Ω Range: ±0.025% of reading,
±0.05 Ω ±0.025% of reading,
±0.05 Ω
4000 Ω Range: ±0.025% of reading,
±0.5 Ω ±0.025% of reading, ±0.5 Ω
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with test leads, protective rubber boot, calibration certificate, 4 "AA" alkaline batteries, type K thermocouple and retractable thermocouple cable, and operators manual.
PCL-PM series pressure modules and PCL-PMA module adapters required for pressure measurement, sold separately.
|
|
|
|
|
| |
|
