Differential Pressure Gauges |
| PGD Series |
|
 |
|
|
|
|
 |
OMEGA’s PGD Series differential pressure gauges are rugged industrial gauges which indicate the difference between
two input connections. Differential ranges provide the maximum resolution for applications where one input is always at
a higher pressure than the other. In cases where one input can be higher or lower than the other, a bi-directional
differential range should be used. The PGD Series is constructed with two independent Bourdon tubes. The opposing
Bourdon tubes are linked to a single pinion gear which rotates a pointer for direct pressure readings. By using two
independent Bourdon tubes, the gauge can handle liquids or gases on either or both ports. The large 4½"
dial makes reading pressure easy. Each gauge is equipped with a micrometer adjustment for rezeroing the gauge.

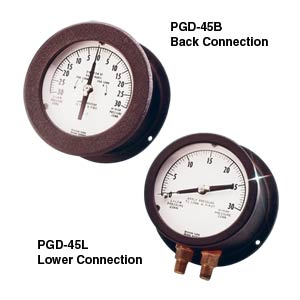

Gauges are available with ports located in the lower (six o’clock) position or in the rear for panel mounting.
SPECIFICATIONS
Accuracy: 2-1-2%, ANSI Grade A
(2% first 10%, 1% middle 80%, 2% top 10%
Dial Size: 4½"
Dial Arc: 210°
Window: Double-strength glass
Connection: ¼ NPT male
Sensor Type: Bourdon tube
Wetted Parts:
Tube: bronze
Fittings: brass
Case: Black epoxy coated aluminum
Operating Temperature: 65°C (150°F)
Weight: 1.4 kg (3 lb)
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) PGD-45L-30 is a 0-30 psi differential pressure gauge with lower fittings, ¥13,065.00
|
|
|
|
|
| |
|
