Industrial Process Pressure Gauges with 4.5 and 6-inch Dials, Black Phenol or Aluminum Case |
| PGH and PGJ Series |
|
 |
|
|
Hydraulic Pressure Gauge, Dial Gauge, Dial vacuum gage
 |
| Click for larger image. |
|
|
¥
2,700.00
PGH-45L-100
|
| • |
0.5% FS Accuracy
|
| • |
PGH Gauge Ranges from 15 psi to 20,000 psi
|
| • |
Double-Strength Shatter-Resistant Glass
|
| • |
Heavy Duty 316 SS Wetted Parts
|
| • |
Easily Adjustable, Self-Locking Micrometer Dial
|
| • |
PTFE Coated SS Movement for Long Lasting Accuracy
|
| • |
Solid Front with Blowout Back
|
| • |
Fully Temperature Compensated
|
View related products - Pressure Gauges
|
| |
|
|
|
 |
SPECIFICATIONS
Dial Arc: 270°
Case: Lower Connection

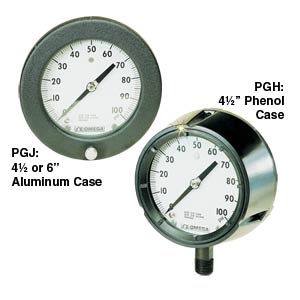

PGH: 4½" dial, lower or back connection; Black Phenol
PGJ: 4½" or 6" dial; back connection; Aluminum case
Ring Material: Polypropylene
Back Cover Material:
Dry case: Polypropylene
Liquid filled case: Polycarbonate
Hermetic case: Polycarbonate
Window: Double-Strength Glass
Bourdon Tube: 316 Stainless Steel
Connection: ½ NPT Male, 316 SS
Mounting: Stem, Flush or Surface
Operating Temperature: 121°C (250°F) Max.
Examples of pricing for popular models is referenced in the "To Order" box.
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) PGH-45L-100 is a 0-100 psi industrial pressure gauge with 4 1/2, ¥2,700.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Case style and dial size
|
| |
Select
PGH-45L for 4-1/2 inch dial black phenol and lower fitting
PGH-45B for 4-1/2 inch dial black phenol and back fitting
PGJ-45B for 4-1/2 inch dial aluminum case and back fitting
PGJ-60B for 6 inch dial aluminum case and back fitting
|
(2)
|
Range (psig)
|
| |
Select
30V/15 for 30 in Hg vacuum to 15 psig
30V/30 for 30 in Hg vacuum to 30 psig
30V/60 for 30 in Hg vacuum to 60 psig
30V/100 for 30 in Hg vacuum to 100 psig
30V/150 for 30 in Hg vacuum to 150 psig
30V/300 for 30 in Hg vacuum to 300 psig
15 for 0 to 15 psig
30 for 0 to 30 psig
60 for 0 to 60 psig
100 for 0 to 100 psig
160 for 0 to 160 psig
200 for 0 to 200 psig
300 for 0 to 300 psig
400 for 0 to 400 psig
600 for 0 to 600 psig
1000 for 0 to 1000 psig
1500 for 0 to 1500 psig
2000 for 0 to 2000 psig
3000 for 0 to 3000 psig
5000 for 0 to 5000 psig
10000 for 0 to 10000 psig
20000 for 0 to 20000 psig
|
(3)
|
Options
|
| |
Select
for no options leave blank
-F for Silicone oil filled (PGH models only)
-X6B for cleaning for Oxygen service (add $65.00)
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
