Utility Gauges For Industrial and OEM Markets
Dual psi/bar Scales - Discontinued

PGU Series

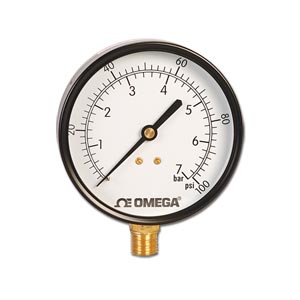

Click for larger image.

^¥ 232.00 PGU-25B-100PSI/7BAR

•	Dual Scales in PSI and BAR
•	Economically Priced
•	3-2-3% Full Scale Accuracy*
•	1½", 2", 2½", or 3½" Dials (38, 50, 63, or 89 mm Dials)
•	Center Back or Lower Mount Fittings
View related products - Pressure Gauges

The PGU series has been discontinued. Please see the PGC series as a possible alternative or contact our Pressure Engineering department.

OMEGA’s PGU series utility gauges provide economical, reliable service in a wide range of applications including pumps, compressors, and other equipment. Series PGU utility gauges come in ranges of (psi/Bar) 0-30/2, 60/4, 100/7, 160/11, 200/14, and 300/21 psi with an accuracy of ± 3-2-3% of span. Gauges are available in 38 mm (1½"), 50 mm (2"), 63 mm (2½"), or 89 mm (3½") steel cases with center back or lower mount NPT connections.

SPECIFICATIONS
Ranges (psi/Bar): 30/2, 60/4, 100/7, 160/11, 200/14, 300/21
Accuracy: ± 3-2-3%
Bourdon Tube: Phosphor bronze
Window: Polycarbonate
Dial: ABS
Pointer: Aluminum
Case: Painted steel
Connection: 1/4 NPTM (1/8 NPTM on 1½" dials)

Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Utility Gauges, 38 mm (1½") Dial, Lower Connection

PGU-15L-30PSI/2BAR	2 Weeks	¥232.00	0-30 psi outer scale and 0-2 bar inner scale, 1/8 NPT lower fitting	qty.

PGU-15L-60PSI/4BAR		Consult sales	0-60 psi outer scale and 0-4 bar inner scale, 1/8 NPT lower fitting	qty.

PGU-15L-100PSI/7BAR	2 Weeks	¥232.00	0-100 psi outer scale and 0-7 bar inner scale, 1/8 NPT lower fitting	qty.

PGU-15L-160PSI/11BAR	2 Weeks	¥232.00	0-160 psi outer scale and 0-11 bar inner scale, 1/8 NPT lower fitting	qty.

PGU-15L-200PSI/14BAR	2 Weeks	¥232.00	0-200 psi outer scale and 0-14 bar inner scale, 1/8 NPT lower fitting	qty.

PGU-15L-300PSI/21BAR		Consult sales	0-300 psi outer scale and 0-21 bar inner scale, 1/8 NPT lower fitting	qty.


Utility Gauges, 38 mm (1½") Dial, Back Connection

PGU-15B-30PSI/2BAR		Consult sales	0-30 psi outer scale and 0-2 bar inner scale, 1/8 NPT back fitting	qty.

PGU-15B-60PSI/4BAR		Consult sales	0-60 psi outer scale and 0-4 bar inner scale, 1/8 NPT back fitting	qty.

PGU-15B-100PSI/7BAR	2 Weeks	¥93.00	0-100 psi outer scale and 0-7 bar inner scale, 1/8 NPT back fitting	qty.

PGU-15B-160PSI/11BAR		Consult sales	0-160 psi outer scale and 0-11 bar inner scale, 1/8 NPT back fitting	qty.

PGU-15B-200PSI/14BAR		Consult sales	0-200 psi outer scale and 0-14 bar inner scale, 1/8 NPT back fitting	qty.

PGU-15B-300PSI/21BAR		Consult sales	0-300 psi outer scale and 0-21 bar inner scale, 1/8 NPT back fitting	qty.


Utility Gauges, 50 mm (2") Dial, Lower Connection

PGU-20L-30PSI/2BAR		Consult sales	0-30 psi outer scale and 0-2 bar inner scale, 1/4 NPT lower fitting	qty.

PGU-20L-60PSI/4BAR		Consult sales	0-60 psi outer scale and 0-4 bar inner scale, 1/4 NPT lower fitting	qty.

PGU-20L-100PSI/7BAR	2 Weeks	¥186.00	0-100 psi outer scale and 0-7 bar inner scale, 1/4 NPT lower fitting	qty.

PGU-20L-160PSI/11BAR	2 Weeks	¥186.00	0-160 psi outer scale and 0-11 bar inner scale, 1/4 NPT lower fitting	qty.

PGU-20L-200PSI/14BAR	2 Weeks	¥186.00	0-200 psi outer scale and 0-14 bar inner scale, 1/4 NPT lower fitting	qty.

PGU-20L-300PSI/21BAR		Consult sales	0-300 psi outer scale and 0-21 bar inner scale, 1/4 NPT lower fitting	qty.


Utility Gauges, 50 mm (2") Dial, Back Connection

PGU-20B-30PSI/2BAR	2 Weeks	¥186.00	0-30 psi outer scale and 0-2 bar inner scale, 1/4 NPT back fitting	qty.

PGU-20B-60PSI/4BAR	2 Weeks	¥186.00	0-60 psi outer scale and 0-4 bar inner scale, 1/4 NPT back fitting	qty.

PGU-20B-100PSI/7BAR		Consult sales	0-100 psi outer scale and 0-7 bar inner scale, 1/4 NPT back fitting	qty.

PGU-20B-160PSI/11BAR		Consult sales	0-160 psi outer scale and 0-11 bar inner scale, 1/4 NPT back fitting	qty.

PGU-20B-200PSI/14BAR		Consult sales	0-200 psi outer scale and 0-14 bar inner scale, 1/4 NPT back fitting	qty.

PGU-20B-300PSI/21BAR		Consult sales	0-300 psi outer scale and 0-21 bar inner scale, 1/4 NPT back fitting	qty.


Utility Gauges, 63 mm (2½") Dial, Lower Connection

PGU-25L-30PSI/2BAR	2 Weeks	¥232.00	0-30 psi outer scale and 0-2 bar inner scale, 1/4 NPT lower fitting	qty.

PGU-25L-60PSI/4BAR		Consult sales	0-60 psi outer scale and 0-4 bar inner scale, 1/4 NPT lower fitting	qty.

PGU-25L-100PSI/7BAR		Consult sales	0-100 psi outer scale and 0-7 bar inner scale, 1/4 NPT lower fitting	qty.

PGU-25L-160PSI/11BAR	2 Weeks	¥232.00	0-160 psi outer scale and 0-11 bar inner scale, 1/4 NPT lower fitting	qty.

PGU-25L-200PSI/14BAR	2 Weeks	¥232.00	0-200 psi outer scale and 0-14 bar inner scale, 1/4 NPT lower fitting	qty.

PGU-25L-300PSI/21BAR	2 Weeks	¥232.00	0-300 psi outer scale and 0-21 bar inner scale, 1/4 NPT lower fitting	qty.


Utility Gauges, 63 mm (2½") Dial, Back Connection

PGU-25B-30PSI/2BAR	2 Weeks	¥232.00	0-30 psi outer scale and 0-2 bar inner scale, 1/4 NPT back fitting	qty.

PGU-25B-60PSI/4BAR		Consult sales	0-60 psi outer scale and 0-4 bar inner scale, 1/4 NPT back fitting	qty.

PGU-25B-100PSI/7BAR	2 Weeks	¥232.00	0-100 psi outer scale and 0-7 bar inner scale, 1/4 NPT back fitting	qty.

PGU-25B-160PSI/11BAR	2 Weeks	¥232.00	0-160 psi outer scale and 0-11 bar inner scale, 1/4 NPT back fitting	qty.

PGU-25B-200PSI/14BAR	2 Weeks	¥232.00	0-200 psi outer scale and 0-14 bar inner scale, 1/4 NPT back fitting	qty.

PGU-25B-300PSI/21BAR	2 Weeks	¥232.00	0-300 psi outer scale and 0-21 bar inner scale, 1/4 NPT back fitting	qty.


Utility Gauges, 89 mm (3½") Dial, Lower Connection

PGU-35L-30PSI/2BAR	2 Weeks	¥279.00	0-30 psi outer scale and 0-2 bar inner scale, 1/4 NPT back fitting	qty.

PGU-35L-60PSI/4BAR		Consult sales	0-60 psi outer scale and 0-4 bar inner scale, 1/4 NPT back fitting	qty.

PGU-35L-100PSI/7BAR		Consult sales	0-100 psi outer scale and 0-7 bar inner scale, 1/4 NPT back fitting	qty.

PGU-35L-160PSI/11BAR		Consult sales	0-160 psi outer scale and 0-11 bar inner scale, 1/4 NPT back fitting	qty.

PGU-35L-200PSI/14BAR	2 Weeks	¥279.00	0-200 psi outer scale and 0-14 bar inner scale, 1/4 NPT back fitting	qty.

PGU-35L-300PSI/21BAR	2 Weeks	¥279.00	0-300 psi outer scale and 0-21 bar inner scale, 1/4 NPT back fitting	qty.

† Price are shown in RMB.

Note: 3 1/2 inch gauges are available with lower mount fittings only.

Part Number Builder

	(1)		(2)
P P G G U U - -		- -

Qty:

Option Descriptions

(1)

Dial Size and Fitting

Select
15L for 1-1/2 inch with lower mount
15B for 1-1/2 inch with back mount
20L for 2 inch with lower mount
20B for 2 inch with back mount
25L for 2-1/2 inch with lower mount
25B for 2-1/2 inch with back mount
35L for 3-1/2 inch with lower mount

(2)

Pressure Range

Select
30PSI/2BAR for 0 to 30 psi and 0 to 2 bar
60PSI/4BAR for 0 to 60 psi and 0 to 4 bar
100PSI/7BAR for 0 to 100 psi and 0 to 7 bar
160PSI/11BAR for 0 to 160 psi and 0 to 11 bar
200PSI/14BAR for 0 to 200 psi and 0 to 14 bar
300PSI/21BAR for 0 to 300 psi and 0 to 21 bar

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
