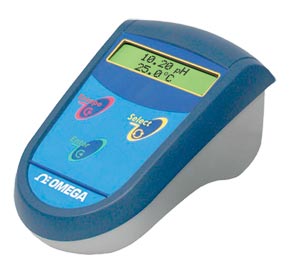

Benchtop pH, mV, ISE Meter
PHB23
CE

Benchtop pH, mV, ISE Meter
PHB23:Benchtop pH, mV, ISE Meter
Click for larger image.

• Readings Direct in ppm, % Molar, mEq/L or Others
• Maximum and Minimum Audible Alarm
• IP-65 Enclosure
• 99 Points Data Logging
• RS232 Output for PC or Printer
• Meters Ion-Sensitive Electrodes (ISE)
Click to scroll below to order See Specs PDF Manuals View a printer friendly page

The PHB23 is has a non-volatile memory (E2PROM), that stores your set-up values. Even under a loss of power condition your records are maintained. The menus are self-explanatory for easy operation and programmed from a simple 3 key face. The PHB23 also has advanced features like automatic electrode check and battery status displays. The displayed readings can be continuous, held or logged to memory. A user programmable audible alarm is included for minimum and maximum alerts. For ISE, the following curves are already built in: Fluoride, Iodine, Nitrate, Potassium, Silver, Sodium, Sulfide, H+, Ammonia, Ammonium, Bromide, Cadmium, Calcium, Lead, Cyanide, Chloride, Copper and four other ions can be user programmed.

SPECIFICATIONS
pH
Range: -2 to 20 pH
Resolution: 0.1/0.01/0.001 pH
Relative Precision: 0.05% (full scale)
Calibration: 2, 3, 4 or 5 points
mV
Range: ±1999 mV
Resolution: 1/0.1 mV
Relative Precision: 0.05% (full scale)
Temperature
Range: -20 to 120°C (-4 to 248°F)
Resolution: 0.1°C (0.1°F)
Relative Precision: 0.08% (full scale)
Concentration
Range: 0.01 to 99.99
Resolution: 1/0.1/0.01/0.001
Output: RS232
General
Temp. Comp.: Auto/Manual -20 to 120°C (-4 to 248°F)
Display: Alphanumeric 2 lines x 16 characters
Dimensions: 213 L x 147 W x 106 mm D (8.4 x 5.8 x 4.2")
Weight: 1.2 kg (2.6 lb)
Power: 110 to 240 Vac (50/60 Hz)
Cord Length: 2 m (6')
Electrical Protection: Class I
Power Consumption: 2.5 VA (max)
Environmental Conditions: Use indoors
Altitude: Up to 2000 m (6562')
Operating Temperature: 5 to 40°C (41 to 104°F)
Relative Humidity: 80% (max)
ISE
Available Units: ppm, mg/L, % or mEq/L
Ranges: 0.02 to 9000 ppm; 5 to 8 pH; 0 to 80°C; 0 to 9000%; 5 to 8 pH; 0 to 80°C; 0.01 to 12,700 mg/L; 5 to 8 pH; 0 to 80°C; 0.01 to 12,700 mEq/L
Resolution: 1, 0.1 or 0.01
Calibration Points: 2, 3, 4 or 5
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 PHB23    Consult sales   Benchtop pH, mV and temperature meter
 Accessories
 PHA-4 2 Weeks   ¥152.00    4.00 pH buffer solution, 500 ml (1 pint) bottle
 PHA-7 2 Weeks   ¥152.00    7.00 pH buffer solution, 500 ml (1 pint) bottle
 PHA-10 2 Weeks   ¥160.00    10.00 pH buffer solution, 500 ml (1 pint) bottle
 PHE-22R    Consult sales   replacement glass temperature probe
 ORE-1411 9 Weeks   ¥1,510.00    ORP electrode
 PHA-EH 2 Weeks   ¥805.00    replacement electrode arm holder
 PHE-1411 2 Weeks   ¥1,250.00    replacement pH electrode
 PRN-1    Consult sales   serial printer for RS232 output
† Price are shown in RMB.

 Note: Comes complete with glass electrode and electrode holder, temperature probe, power cord, calibration buffers (4 and 7), and operator’s manual (CD).
  Ordering Example: (1) PHA-4 pH 4 buffer solution, ¥152.00,  plus (1) PHA-7 pH 7 buffer solution, ¥152.00, , ¥152.00 + 152.00 = $304.00
