1⁄16 DIN pH Controller - Discontinued
PHCN-70
1 year warranty

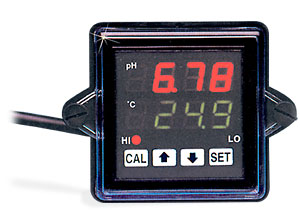

PHCN-70:1⁄16 DIN pH Controller - Discontinued
Click for larger image.

• Dual Display of pH and Temperature
• High/Low Setpoints
• Optional NEMA-4X Lens Cover
• Compact Size
Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The PHCN-70 Series has been discontinued. Please see the PHCN37 Series as a possible alternative or contact our Flow Engineering Department.

The new microprocessor-based family of pH 1 /16 DIN Panel mounted controllers are designed for a wide variety of environmental monitoring applications. The PHCN-70 features two 3 Amp SPDT relays for on/off control or alarms, automatic temperature compensation with 100 ohm RTD, bright dual displays of pH (red) and temperature (green) LED’s and EEPROM memory to protect settings in case of power loss. An optional NEMA-4X gasketed lens cover
fits over front bezel of controller made of watertight
corrosion-resistant ABS plastic.

SPECIFICATIONS
Accuracy: 0.01 pH, 0.1°C pH
Range: 0-14 pH
Temperature: 0 to 100°C (32 to 212°F)
Resolution: 0.01pH, 0.1°C
Temperature Compensation: PT100
Display: 3 digits LED, Two Lines, 9.5 mm (3⁄8") High
Dimensions: 45 x 45 mm (1.77" x 1.77") Depth 119 mm (4.7")
Outputs: Dual 3 Amp SPDT Relays @ 115 VAC
Deadband: 0.00 to 2.55 pH adjustable
Power: 80 to 250 VAC, 50/60 HZ
Weight: 142 g (5 oz)
Connection: BNC for pH; screw terminals for power, relay, ATC
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 PHCN-70    Consult sales   pH Controller
 Accessories
 PHE-5460 4 Weeks   ¥1,985.00    In Line pH Electrode
 PHEH-54-10 2 Weeks   ¥1,125.00    Required mounting assembly for pH probe - no temperature compensation
 PHEH-54-10-PT100 2 Weeks   ¥2,845.00    Required mounting assembly for pH probe with temperature compensation
 PHA-4 2 Weeks   ¥146.00    pH 4.01 Buffer Solution 475 ml
 PHA-7 2 Weeks   ¥146.00    pH 7.01 Buffer Solution 475 ml
 PHA-10 2 Weeks   ¥154.00    pH 10.01 Buffer Solution 475 ml
 PHA-4710    Consult sales   Buffer kit accessory - 4,7,10 Capsules(2 of each)
 PHCN-70-COVER    Consult sales   NEMA 4X lens cover.
† Price are shown in RMB.

 Note: Unit comes complete with mounting brackets and operator’s manual.
  Ordering Example: (1) PHA-4 pH 4.01 Buffer Solution 475 ml, ¥146.00,  plus (1) PHA-7 pH 7.01 Buffer Solution 475 ml, ¥146.00,  plus (1) PHE-5460 In Line pH Electrode, ¥1,985.00,  plus (1) PHEH-54-10-PT100 Required mounting assembly for pH probe, ¥2,845.00, ¥146.00 + 146.00 + 1,985.00 + 2,845.00 = $5,122.00
