Submersible Flat Surface pH/ORP Electrodes |
| PHE-6510, PHE-6511, and ORE-6511 |
|
 |
|
|

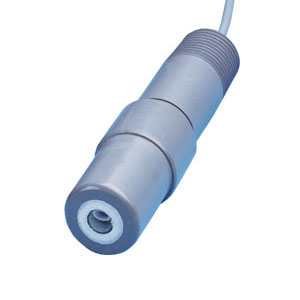

Submersible Flat Surface pH/ORP Electrodes
 |
| Click for larger image. |
|
|
|
|
|
|
 |
The OMEGA™ PHE/ORE-6510 Series submersible
electrodes are designed for use in drums,
open tanks and streams, etc. The flat
sensing surface is surrounded by a porous
polyethylene reference junction which
minimizes fouling. Electrode installation and
removal done by a simple 1/4 turn quick
disconnect. The cable assembly's cap has
1/2" MNPT thread, which can be connected
to a coupling and support pipe. The pipe
allows easy mechanical mounting and
protects the cable from the liquid measured.
The resulting assembly is lightweight for
convenient handling when maintenance is
needed. ATC is available as part of the
mounting assembly.
The flat surface design is well suited for
applications with relatively high suspended
solids or where flocculation operations
require low velocities.
Where only low velocities are present and
coating is a problem, the electrode can be
mounted at a 45° angle facing the flow so
as to obtain increased scrubbing action
across the measuring surface.
Submersible Electrode Options
| Ordering Suffix |
Description |
Available In Line Models |
| -HF | HF resistant to 2% at ambient temperature | PHE-6510, PHE-6511, PHE-6510-GL |
| -GL | Ground Loop | PHE-6510, ORE-6510 |
| -LC | Low Conductivity | All pH electrodes |
| -ACRYL | ACRYL Gel | All models but PHE-5460 |
Note: At the time of initial purchase, please order both electrode and mounting assembly. Mounting
assembly includes assembly in which the electrode is mounted and 10' cable. If ordered with
automatic temperature compensation (ATC), the temperature compensator is built into the mounting
assembly. When the electrode has expired, simply re-order the electrode (the mounting assembly is
re-usable).
Please download PDF file for full specifications and a complete list of available models.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with electrode care instruction sheet.
Temperature compensation is not required with ORP electrodes.
Order electrode and mounting assemblies separately. Materials of construction must be the same for both electrode and mounting assembly.
Mounting assemblies come with 3 m (10') cable with BNC connector cable.
For non-standard cable lengths up to 15 m (50') replace the suffix "-10" in the model number with the desired length in feet, add $2 per foot to price. (Additional cost of $2 per foot applies to entire cable length).
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
Ordering Example: (1) PHEH-65-10 CPVC without Automatic Temperature Compensation with 10 feet of cable, ¥880.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Type
|
| |
Select
65 for CPVC
65K for PVDF (Kynar)
|
(2)
|
ATC Sensor
|
| |
Select
Nothing(leave field blank)
-PT100 for 100 ohm platinum RTD
-PT1K for 1000 ohm platinum RTD
-R3K for 3000 ohm Balco
-300 for 300 ohm Thermistor
-TH700 for 700 Series Thermistor
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
