Retractable pH/ORP Electrodes for Tanks and Main Lines
PHE-6821 and ORE-6821

Retractable pH/ORP Electrodes for Tanks and Main Lines

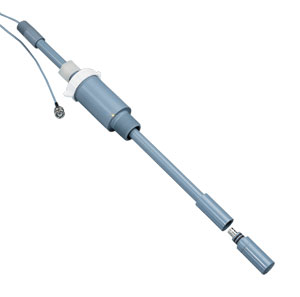

PHE-6821 and ORE-6821:Retractable pH/ORP Electrodes for Tanks and Main Lines
Click for larger image.

• 16 Month Shelf Life
• Can Be Installed in Any Direction
• Retractable Design Allows Removal Without System Shutdown
• Flat Surface Design
• Detachable Electrode for Easy Maintenance and Removal
• PVDF Body

View related products - Industrial pH Instrumentation and Electrodes

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The PHE-6821 Series electrodes and assemblies feature a retractable design for insertion into tanks and main lines. The assembly, when used with a 1" full port or larger ball valve (user supplied), allows the electrode to be removed without shutting the system down. This electrode can be mounted in any location, even up through the bottom of a tank with the electrode surface facing upward. Its unique design affords mounting in any direction and is suitable for most systems' inherent design. (This style is also available for ORP measurements.)

The flat surface design minimizes fouling and coating and eliminates electrode breakage. Turbulent flow across the electrode surface results in a scrubbing action that keeps the electrode clean. The flat surface electrode is specifically designed for difficult applications such as oily waste water, emulsions, lime slurries, and flocculants.

Mounting assemblies come with 3 m (10') cable with BNC connector. Cable lengths are available up to 15 m (50').

NOTE: At the time of initial purchase, please order both electrode and mounting assembly. Mounting assembly includes insertion assembly and cable. If ordered with automatic temperature compensation (ATC), the temperature compensator is built into the insertion assembly. When electrode has expired, simply re-order electrode.

Dimensions
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 PVDF Electrodes
 PHE-6821 2 Weeks   ¥4,335.00    pH Electrode PVDF , Max. temp 65.5°C (150°F)
 ORE-6821 9 Weeks   ¥4,150.00    ORP electrode PVDF max. temp 65.5°C (150°F)
 PVDF Mounting Assemblies are only for PVDF Electrodes - Mounting Assembly is required
 PHEH-68K-10 10 Weeks   ¥8,940.00    305 mm (12") PVDF with 3 m (10') of cable and BNC connector
 PHEH-68K-10-300    Consult sales   305 mm (12") PVDF, 300Ω thermisistor, with 3 m (10') of cable and BNC connector
 PHEH-68K-10-PT100 9 Weeks   ¥8,790.00    305 mm (12") PVDF, 100Ω Platinum RTD, with 3 m (10') of cable and BNC connector
 PHEH-68K-10-PT1K 10 Weeks   ¥7,985.00    305 mm (12") PVDF, 1000Ω Platinum RTD, with 3 m (10') of cable and BNC connector
 PHEH-68K-10-R3K 10 Weeks   ¥7,985.00    305 mm (12") PVDF, 3000Ω Balco, with 3 m (10') of cable and BNC connector
 Accessories
 PHA-10 2 Weeks   ¥154.00    pH 10 buffer solution 500 ml (1 pt)
 PHA-10-GAL 2 Weeks   ¥384.00    pH 10 buffer solution 4L (1 gal)
 PHA-4 2 Weeks   ¥146.00    pH 4 buffer solution 500 ml (1 pt)
 PHA-4-GAL 2 Weeks   ¥364.00    pH 4 buffer solution 4L (1 gal)
 PHA-7 2 Weeks   ¥146.00    pH 7 buffer solution 500 ml (1 pt)
 PHA-7-GAL 2 Weeks   ¥364.00    pH 7 buffer solution 4L (1 gal)
 PHA-DI 2 Weeks   ¥182.00    De-ionized water 500 ml (1 pt)
 PHA-DI-GAL 3 Weeks   ¥430.00    De-ionized water 4L (1 gal)
 PHAB-DI 4 Weeks   ¥390.00    20 single-use foil packets of de-ionized water
 PHAB-PH 2 Weeks   ¥390.00    5 each single-use foil packets of pH-4, pH-7, pH-10, and de-ionized water
† Price are shown in RMB.

 Note: Comes complete with electrode care instruction sheet.

Temperature compensation not required with ORP electrodes.

Order electrode and mounting assembly separately. Materials of construction must be the same for both electrode and mounting assembly.

Mounting assemblies come with 3 m (10') cable with BNC connector.

For non-standard cable lengths up to 15 m (50') replace the suffix "-10" in the model number with the desired length in feet, add $2 per foot to price. (Additional cost of $2 per foot applies to the entire cable length.


  Ordering Example: (1) PHE-6821 Electrode, ¥4,335.00,  plus (1) PHEH-68K-10 Mounting Assembly, ¥8,940.00, ¥4,335.00 + 8,940.00 = $13,275.00
