pHact pH Sensors with Built-in Differential Preamplifier and ATC  - Discontinued
PHE-9150 Series

PHE-9150 Series:pHact pH Sensors with Built-in Differential Preamplifier and ATC  - Discontinued

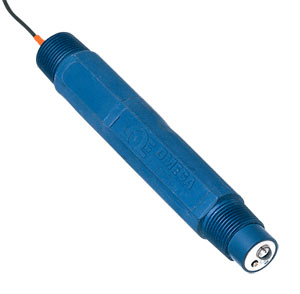

Click for larger image.

• Built-In Differential Preamplifier
• Automatic Temperature Compensation
• High Temperature
• Low Maintenance
• Long Insertion Length
• Any Angle Orientation

View related products - pH Field and Laboratory Electrodes

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The PHE-9150 series has been discontinued. Please contact our Flow Engineering department.

The pHACT is a Fast Acting pH Sensor, with a built-in differential amplifier and 100Ω Platinum RTD Automatic Temperature Compensation sensor that provides a compensated output compatible with any pH meter. It is an ideal solution for ground loop problems, since it has a built-in solution ground and low impedance output, making the pHACT immune to noise. The PPS molded body has a high chemical resistance. The PHE-9150 series uses a High pH glass formulation, the perfect choice for extreme pH applications, with a triple PTFE junction reference cell. Coupled with the novel Plunger electrode design, this sensor assures low maintenance in most applications. The PHE-9151 is manufactured for low viscosity and in-line use, with a 3 /4 ' or 1' MNPT. It is ideal for the pulp and paper industry, as well as electroplating and petro-chemical applications. The PHE-9153 has 0.5' (12mm) insertion length, while PHE-9151 has 2.3' (59mm) for use in large pipes. PHE-9150/52 are manufactured in such a way that can be used in-line or submersible applications, with a 3 /4 " or 1' MNPT. While the PHE-9150 has only 0.9' (23mm) insertion length, the PHE-9152 offers 2.3' (59mm), to be able to reach into large diameter pipes, or tanks.

For complete product specifications see the Related Links section at the bottom of this page.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 PHE-9153-15    Consult sales   pHACT 3/4' MNPT sensor
 PHE-9151-15    Consult sales   pHACT 3/4' MNPT sensor with long insertion
 PHE-9152-15    Consult sales   Long length insertable sensor
 PHE-9152-20    Consult sales   Long length insertable sensor with 4.6 m (20') of cable
 PHE-9150-15    Consult sales   pHACT sensor with recessed bulb
 PHE-9150-15-HT    Consult sales   pHACT sensor with recessed bulb and high temperature reference cell
 Accessories
 PHA-10 2 Weeks   ¥154.00    pH 10 buffer solution, 500 ml (1 pt)
 PHA-10-GAL 2 Weeks   ¥384.00    pH 10 buffer solution 4L (1 gal)
 PHA-4 2 Weeks   ¥146.00    pH 4 buffer solution, 500 ml (1 pt)
 PHA-4-GAL 2 Weeks   ¥364.00    pH 4 buffer solution, 4L (1 gal)
 PHA-7 2 Weeks   ¥146.00    pH 7 buffer solution, 500 ml (1 pt)
 PHA-7-GAL 2 Weeks   ¥364.00    pH 7 buffer solution, 4L (1 gal)
 PHA-DI 2 Weeks   ¥182.00    De-ionized water, 500 ml (1 pt)
 PHA-DI-GAL 3 Weeks   ¥430.00    De-ionized water, 4L (1 gal)
 PHAB-DI 4 Weeks   ¥390.00    20 single use foil packets of de-ionized water
 PHAB-PH 2 Weeks   ¥390.00    5 each single use foil packets of pH-4, pH-7, pH-10, and de-ionized water
† Price are shown in RMB.

 Note: Comes complete with electrode care instruction sheet and 4.6 m (15 ft) of cable.

For non standard cable lengths, replace the suffix "15" in the model number with the required length in feet, add $2 per foot to price. (Additional per foot cost applies to the entire cable length.)

For HF/Fluoride resistant electrode, add suffix "-HF" to model number, add $50 to price.

For high temperature reference cell, add suffix "HT" to model number, add $35 to price.
