Real Time SD Memory Card Data Logger (SD Card Included)
•
Automatic Buffer Calibration (Buffers Sold Separately)
•
RS232/USB Interface (Optional Cable)
•
Automatic Temperature Compensation (Optional Probe)
This product is Discontinued, replaced by
PHH444 Series as an alternative
.

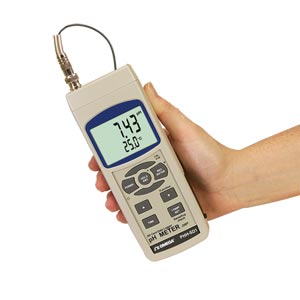

The OMEGA™ PHH-SD1 is innovative and easy to operate. What
sets the PHH-SD1 apart from other pH/ORP meters is that it
incorporates a real-time SD card data logger. The PHH-SD1
measures pH or mV (ORP) using standard electrodes with BNC
connectors. Download data from the SD card directly into an Excel
spreadsheet. This allows the user to do further data or graphical
analysis without special software. The PHH-SD1 has a wide variety
of applications from water conditioning, aquariums, beverage
manufacturing and fish hatcheries to food processing,
photography, paper and plating industries, educational and
other laboratories.
SPECIFICATIONS Display: 52 x 38 mm (2.04 x 1.5") LCD with switchable green backlight Measurement: 0 to 14 pH or -1999 mV to 1999 mV (ORP) Sampling Time: Auto: 1 second to 8 hrs 59 min 59 sec Manual: Push the data logger button once will save data one time Memory Card: SD memory card Temperature Compensation: Automatic (with optional temperature probe) or manual Display Update: At 1 second Data Output (RS232/USB): With optional cable/software Operating Temperature: 0 to 50°C (32 to 122°F) Operating Humidity: Less than 85% RH Power: 6 “AAA” alkaline batteries (included), or 9V power adaptor (optional) Current Draw: 14 mA DC (without SD card or backlight), 49 mA (all functions) Weight: 489 g (1.08 lb) Dimensions: 177 H x 68 W x 45 mm D (6.96 x 2.67 x 1.77") Input Impedance: 10^12 Ω Manual Temperature Compensation: Pushbutton on front panel Automatic: With the optional temperature measurement probe from 0 to 65°C (32 to 149°F) Calibration: pH4, pH7, and pH10, 3 points calibration provides the best linearity and accuracy
† Price are shown in RMB.
Note: Comes complete with operator’s manual, hard carrying case, 2 GB SD card, and 6 “AAA” batteries. Electrodes are sold separately.
