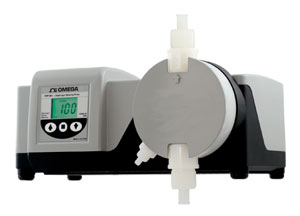

Diaphragm Metering Pump |
| PHP-800 Series |
|
 |
|
|
|
|
|
¥
18,935.00
PHP-803
|
| • |
Digital Control
|
| • |
Diaphragm Failure Detection System
|
| • |
External Signal Control Available
|
| • |
Variable Speed
|
| • |
NEMA 4X (IP66) (Washdown)
|
| • |
Programmable Alarm Relays
|
View related products - Pumps & Mixers
|
| |
|
|
|
 |
The PHP-800 Series of metering
pumps are well suited for use in
many applications, including;
agricultural industries for pumping
fertilizers, and in some cases pH
lowering chemicals (acid); waste
water treatment fields (including
municipal); plating and metal
finishing; and larger HVAC cooling
towers, just to name a few. The
pump has PVDF double ball valves
that can pump up to 42 GPH
(2700 ml/min) and handle output
pressures up to 12.1 bar (175 psi).
The PHP-800 also has an operator
friendly digital touch pad and easy
to read back-lit LCD display. The
display shows output % and the
diaphragm failure alarm status.
A DFD, built-in leak detection
system senses a chemical leak in
the pump head and shuts off the
pump. There is also a priming/degassing valve built into the
pump head. The wash down
rated housing is made of durable,
chemical resistant, powder coated
aluminum. Brush life is at
3400 hours.
SPECIFICATIONS
Max Working Pressure: 12.1 bar (175 psig)
Max Fluid Temperature: 54°C (130°F)
Max Ambient Temperature: -10 to 43°C (14 to 110°F)
Output Adjustment Range: 1 to 100% in 1% increments
Duty Cycle: Continuous
Max Viscosity: 1500 Centipoise
Max Suction Lift: 4.6 m (15') water 0 psig
Enclosure: NEMA 4X (IP66)
Alarm Ready:
SPST N.O.: (field switchable) 3A max @ 125 Vac (24 Vdc)
External Signal Control: ("-ESC" option) 4 to 20mA, 0 to 10 Vdc, AC sign waves TTL, CMOS or contract
Motor on Signal:
5 to 20 Vdc open collector output closed when energized
Power Cord Plug Type:
115 Vac/60Hz 1 phase (2.1A max): NEMA 5/15 (USA) (standard)
230 Vac/60Hz 1 phase (1A max): NEMA 5/15 (USA) ("-230" option)
220 Vac/50Hz 1 phase (1.5A max): CEE 7/VII (Europe) ("-220" option)
240 Vac/50Hz 1 phase (1A max): CEE 7/VII (UK) ("-240" option)
Approx. Shipping Weight: 13 kg (29 lb)
Wetted Components:
Diaphragm: PTFE, (PTFE coated Hypalon®)
Pump Head: PVDF (natural color)
Pump Head Adapters: PVDF (natural color)
Injection/Check Valve:
Body and Insert: PVDF (natural color)
Check Ball: Ceramic
Spring: Hastelloy® C-276
Ball Seat O-Ring: FKM (optional EP)
Static Seal O-Ring: FKM (optional EP)
Footvalve/Strainer PVDF: natural
Polypropylene: grey
Suction Tubing [3.7 m (12')]: PVC (clear)
Non-Wetted Components
Enclosure: 413 aluminum (powder coated)
Pump Head Cover: 413 aluminum (powder coated)
Cover Screws: 300 stainless steel
Motor Shaft: Nickel plated steel
DFD System Sensor Pins: HastelloyR C-276
Power Cord: 3 conductor, SJTW-A water-resistant, 1.8 m (6')
Each Model Includes: Priming valve/ pressure relief valve (located on pump head), Foot valve/strainer with 13 mm (1.2") ceramic ball, and 13 mm (1.2") barbed adapter. Injection fitting with 13 mm (1.2") ceramic ball and one 13 mm (1.2") barbed adapter. Suction tubing, 3 m (10') of 13 mm (1.2") clear PVC tubing. Mounting brackets (2) w/screws.
Pump Head Adapters
Standard Unit: Barbed for 13 mm (1.2") tubing (2 pieces)
PHP-800M Units: Threaded, 13 mm (1.2") male NPT (2 pieces)
PHP-800F Units: Threaded, 13 mm (1.2") female NPT (2 pieces)
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with operator’s manual, priming valve, pressure relief valve, foot valve, injection fitting, 3 m (10') suction tubing, and mounting bracket.
For optional 230 Vac/60 Hz add suffix, "-230" to the model number, no additional charge.
For optional 220 Vac/50 Hz and a European plug add suffix, "-220" to the model number, no additional charge.
For units with 240 Vac/50 Hz and a UK style plus add suffix, "-240" to the model number, no additional charge.
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Model
|
| |
Select
03 for 74.6LPH Max Output at 0 PSI
04 for 159LPH Max Output at 0 PSI
|
(2)
|
Fitting
|
| |
Select
Nothing(leave field blank) for Barb fitting
M for MNPT fitting
F for FNPT fitting
|
(3)
|
Control Type
|
| |
Select
Nothing(leave field blank) for Local
-ESC for External
|
(4)
|
Power Cord Plug Type
|
| |
Select
Nothing(leave field blank) for 115 Vac/60Hz
-230 for 230 Vac/60 Hz
-220 for 220 Vac/50 Hz and a European plug
-240 for 240 Vac/50 Hz and a UK style plug
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | |
|
|
|
|
|
|
| |
|
