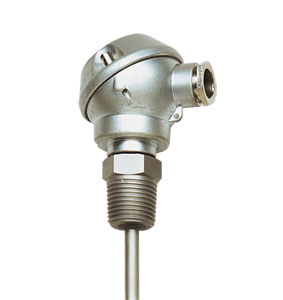

RTD Probe with Submini Aluminum Protection Head

PR-19

Click for larger image.

•	Subminiature aluminum protection head
•	Low temperature range: -50 to 250°C (-58 to 482°F)
•	High temperature range: -50 to 450°C (-58 to 842°F)
•	Extreme temperature range: -200 to 600°C (-328 to 1112°F)
•	Choice of PT100 Ω or PT1000 Ω element
•	Standard probe lengths of 2, 3, 4, 6, 9, 12, 18 and 24 in.
•	316 stainless steel sheath construction
•	Extremely low profile for tight space restraints
•	Can be ordered with "spring-loaded" option for use in thermowell
View related products - RTD (PT100) Probes, Elements and Assemblies

The PR-19 series has been updated with low, high, and extreme temperature ranges; all of the new models will be PR-19(L,H,E)*. The older models have been discontinued.

Our PR-19 industrial probe with subminiature aluminum protection head and screw-on cap is manufactured with a 316 stainless steel sheath. It includes PT100 Ω platinum RTD element or PT1000 RTD element and 1/2" NPT mounting threads. These probes can be used alone, or can be placed directly into a thermowell. The spring load option should not be ordered unless a thermowell is used. All probes include a screw terminal block for easy connection of insulated copper extension wire. Replacement probes (without protection head assembly) are available as well as a "spring-loading" option which allows for the probe to bottom out in a thermowell for quicker and more accurate response.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
PR-19E-3-100-1/8-6	2 Weeks	¥1,490.00	RTD probe with aluminum head, 6 in. length	qty.

PR-19E-3-100-1/4-6	8 Weeks	¥1,490.00	RTD probe with aluminum head, 6 in. length	qty.

PR-19E-3-100-1/4-12	8 Weeks	¥1,960.00	RTD PROBE, 12 in., with aluminum head	qty.

PR-19E-3-100-1/4-4	8 Weeks	¥1,415.00	RTD PROBE, 4 in., with aluminum head	qty.

PR-19H-3-100-1/4-6	8 Weeks	¥1,140.00	RTD PROBE, 6 in., with aluminum head	qty.

PR-19E-3-100-1/4-18	8 Weeks	¥1,780.00	RTD PROBE, 18 in., with aluminum head	qty.

PR-19E-3-100-3/16-12	8 Weeks	¥1,600.00	RTD PROBE, 12 in., with aluminum head	qty.

PR-19H-3-100-1/8-12	8 Weeks	¥1,145.00	RTD PROBE, 12 in., with aluminum head	qty.

PR-19L-3-100-1/4-12	8 Weeks	¥1,075.00	RTD PROBE, 12 in., with aluminum head	qty.

PR-19L-3-100-1/4-6	8 Weeks	¥980.00	RTD PROBE, 6 in., with aluminum head	qty.

PR-19L-3-100-3/16-12	6 Weeks	¥1,055.00	RTD probe with aluminum head, 12 in. length	qty.

PR-19L-3-100-1/4-18	8 Weeks	¥1,095.00	RTD probe with aluminum head, 18 in. length	qty.

† Price are shown in RMB.

Part Number Builder

	(1)		(2)		(3)		(4)		(5)	(6)	(7)
P P R R - - 1 1 9 9		- -		- -		- -		- -
Qty:

Option Descriptions

(1)

RANGE

Select
L for LOW (-50 to 250°C)
H for HIGH (-50 to 450°C)
E for EXTREME (-200 to 600°C)

(2)

NUMBER OF WIRES

Select
3 for 3 WIRE
4 for 4 WIRE

(3)

OHMS

Select
100 for 100 OHMS
1000 for 1000 OHMS

(4)

SHEATH DIAMETER

Select
1/8 for 1/8" DIAMETER
3/16 for 3/16" DIAMETER
1/4 for 1/4" DIAMETER

(5)

SHEATH LENGTH

Select
2 for 2 INCHES
3 for 3 INCHES
4 for 4 INCHES
6 for 6 INCHES
9 for 9 INCHES
12 for 12 INCHES
18 for 18 INCHES
24 for 24 INCHES

(6)

OPTION 1

Select
Nothing(leave field blank) for STANDARD
-SL for SPRING-LOADED

(7)

OPTION 2

Select
Nothing(leave field blank) for STANDARD
-RP for REPLACEMENT PROBE

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
