Stainless Steel Filter Regulators for Harsh Environments
PRG350 Series
1 year warranty

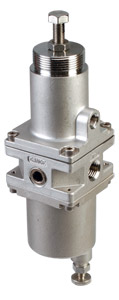

PRG350 Stainless Steel pneumatic Filter Regulators
PRG350 Series:Stainless Steel Filter Regulators for Harsh Environments
Click for larger image.

• All 316 SS Construction
• High Flow Capacity
• Tapped Exhaust Port for Remote Venting
• Minimal Air Consumption
• 25 Micron Filter

View related products - Valves, Regulators and I/P Converters

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The PRG350 series of stainless steel filter regulators are designed to stand up to the harshest environments while providing highly accurate pressure regulation. Proven 316 stainless steel housing and filter assemblies along with fluorocarbon elastomers make the PRG350 compatible with sour gas and adaptable to off shore environments.

SPECIFICATIONS
Exhaust Capacity: 1.0 scfm (1.7 m3/hr) (outlet pressure 10 psig above set point)
Air Consumption: 4 scfh (0.1 m3/hr) max
Maximum Supply Pressure: 290 psig (20.0 bar)
Operating Temperatures: -29 to 85°C (-20 to 185°F)
Filter: 25 micron
Porting:
    Inlet/Outlet: 1/4 NPT or 1/2 NPT
    Gauge (2): 1/4 NPT
    Exhaust: 1/8 NPT
Materials: Meets NACE #MR-0175 material requirement for sulfide stress cracking
    Body, Bonnet, Filter: AISI 316 stainless steel
    Diaphragm Seals: Fluorocarbon
    Range Spring, Pintle Spring: Inconel
Weight:
    PRG352: 1.3 kg (2.9 lb)
    PRG354: 1.0 kg (2.2 lb)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 1/4 NPT Pressure Port Models
 PRG354-30    Consult sales   0 to 30 psi (0 to 2.1 bar) output pressure range
 PRG354-60    Consult sales   0 to 60 psi (0 to 4.1 bar) output pressure range
 PRG354-100    Consult sales   0 to 100 psi (0 to 6.9 bar) output pressure range
 PRG354-150    Consult sales   0 to 150 psi (0 to 10.3 bar) output pressure range
 1/2 NPT Pressure Port Models
 PRG352-30    Consult sales   0 to 30 psi (0 to 2.1 bar) output pressure range
 PRG352-60    Consult sales   0 to 60 psi (0 to 4.1 bar) output pressure range
 PRG352-100    Consult sales   0 to 100 psi (0 to 6.9 bar) output pressure range
 PRG352-150    Consult sales   0 to 150 psi (0 to 10.3 bar) output pressure range
 Accessories
 PRG350-MN 7 Weeks   ¥237.00    Mounting nut
 PRG350-MB 7 Weeks   ¥435.00    Mounting bracket and nut
† Price are shown in RMB.

 Note: Each unit comes complete with operator's manual.
