Barrier Strip Style Power Supply, Provides Regulated Excitation for Strain Gages and Pressure Transducers
PSS-Series Power Supplies
5 year warranty

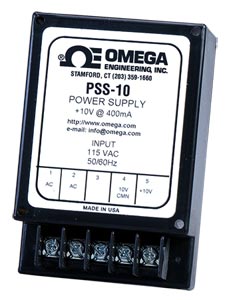

PSS-Series Power Supplies:Barrier Strip Style Power Supply, Provides Regulated Excitation for Strain Gages and Pressure Transducers
Click for larger image.

• Recessed Barrier Strip Secures Wire Without Twisting
• Compact Design Allows Mounting Where Space Is Restricted
• Ideally Suited for Use With Strain Gages, Transducers, Microprocessor Systems, and Test Equipment

View related products - Accessories for Pressure Measurement

Click to scroll below to order See Specs PDF View a printer friendly page



SPECIFICATIONS
Input Voltage: 115 Vac, 220Vac (-220 suffix) or 230 Vac (-230 suffix) ±10 Vac
Input Frequency Range: 50 to 60 Hz
Isolation Resistance: 50 MOhms min.
Temperature Coefficient:±0.02%
Noise and Ripple: 1 mV rms Single and Dual Output; 2 mV rms Triple Output
Storage Temperature: -25 to 85°C (-13 to 185°F)
Maximum Case Operating Temperature Without Derating: 71°C (160°F)
Short Circuit Protection: Foldback current limiting
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 115 Vac Power Models
 PSS-5A 2 Weeks   ¥2,490.00    Single output barrier strip style power supply with +5 V output voltage, 500 mA output current, ±1% voltage accuracy, and ±0.05% line & load
 PSS-5B 7 Weeks   ¥2,475.00    Single output barrier strip style power supply with +5 V output voltage, 1000 mA output current, ±1% voltage accuracy, and ±0.05% line & load
 PSS-10    Consult sales   Single output barrier strip style power supply with +10 V output voltage, 400 mA output current, ±1% voltage accuracy, and ±0.05% line & load
 PSS-12 7 Weeks   ¥2,840.00    Single output barrier strip style power supply with +12 V output voltage, 500 mA output current, ±1% voltage accuracy, and ±0.05% line & load
 PSS-15 2 Weeks   ¥3,285.00    Single output barrier strip style power supply with +15 V output voltage, 400 mA output current, ±1% voltage accuracy, and ±0.05% line & load
 PSS-D12A 2 Weeks   ¥2,425.00    Dual output barrier strip style power supply with ±12 or 24 V output voltage, +120 mA output current, ±0.5% voltage accuracy, and ±0.02% line & load
 PSS-D12A-220V 7 Weeks   ¥2,650.00    Dual output barrier strip style power supply with ±12 or 24 V output voltage, +120 mA output current, ±0.5% voltage accuracy, and ±0.02% line & load; 220V Input
 PSS-D12B In Stock   ¥2,780.00    Dual output barrier strip style power supply with ±12 or 24 V output voltage, +240 mA output current, ±0.5% voltage accuracy, and ±0.02% line & load
 PSS-D15A 7 Weeks   ¥2,410.00    Dual output barrier strip style power supply with ±15 or 30 V output voltage, +50 mA output current, ±0.5% voltage accuracy, and ±0.02% line & load
 PSS-D15B    Consult sales   Dual output barrier strip style power supply with ±15 or 30 V output voltage, +100 mA output current, ±0.5% voltage accuracy, and ±0.02% line & load
 PSS-D15C 7 Weeks   ¥2,650.00    Dual output barrier strip style power supply with ±15 or 30 V output voltage, +200 mA output current, ±0.5% voltage accuracy, and ±0.02% line & load
 PSS-T12 7 Weeks   ¥3,630.00    Dual output barrier strip style power supply with +12 and 5 V output voltage, ±12 V @ 100 mA; +5 V @ 600 mA output current, ±1% voltage accuracy, and ±0.05% line & load
 PSS-T15 7 Weeks   ¥3,630.00    Dual output barrier strip style power supply with +15 and 5 V output voltage, ±15 V @ 100 mA; +5 V @ 500 mA output current, ±1% voltage accuracy, and ±0.05% line & load
 220/230 Vac Power Models
 PSS-10-220 7 Weeks   ¥3,280.00    Single output barrier strip style power supply with +10 V output voltage, 400 mA output current, ±1% voltage accuracy, and ±0.05% line & load
 PSS-D12A-220V 7 Weeks   ¥2,650.00    Dual output barrier strip style power supply with ±12 or 24 V output voltage, +120 mA output current, ±0.5% voltage accuracy, and ±0.02% line & load
 Accessories
 POWER CORD-SE 12 Weeks   ¥130.00    Power cord, US Plug to flying lead termnation
† Price are shown in RMB.

 Ordering Example: (1) PSS-5A Single output barrier strip style power supply with +5 V output voltage, 500 mA output current, ±1% voltage accuracy, and ±0.05% line & load, ¥2,490.00
