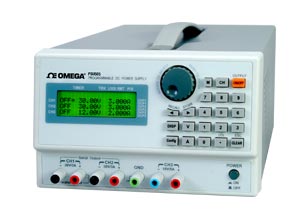

The PSU505 is a DC power supply
with 3 programmable outputs and
12-bit resolution. The total output
power is 210 W: channels 1 and
2, 30 V/3 A, provide 90 W each;
channel 3, 10 V/ 5 A, puts out
30 W at a constant rate. Channel
1 provides outputs in serial and
parallel modes; channel 2, in serial
mode only. On channel 3, the
user can perform auto-ranging,
a feature not found on traditional
power supplies.
The user can monitor OVP
(overvoltage protection) and OCP
(overcurrent protection) on the
front-panel LCD. Because of its
0.01% load-and-line regulation and
50 ms max response time, the PSU505 remains stable even when
the voltage source and load change.
The PSU505 is also highly efficient,
with an average measurement time
of 50 ms.
The PSU505 is easy to use,
featuring an adjustable tracking
function, a rotary selection dial, and
an alphanumeric keypad. With the
timer function, the user can control
when each output is switched off
(1 second to 100 hours); this feature
is particularly useful in burn-in-room
and electroplating applications.
Up to 100 configurations can be
stored in memory. A key-lock
function prevents users from
changing the original settings.
SPECIFICATIONS
Model
PSU505
Channel Number
CH1 and CH2
CH3
Output Voltage
0 to 30 V
0 to 15 V
Output Current
0 to 3 A
0 to 5 A
Output Power (CH3 Auto-Ranging)
90W
30W
Line Regulation ±(% of output + offset)
Voltage
0.01% + 2 mV
Current
0.01% + 300 µa
Load Regulation ±(% of output + offset)
Voltage
≤3 mV
≤5 mV
Current
0.01% + 300 µA
Ripple and Noise (20Hz to 20Mhz)
Normal Mode Voltage
300µVrms/3 mVpp
1 mVrms/20 mVpp
Normal Mode Current
<1 mA
<5 mA
Resolution
Programming
10 mV/1 mA
10 mV/2 mA
Readback
10 mV/1 mA
3 mV/2 mA
Programming Accuracy ±(% of output + offset)
Voltage
0.05% + 20 mV
0.05% + 6 mV
Current
0.05% + 3 mA
0.05% + 4 mA
Readback Accuracy ±(% of output + offset)
Voltage
0.05% + 20 mV
0.05% + 6 mV
Current
0.05% + 3 mA
0.05% + 4 mA
Temperature Coeficient per ±(% of output + offset)
Voltage
<0.1% + 3 mV
Current
<0.2% + 2 mA
Tracking Accuracy ±(% of output + offset)
Voltage
<0.1% + 40 mV
Transient Responce Time
<50 µs
Stability, Constant Output and Temperature ±(% of output + offset), 8 hrs
Voltage
<0.2% + 2 mV
Current
<0.1% + 1 mA
Voltage Programming Speed
Rising time at full load
1 ms
Rising time at no load
1 ms
Falling time at full load
2.5 ms
Falling time at no load
250 ms
General
AC Line Input Voltage Ranges
115/220 Vac ±10% (47 to 63 Hz)
Temperature Ranges
Operating: 0 to 40°C (32 to 104°F); Storage: -10 to 70°C (14 to 158ºF)
Common-Mode Voltage
±240 Vdc
Dimensions (W x H x D)
216 x 135 x 432 mm (8.5 x 5.3 x 17")
Weight
6.5 kg (14 lb)
Communications
RS232/USB interface
† Price are shown in RMB.
Note: Comes with power cord, fuse and complete operator’s manual.
