NEMA-4X Differential Pressure Switches |
| PSW-350 Series |
|
 |
|
|
NEMA-4X Differential Pressure Switches
 |

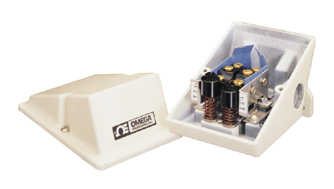

| Click for larger image. |
|
|
¥
6,840.00
PSW-351
|
| • |
Setpoint Repeatability of ±1%
|
| • |
Rugged Epoxy-Coated NEMA-4X Watertight Enclosure
|
| • |
Dependable Switch Actuation Between the Two Input Pressures
|
| • |
High Static Pressure
|
| • |
Single Setpoint with Adjsutable Deadband or Dual Setpoint with Fixed Deadband
|
View related products - Pressure Switches
|
| |
|
|
|
 |
SPECIFICATIONS
Approval: UL listed, CSA certified
Storage Temp: -29 to 66°C (-20 to 150°F)
Ambient Temp. Limits: -29 to 66°C (-20 to 150°F) Set point typically shifts +1% of range per 28°C (50°F) of temperature change
Process Fluid: -18 to 66°C (0 to 150°F) Buna-N and PTFE diaphragms; -7 to 149°C (20 to 300°F) for FKM diaphragms
Enclosure: NEMA-4X watertight and corrosion resistant
Setpoint Repeatability: ±1% of range
Switch Output: 1 or 2 SPDT
Electrical Rating: 10 A: 125/250 Vac; 0.5 A: 125 Vdc; 0.25 A: 250 Vac; 15 A: 125/250 Vac
Enclosure: Epoxy coated aluminum, gasketed
Weight: 0.9 kg (2 lb)
Electrical Connection: 3 /4 NPT female
Pressure Connection: 1 /4 NPTF; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) PSW-352 is a 9-60 in H2O single setpoint differential pressure switch with adjustable deadband, Buna-N diaphragm and 10 Amp SPDT switch, ¥6,840.00
|
|
|
|
|
| |
|
