Differential Pressure Switch
PSW845 Series
1 year warranty

Differential Pressure Switch

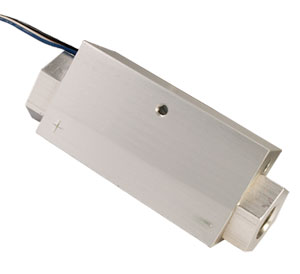

PSW845 Series:Differential Pressure Switch
Click for larger image.

¥ 1,705.00  PSW845-1
• Rugged Differential Switch with Excellent Bypass Characteristics
• 0.25A SPDT Switch
• Ranges to 250 PSID
• Steel, Anodized Aluminum, Buna and Loctite #271 Wetted Parts

View related products - Pressure Switches

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

The PSW845 is a rugged differential pressure switch, with excellent bypass characteristics. It is able to handle a variety of media to 6000 psig. The PSW845 can be mounted in any orientation, and is capable of withstanding light to moderate mechanical shock and vibratory loads.

SPECIFICATIONS
Switch: SPDT, rated 0.25 A @ 120 Vac/175 Vdc
Pressure Ratings:
    Vacuum: to 6000 psig
    Differential Pressure: to 2000 psid
    Proof: 9000 psig
Wetted Parts: Steel spring, anodized aluminum piston, body and fitting, Buna seal, Loctite #271 sealing compound
Fitting: 1/4-18 NPT female
Electrical Connection: 300 mm (12") pigtail leads, 24 AWG
Ambient Temperature: -54 to 107°C (-65 to 225°F); setpoint change of up to 2% of sensor capacity may be anticipated when switch is used below -23°C or above 52°C
Cycling: Not to exceed 20 cycles/min
Dimensions: 102 L x 38.1 H x 31.8 mm D (4 x 1.5 x 1.25")
Weight: Approx 241 g (8.5 oz)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 PSW845-1 5 Weeks   ¥1,705.00    2 to 7 psid decreasing range, 7 to 13 psid increasing range, ±2 psi repeatability
 PSW845-2 5 Weeks   ¥1,705.00    5 to 16 psid decreasing range, 13 to 25 psid increasing range, ±4 psi repeatability
 PSW845-3 5 Weeks   ¥1,695.00    10 to 21 psid decreasing range, 25 to 45 psid increasing range, ±8 psi repeatability
 PSW845-4 2 Weeks   ¥1,695.00    20 to 80 psid decreasing range, 35 to 160 psid increasing range, ±16 psi repeatability
 PSW845-5 5 Weeks   ¥1,695.00    35 to 120 psid decreasing range, 120 to 250 psid increasing range, ±32 psi repeatability
† Price are shown in RMB.

 Note: Comes complete with operator's manual.
  Ordering Example: (1) PSW845-3 differential pressure switch, 25 to 45 psi range, ¥1,695.00
