Connectors, Twist Lock (MIl-C 26482G) series 1 Type

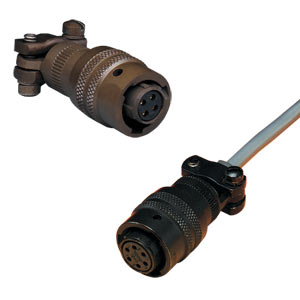

PT06F Connectors

Connectors, Twist Lock Type, MIL-C 26482G, 26482
PT06F Connectors:Connectors, Twist Lock (MIl-C 26482G) series 1 Type
Click for larger image.

¥ 238.00  PT01F8-4P
• RoHS compliant finishes available
• Rugged Aluminum Shells
• Rated to 257°F (125°C)
• Strain Relief Cable Clamp
• Secure Solder Contacts
• #20 AWG Wire Size
• High Conductivity Gold Plated Contacts

View related products - Accessories for Pressure Measurement

Click to scroll below to order See Specs PDF View a printer friendly page

The PT Connectors can now be purchased with either RoHS or MIL-C 26482G compliant finishes, and provide an efficient method of connecting pressure transducers to associated instrumentation with multi-conductor cable. The solder contacts are designed to provide positive connections for signal or power circuitry. The connectors come in a selection of operating temperature ranges to meet most industrial applications.

For complete product specifications see the Related Links section at the bottom of this page.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 ROHS
 PT01F8-4P-R 2 Weeks   ¥243.00    Environmentally protected connector with 4 male contacts, -55 to 125°C (-67 to 257°F) temperature range
 PT01F10-6P-R 2 Weeks   ¥322.00    Environmentally protected connector with 6 male contacts, -55 to 125°C (-67 to 257°F) temperature range
 PT06F10-6S-R 4 Weeks   ¥359.00    Indoor use connector with 6 female contacts, -55 to 125°C (-67 to 257°F) temperature range
 PT06F8-4S-R 2 Weeks   ¥322.00    Indoor use connector with 4 female contacts, -55 to 125°C (-67 to 257°F) temperature range
 PT06F8-4SG-R 101 Weeks   ¥450.00    Internal sealing gland connector with 4 female (-67 to 257°F) temperature range
 Non-ROHS
 PT01F8-4P 2 Weeks   ¥238.00    Environmentally protected connector with 4 male contacts, -55 to 125°C (-67 to 257°F) temperature range
 PT01F10-6P    Consult sales   Environmentally protected connector with 6 male contacts, -55 to 125°C (-67 to 257°F) temperature range
 PT06F8-4S 2 Weeks   ¥303.00    Indoor Connector with 4 female contacts, -55 to 125°C (-67 to 257°F) temperature range
 PT06F8-4SG    Consult sales   Environmentally protected connector with 4 female contacts, -55 to 125°C (-67 to 257°F) temperature range
 PT06F10-6S In Stock   ¥340.00    Environmentally protected connector with 6 female contacts, -55 to 125°C (-67 to 257°F) temperature range
 Screw-on High Temp Connector
 PCS06E10-6S 2 Weeks   ¥2,655.00    Temp range -55 to 204°C (-67 to 399°F)
† Price are shown in RMB.

 Note: “P” suffix denotes male pins; “S” suffix denotes female sockets
  Ordering Example: (1) PT01F8-4P Connector with 4 male contacts, -55 to 125°C temperature range, ¥238.00


Keywords:Connectors, Twist Lock Type PTO6F10-6S, PT06, PTO6, MIL-C 26482G, 26482
