Cryogenic Sensors and Accessories

PT100, CY82, CYW4 & CY100 Series

Click for larger image.

•	Platinum Resistance Sensors for Cryogenic Measurements
•	4-Wire stainless steel probe (Band 4 Silicon Diode Sensor)
•	Special Low Thermal Conductivity Extension Wire for CY7 Series Diodes
•	Special Low Thermal Conductivity Extension Wire for CY7 Series Diodes
View related products - Superconductivity and Cryogenics Temperature Measurement

Typical connection for Cryogenic sensors such as the CY7 series. The connection points (A) are made close to the sensor in the case of 4-lead measurement, and near or at the instrumentation for a 2-lead measurement. Generally, the 4-lead connection is preferred.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

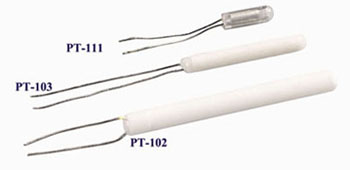

PT100 RTD Sensors

PT-102		Consult sales	Sensor, 14 to 837 K, 2 x 20.3 mm (250 mg)	qty.

PT-103	10 Weeks	¥3,635.00	Sensor, 14 to 837 K, 1.8 x 12.1 mm (120 mg)	qty.

PT-111		Consult sales	Sensor, 14 to 837 K, 1.8 x 5 mm (52 mg)	qty.


Accessories for Cryogenic Products

CY82-4SL		Consult sales	6' probe, 12' cable, stripped leads, 1/8' SS Sheath	qty.

CY82-P1	2 Weeks	¥221.00	Sensor Plug for CYTX231 Series	qty.

CY82-P2	2 Weeks	¥195.00	Sensor Plug for CYC320 Series	qty.

CYW4-32-25	10 Weeks	¥3,140.00	4-lead wire, 32 AWG, 25 ft.*	qty.

CYW4-36-25	10 Weeks	¥2,270.00	4-lead wire, 36 AWG, 25 ft.*	qty.

† Price are shown in RMB.

Note:
* Phosphor bronze wire, Insulation is polyimide on 32 AWG wire and formvar (vinyl acetal) on 36 AWG wire. Both types of insulation are rated down to 1.4K
