Over the Side Immersion Heaters for Corrosive Solutions
PTHF Series

Over the Side Immersion Heaters for Corrosive Solutions

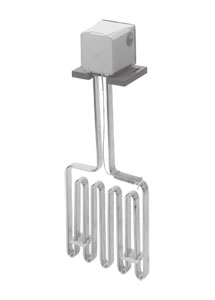

PTHF Series:Over the Side Immersion Heaters for Corrosive Solutions
Click for larger image.

¥ 11,100.00  PTHF-302
• PTHF Series
• Corrosion Resistant
• Solutions up to 212°F (100°C)
• Thin Blade Heating Element
• 1 or 3 Phase Design
• Overtemperature Protection
• CIT Series
• 3 to 10 kW
• 240 V, 1 Phase
• Used for Soft Metal Melting
• Rugged, Reliable
• Efficient Heat Transfer
• Three Configurations Available

View related products - Immersion Heaters

Click to scroll below to order See Specs PDF View a printer friendly page

PTHF Series
dimensions
Note: B dimension is the heated section.

kW Volts Phase Dimensions-in. Model No. Wt.
lbs
A B
3
3		240
480		1, 3
1, 3		16
16		7
7		PTHF-302
PTHF-304		7
7
4
4		240
480		1, 3
1, 3		18
18		9
9		PTHF-402
PTHF-404		8
8
6
6		240
480		3
3		22
22		13
13		PTHF-602/3P
PTHF-604/3P		9
9
8
8		240
480		3
3		27
27		18
18		PTHF-802/3P
PTHF-804/3P		10
10
10
10		240
480		3
3		31
31		22
22		PTHF-1002/3P
PTHF-1004/3P		11
11



CIT Series
dimensions
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 PTHF-302 9 Weeks   ¥11,100.00    Immersion heater, 240V, 3 kW
 PTHF-404 8 Weeks   ¥12,210.00    Immersion heater, 480V, 4 kW
 PTHF-602 9 Weeks   ¥14,395.00    Immersion heater
 PTHF-604 7 Weeks   ¥16,570.00    Immersion heater
 PTHF-802 8 Weeks   ¥16,340.00    Immersion heater
 PTHF-804 6 Weeks   ¥18,810.00    Immersion heater
 PTHF-1002 6 Weeks   ¥18,460.00    Immersion heater
 PTHF-1004 6 Weeks   ¥18,460.00    Immersion heater
 CIT-1619 8 Weeks   ¥33,465.00    Heater, 240V, 5 kW
† Price are shown in RMB.
