Over the Side Immersion Heaters for Plating Tanks |
| PTH Series |
|
 |
|
|
Over the Side Immersion Heaters for Plating Tanks
 |

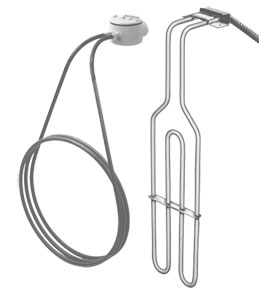

| Click for larger image. |
|
|
¥
6,565.00
PTH-101
|
| • |
PTH Series
• PTH Series for Heavy Duty Service
• Passivated 316SS Sheath for Corrosive Service
• Portable
• Vapor Tight Terminal Enclosure
|
| • |
CT Series
• CT Series, Lightweight Thin Profile Heaters
• For Water and Corrosive Liquids
•Vapor Tight Terminal Enclosure
|
View related products - Immersion Heaters
|
| |
|
|
|
 |
THE PTH SERIES models are heavy duty general purpose heaters for
heating plating tanks, rinse tanks and other aqueous solutions. The
Type 316 Stainless Steel is passivated to provide additional
corrosion resistance. These heaters are equipped with a vapor tight
terminal enclosure and a 3 foot long vinyl covered flexible conduit
containing the two power leads and a ground wire. The stainless steel
mounting bracket can slide along the element for easy installation.
| Model No. |
kW |
Volts |
W/In2 |
Dim. In. |
Wt.
lbs. |
| A |
B |
PTH-101
PTH-102 | 1.0
1.0 | 120
240 | 21
21 | 14
14 | 8
8 | 4
4 |
PTH-202
PTH-204 | 2.0
2.0 | 240
480 | 31
31 | 21
21 | 11
11 | 4
4 |
PTH-302
PTH-304 | 3.0
3.0 | 240
480 | 32
32 | 26
26 | 16
16 | 5
5 |
PTH-402
PTH-404 | 4.0
4.0 | 240
480 | 34
34 | 30
30 | 20
20 | 5
5 |
PTH-602
PTH-604 | 6.0
6.0 | 240
480 | 34
34 | 40
40 | 30
30 | 6
6 |
PTH-902
PTH-904 | 9.0
9.0 | 240
480 | 34
34 | 54
54 | 44
44 | 8
8 |
Note: Liquid level should be above B dimension
If used in solutions that develop a scale on the sheath, periodic cleaning is required
Also available in other sheath materials and electrical ratings. Contact Sales for price and
delivery information
THE CT SERIES
The OMEGALUX™ CT Series
immersion heaters are made of
tubular elements contained in a
spiral loop to save space. Terminals
are housed in a cast-alloy vaportight
enclosure with a removable lid.
These heaters are suitable for many
applications, depending on the
sheath material the user selects.
Application: Used to heat a variety of solutions
depending upon the type of sheath
material selected.
| Model No. |
kW |
Volts |
W/In2 |
Dim. In. A |
Sheath |
Wt.
lbs. |
CTS-50
CTS-75 | 5
7.5 | 240
240 | 25
40 | 2
2 | Steel
Steel | 20
20 |
CTC-50
CTC-75 | 5
7.5 | 240
240 | 25
40 | 2
2 | Copper
Copper | 20
20 |
CTSS-50
CTSS-75 | 5
7.5 | 240
240 | 25
40 | 23/4
23/4 | Stainless Steel #304
Stainless Steel #304 | 20
20 |
CTT-50
CTT-75 | 5
7.5 | 240
240 | 44
44 | 11/2
21/2 | Titanium
Titanium | 20
20 |
CTAC-50
CTAC-75 | 5
7.5 | 240
240 | 25
40 | 23/4
23/4 | Carp. Stainless #20*
Carp. Stainless #20* | 20
20 |
*Carpenter Stainless No. 20-CB-3
Also available with Titanium sheath. Contact OMEGALUX for availability
|
|
|
|
|
|
† Price are shown in RMB.
|
|
|
|
|
| |
|
